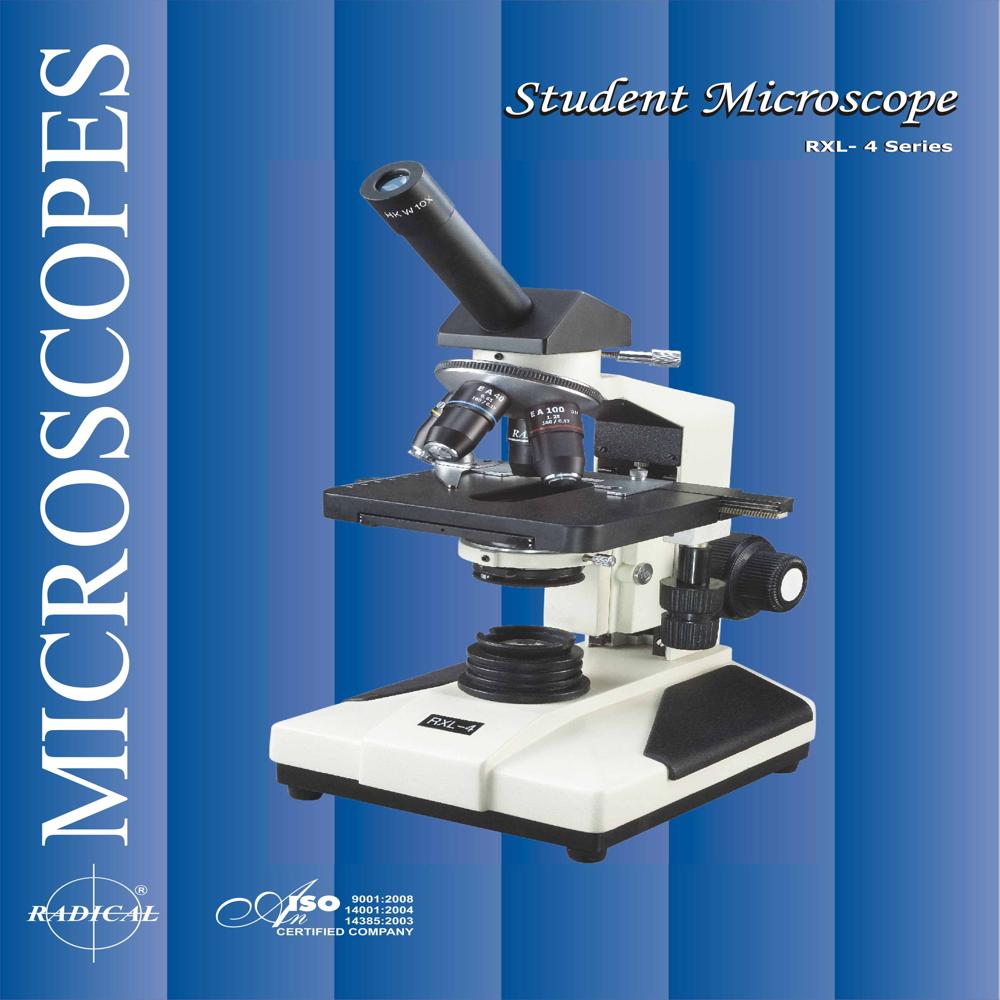

Product Description

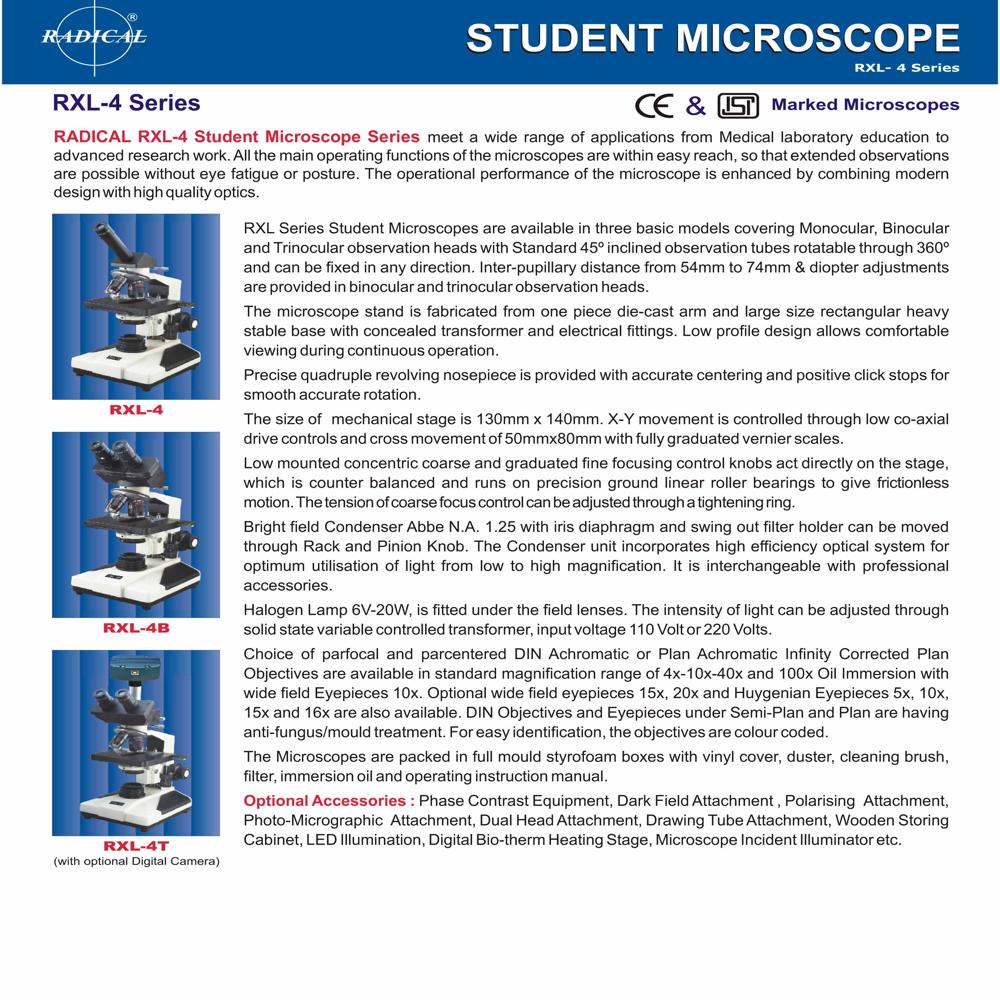

RXL-4 Series Student Microscopes are available in three basic models covering Monocular, Binocular and Trinocular observation heads with Standard 45 inclined observation tubes rotatable through 360 and can be fixed in any direction. Inter-pupillary distance from 54mm to 74mm & diopter adjustments are provided in binocular and trinocular observation heads.
The microscope stand is fabricated from one piece die-cast arm and large size rectangular heavy stable base with concealed transformer and electrical fittings. Low profile design allows comfortable viewing during continuous operation.
Precise quadruple revolving nosepiece is provided with accurate centering and positive click stops for smooth accurate rotation.
The size of mechanical stage is 130mm x 140mm. X-Y movement is controlled through low co-axial drive controls and cross movement of 50mmx80mm with fully graduated vernier scales.
Low mounted concentric coarse and graduated fine focusing control knobs act directly on the stage, which is counter balanced and runs on precision ground linear roller bearings to give frictionless motion. The tension of coarse focus control can be adjusted through a tightening ring.
Bright field Condenser Abbe N.A. 1.25 with iris diaphragm and swing out filter holder can be moved through Rack and Pinion Knob. The Condenser unit incorporates high efficiency optical system for optimum utilisation of light from low to high magnification. It is interchangeable with professional accessories.
Halogen Lamp 6V-20W, is fitted under the field lenses. The intensity of light can be adjusted through solid state variable controlled transformer, input voltage 110 Volt or 220 Volts.
Choice of parfocal and parcentered DIN Achromatic or Plan Achromatic Infinity Corrected Plan Objectives are available in standard magnification range of 4x-10x-40x and 100x Oil Immersion with wide field Eyepieces 10x. Optional wide field eyepieces 15x, 20x and Huygenian Eyepieces 5x, 10x, 15x and 16x are also available. DIN Objectives and Eyepieces under Semi-Plan and Plan are having anti-fungus/mould treatment. For easy identification, the objectives are colour coded.
The Microscopes are packed in full mould styrofoam boxes with vinyl cover, duster, cleaning brush, filter, immersion oil and operating instruction manual.
Optional Accessories : Phase Contrast Equipment, Dark Field Attachment , Polarising Attachment, Photo-Micrographic Attachment, Dual Head Attachment, Drawing Tube Attachment, Wooden Storing Cabinet, LED Illumination, Digital Bio-therm Heating Stage, Microscope Incident Illuminator etc.
Advanced Magnification for Industrial ApplicationsOffering magnification from 4x to 100x, the RXL-4 enables meticulous analysis vital for quality control in laboratories and industrial settings. Its high precision lenses guarantee clear and accurate visuals, contributing to reliable measurement and testing results.
Durability Meets User-Friendly DesignCrafted from robust die-cast material, this microscope is built to withstand demanding environments. The monocular drawtube and semi-automatic operation simplify usage for technicians, making it a worthy investment for busy facilities requiring consistent performance.
Flexible Illumination Options for Optimal ViewingEquipped with both halogen and LED illumination systems, the RXL-4 adapts to varying sample requirements and ambient light conditions. This flexibility ensures accurate observation, improving workflow efficiency in industrial testing applications.
FAQ's of Coaxial Microscope RXL-4:
Q: How is the Coaxial Microscope RXL-4 operated in industrial environments?
A: The microscope features semi-automatic controls, allowing users to efficiently adjust magnification and illumination settings for streamlined workflows in industrial testing and measurement applications.
Q: What are the benefits of halogen and LED illumination in the RXL-4?
A: With dual illumination options, the microscope provides adaptable lighting for various specimen types, ensuring clear visualization and comprehensive analysis across shifting industrial conditions.
Q: When should the RXL-4's 4x-100x magnification range be utilized?
A: This broad magnification range is ideal for tasks like observing fine surface details or conducting quality inspections, making it suitable for both preliminary and advanced measurement processes.
Q: Where can the Coaxial Microscope RXL-4 be sourced in India?
A: The microscope is available through authorized distributors, exporters, manufacturers, suppliers, and wholesalers across India, catering to industrial and laboratory requirements.
Q: What makes the RXL-4 durable for industrial use?
A: Constructed with a die-cast metal body, the microscope resists wear in demanding environments, ensuring longevity and consistent performance during frequent use.
Q: How does the monocular eyepiece tube enhance user experience?
A: The monocular design simplifies observation and handling, making it easy for technicians to conduct routine testing and measurement with minimal training.
Q: What industries commonly benefit from using the RXL-4 microscope?
A: Industries engaged in quality control, testing, research, and measurement, such as manufacturing, metallurgy, and material science, directly benefit from its precision and reliable build.
