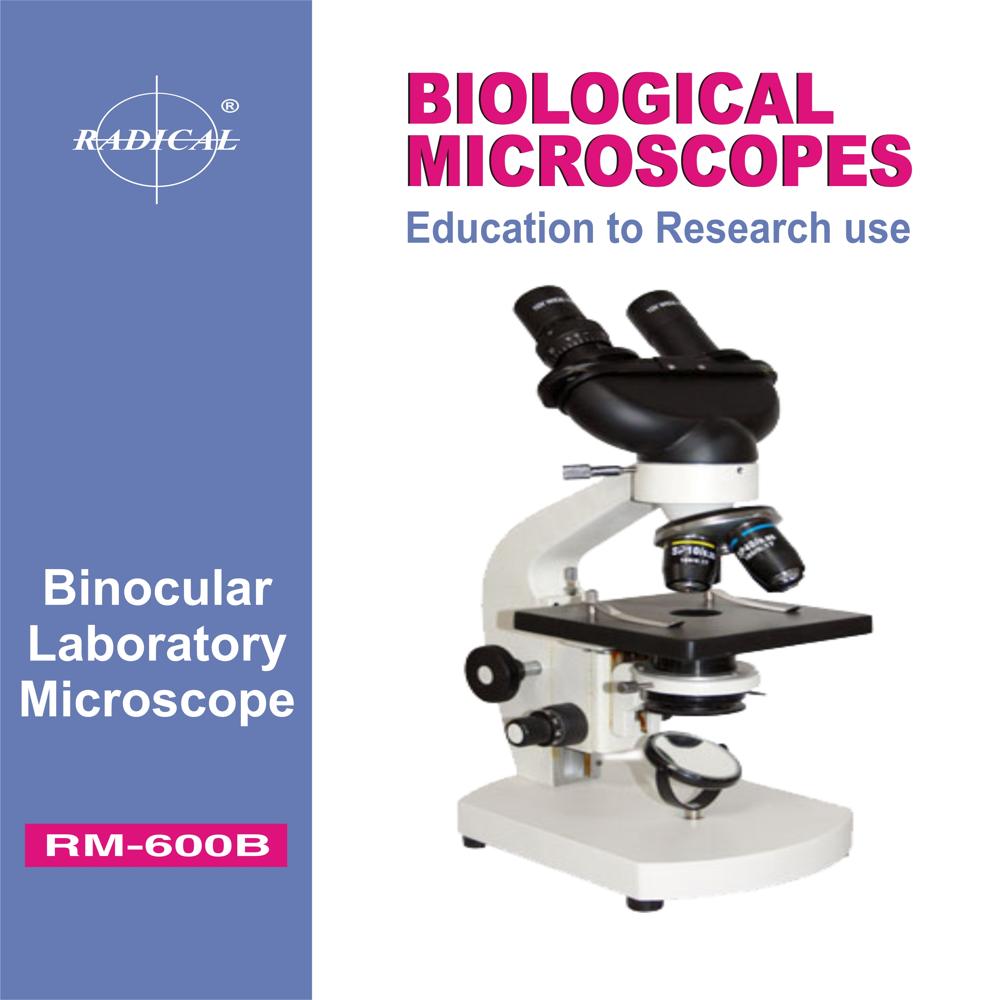

RM-600B RADICAL BINOCULAR LABORATORY MICROSCOPE

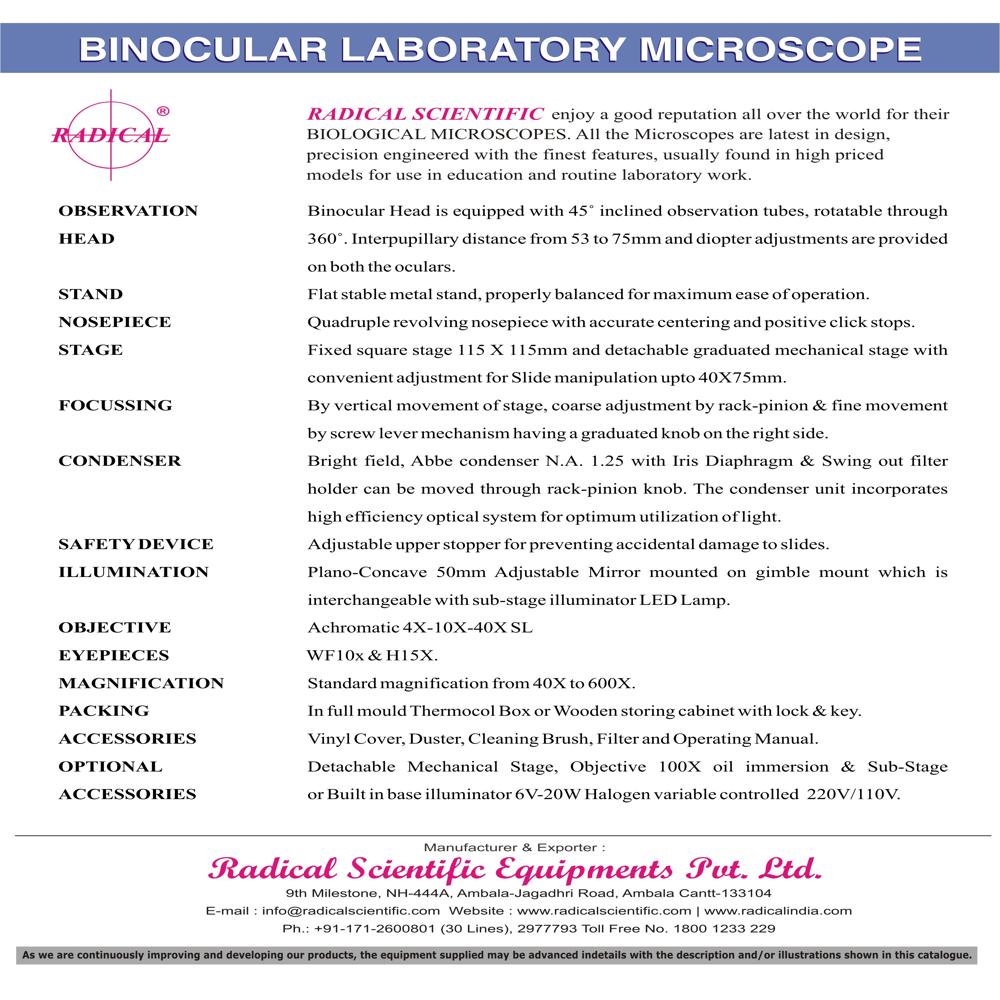

Binocular observation head inclined at 45 rotatable through 360 optical tube length 160mm quadruple nose piece having positive click stops precise graduated slow motion knobs and separate coarse motion knobs fixed square stage 115x115mm with detachable graduated mechanical stage condenser unit having rack-pinion movement with Iris diaphragm and filter holder adjustable 50m Plano Concave mirror interchangeable with substage illuminator 220110V15W Packed in thermocoal box with vinyl cover duster cleaning brush filter etc.
Features :-
Ach Objectives 4x10x and 40x SL
Huy Eyepieces 10x and 16x Paired
Magnification 25x to 640x
Exceptional Optical PerformanceEquipped with achromatic objectives and wide-field eyepieces, the RM-600B delivers sharp, high-contrast images across its full magnification range. Advanced focusing mechanisms provide both coarse and fine adjustments, suitable for detailed specimen examination and routine classroom use.
User-Friendly and Adaptable DesignDesigned for convenience, the binocular drawtube is inclined at 45 and rotates 360, accommodating prolonged use with reduced neck and eye strain. The spacious mechanical stage and precise X-Y movement facilitate accurate specimen navigation for education and research applications.
Reliable Illumination and DurabilityBuilt-in LED lighting, complete with intensity control, ensures clear views even in low-light environments. Manufactured from robust MS (mild steel) and supplied with essential spare parts, the microscope offers dependable performance for schools, colleges, and laboratories.
FAQs of Laboratory Microscope RM-600B:
Q: How do I adjust the magnification on the RM-600B microscope?
A: To adjust the magnification, select the appropriate objective lens (4x, 10x, 40x [S], or 100x oil immersion) on the rotating nosepiece and use the wide-field 10x eyepieces. Combine different objectives with the eyepieces to achieve total magnification levels between 40x and 1000x.
Q: What are the suitable operating conditions for this microscope?
A: The RM-600B operates best between 10C and 40C with a power supply of AC 220V/50Hz. Ensure it is used within these parameters for optimum performance and to maintain equipment longevity.
Q: When should I use the oil immersion objective?
A: The 100x (oil immersion) objective is used for studying samples requiring higher resolution, such as detailed cellular structures. Apply immersion oil between the slide and the lens to enhance clarity and resolution at this magnification.
Q: Where is the RM-600B microscope commonly utilized?
A: This microscope is widely used in school and college laboratories as well as research institutions due to its versatility, durability, and accurate focusing mechanisms.
Q: What is the process for adjusting the focus on this microscope?
A: The RM-600B features both coarse (15mm range) and fine (0.002mm range) coaxial focusing. Use the coarse knob for initial focusing and the fine adjustment to sharpen image details.
Q: How can built-in LED illumination benefit laboratory work?
A: The integrated LED light source, with adjustable brightness and intensity controller, offers uniformly illuminated fields of view, facilitating detailed sample analysis even in low-light settings.
Q: What are the main benefits of the binocular 360 rotatable view head?
A: The binocular head, inclined at 45 and rotatable 360, promotes comfortable extended use and flexibility for multiple users, reducing fatigue during lengthy observation sessions.
