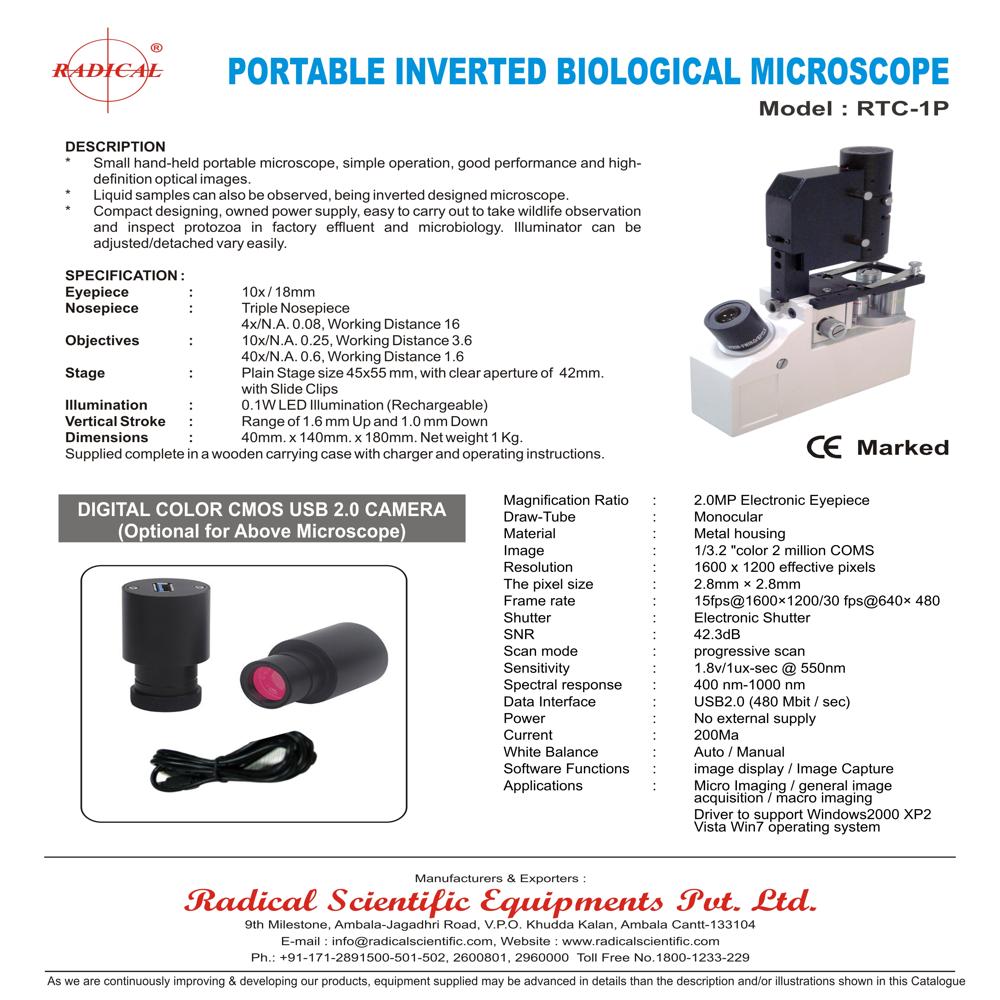

Product Description
Small hand-held portable microscope, simple operation, good performance and high-definition optical images. Liquid samples can also be observed, being inverted designed microscope. Compact designing, owned power supply, easy to carry out to take wildlife observation and inspect protozoa in factory effluent and microbiology illuminator can be adjusted detached very easily.
Eyepiece - 10x/18Nosepiece - Triple NosepieceObjectives - 4x/N.A.0.08, Working Distance 1610x/N.A.0.25, Working Distance 3.6
40x/N.A.0.0.6, Working Distance 1.6
Stage - Plain stage size 45x55mm, with clear aperture of 42mm.with slide clipsIllumination - 0.1W LED Illumination(Rechargeable)Range of vertical Stroke - 1.6mm. Upand 1.0mm DownDimensions - 40mm.x140mm.x180mm.Netweght 1kg. Supplied complete in a wooden carrying case with charger and operating instructions. Efficient and Portable Microscope DesignWith a compact monocular design, the RTC-1P is ideal for tissue culture observation in various environments. The rechargeable LED illumination allows for extended use, providing flexibility for both laboratory research and field studies. Its user-friendly assembly and operation make it well-suited for both beginners and professionals.
Clear Imaging for Biological ApplicationsThe microscope is equipped with 10x/18 eyepieces, ensuring detailed visualization of biological specimens. Its inverted optics are optimized for tissue culture work, enabling easy observation of samples in culture dishes. The RTC-1P delivers accurate results for cell analysis and educational demonstrations.
FAQ's of Portable Inverted Tissue Culture Microscoe RTC-1P:
Q: How is the RTC-1P microscope used for tissue culture analysis?
A: The RTC-1P is specifically designed with inverted optics, allowing users to observe cells directly through the bottom of culture dishes. Its 10x/18 eyepieces provide optimal magnification for detailed biological studies and routine cell monitoring.
Q: What are the main benefits of the 0.1W LED illumination?
A: The 0.1W LED illumination is rechargeable and energy-efficient, enabling prolonged usage without frequent battery replacements. It delivers consistent brightness, ensuring specimen clarity and portability for fieldwork or locations with limited power access.
Q: Where are RTC-1P microscopes typically distributed from in India?
A: The RTC-1P microscope is supplied, manufactured, exported, and wholesaled by various distributors and suppliers throughout India, ensuring wide national availability for laboratories, universities, and research institutions.
Q: When is monocular drawtube design advantageous in microscopy?
A: Monocular drawtube designs are beneficial for straightforward observations and educational purposes, as they reduce complexity, simplify alignment, and make the microscope more portable and cost-effective.
Q: What process is involved in setting up the RTC-1P for use?
A: To set up the RTC-1P, simply place the specimen dish on the stage, adjust the monocular eyepiece for comfortable viewing, and activate the LED illumination. Focusing is achieved with manual controls, making the process intuitive for users.
Q: How can the RTC-1P improve laboratory workflow?
A: Its portable structure and rechargeable illumination help streamline work, allowing mobility between multiple workstations. The clear imaging supports efficient documentation and rapid sample analysis during experiments.
