Product Description

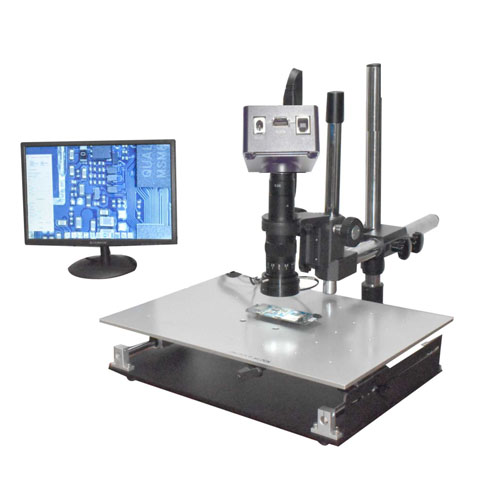

PCB Inspection Video Stereoscope Microscope has zoom that allows to make the magnification of high quality. It can make vivid and clear images throughout the range of zoom. It utilises Vision Engineering's patented Dynascope technology and boasts of user advanced ergonomics. It can also remove the need for restrictive eyepieces. It has been made to significantly boost the head freedom as well as eye relief. Also, it can reduce the operator stress as well as fatigue caused by lengthy usage of the microscope.
High-Resolution ImagingCapture detailed images and videos of printed circuit boards with a 2 MP digital sensor. The microscope delivers clear, achromatic visual output, making defect identification faster and more precise. Both still images and videos are saved in JPEG format for easy documentation and sharing.
Optimized for PCB InspectionEngineered for rigorous PCB inspection workflows, the RPCB-45 offers 45x magnification with achromatic objectives. Its sturdy dia casting body and LED illumination support uninterrupted use in a variety of inspection settings, from manufacturing floors to research labs.
Manual Operation and ReliabilityThe device operates manually and is equipped with a monocular view head, ensuring simple usage and reliable performance. Its consistent LED lighting and robust adjustment mechanisms facilitate efficient and accurate inspection, even during prolonged sessions.
FAQ's of PCB Inspection Video Stereoscope Microscope RPCB-45:
Q: How do I use the RPCB-45 Video Stereoscope Microscope for PCB inspection?
A: Place your PCB sample under the monocular view head, adjust the focus manually, and activate the LED illumination for clear visual inspection. Use the 45x magnification to closely examine board components and capture images or video with the built-in 2 MP sensor.
Q: What benefits does the 2 MP video capture resolution offer during PCB inspection?
A: The 2 MP resolution provides detailed, high-quality imagery, enabling technicians to identify defects and anomalies on printed circuit boards with precision. This aids in documentation and enhances the reliability of quality control processes.
Q: When is it most suitable to use the RPCB-45 microscope in an industrial setting?
A: It is ideal for use during routine PCB inspection, failure analysis, quality control, and research and development phases. The microscope can be integrated into manufacturing workflows or utilized in laboratory environments for detailed analysis.
Q: Where can the RPCB-45 Video Microscope be installed and operated?
A: This microscope is designed to be used in industrial, laboratory, manufacturing, and research facilities, especially those dealing with electronics and PCB assemblies. Its robust build and manual operation support varied workspace environments.
Q: What is the process for capturing still images and video with the RPCB-45?
A: Once the sample is placed and illuminated under the microscope, use the built-in controls to capture still images or record video at 2 MP resolution. The outputs are stored in JPEG format for convenient documentation and reporting.
Q: Why is LED illumination advantageous in this microscope model?
A: LED lighting ensures consistent and bright illumination of PCB samples without excessive heat, providing clear visualization for extended inspection sessions. It improves image and video clarity and supports stable operation during use.
