Product Description

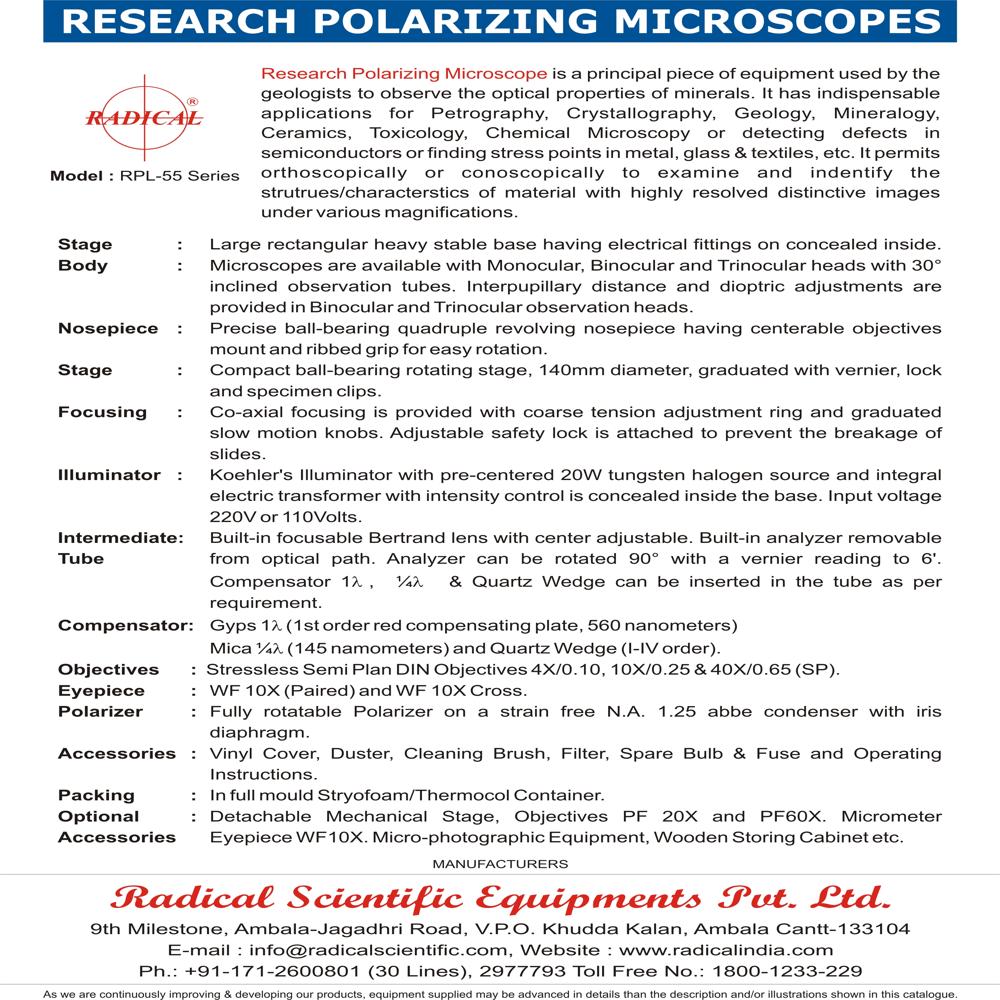

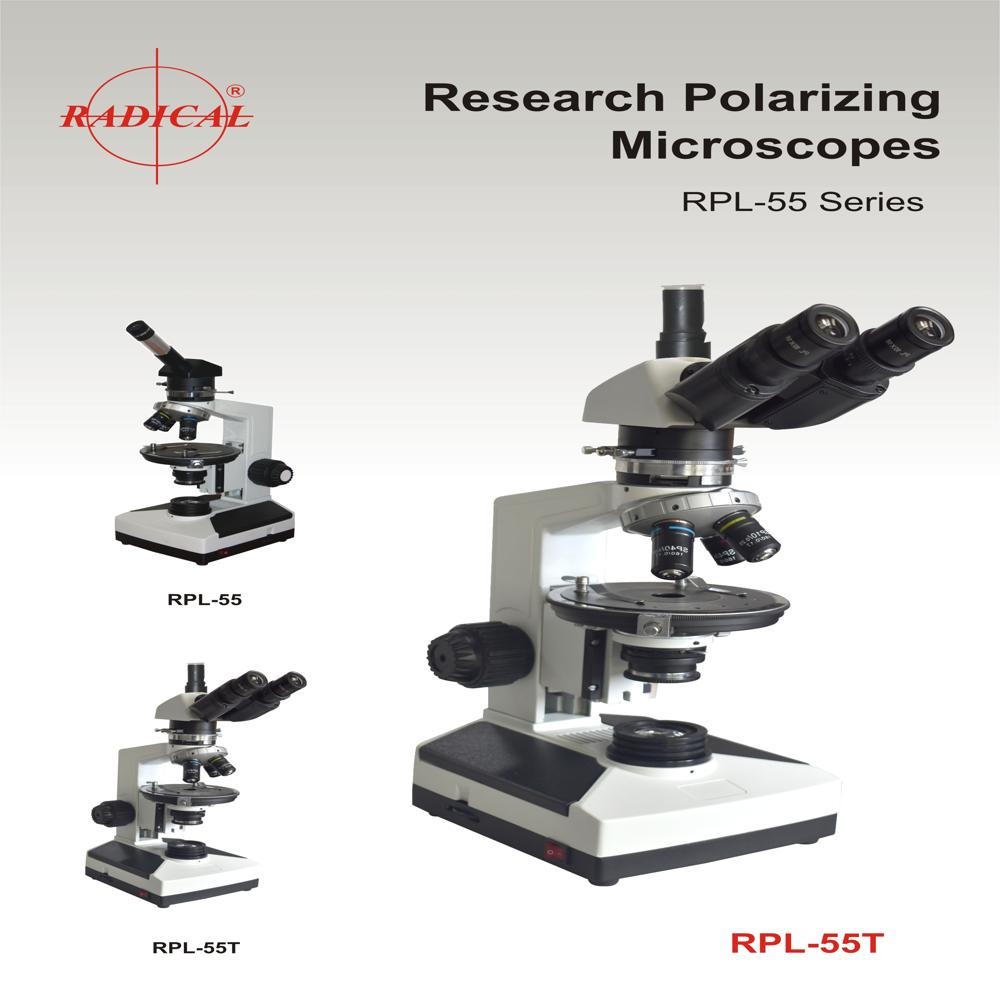

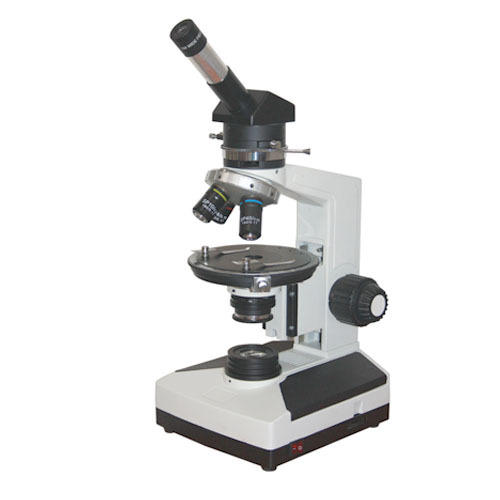

Research Polarizing Microscope RPL-55T is a principal piece of equipment used by the geologists to observe the optical properties of minerals. It has indispensable applications for Petrography, Crystallography, Geology, Mineralogy, Ceramics, Toxicology, Chemical Microscopy or detecting defects in semiconductors or finding stress points in metal, glass & textiles, etc. It permits orthoscopically or conoscopically to examine and identify the strutrues/characterstics of material with highly resolved distinctive images under various magnifications.
Exceptional Optical PerformanceThe RPL-55T microscope stands out for its paired WF 10X eyepieces with a 20mm field of view and high-quality DIN Achromatic objectives. This combination delivers precise, clear images vital for advanced geological or petrographic research, capturing fine structural details in rock and mineral samples.
Flexible Illumination OptionsWith both Halogen and LED light sources, users can select optimal lighting for their sample type. The transmitted illumination system, paired with a centerable Abbe condenser, ensures bright, evenly distributed light for enhanced contrast and resolution during analysis.
Durability and Ergonomic DesignCrafted from die-cast material and finished in off-white, the RPL-55T offers robustness and visual appeal. Its adjustable interpupillary distance and manual operation ensure comfortable use over extended periods, making it ideal for laboratories, educational settings, and professional research institutes.
FAQ's of Trinocular Polarizing Microscope RPL-55T:
Q: How does the RPL-55T microscope benefit geological and petrography studies?
A: The RPL-55T provides high-resolution imaging with DIN Achromatic objectives and a polarizing setup, allowing detailed examination of rock and mineral structures crucial for research and educational purposes in geology and petrography.
Q: What is the process for adjusting focus on this microscope?
A: The microscope features fine adjustment of 2.5m per division and a coarse adjustment stroke range of 30mm. Users begin with coarse focusing, then refine the image with fine adjustments for precision observation.
Q: When should I use Halogen versus LED illumination?
A: Halogen lights are recommended for examining specimens requiring higher color accuracy, while LEDs are preferable for energy efficiency and lower heat, especially during extended study sessions.
Q: Where can the RPL-55T be used effectively?
A: This microscope is suitable for research labs, universities, geological institutions, and industries specializing in minerals, rocks, and fibers, offering reliable performance in educational and professional settings across India.
Q: What is the advantage of the parfocal (45mm) design in the RPL-55T?
A: Parfocal design maintains the focus point when switching objectives, reducing the need for frequent readjustment and streamlining observation processes during microscopy sessions.
Q: How is the microscope stored safely?
A: The RPL-55T is shipped with an unbreakable container, ensuring secure storage and transport, which helps protect sensitive optical components and maintains instrument integrity.
Q: What manual features enhance user control and comfort?
A: Manual operation, flexible interpupillary distance adjustment (48mm-75mm), and ergonomic controls offer intuitive handling, improving comfort for users during prolonged observations.
