Product Description

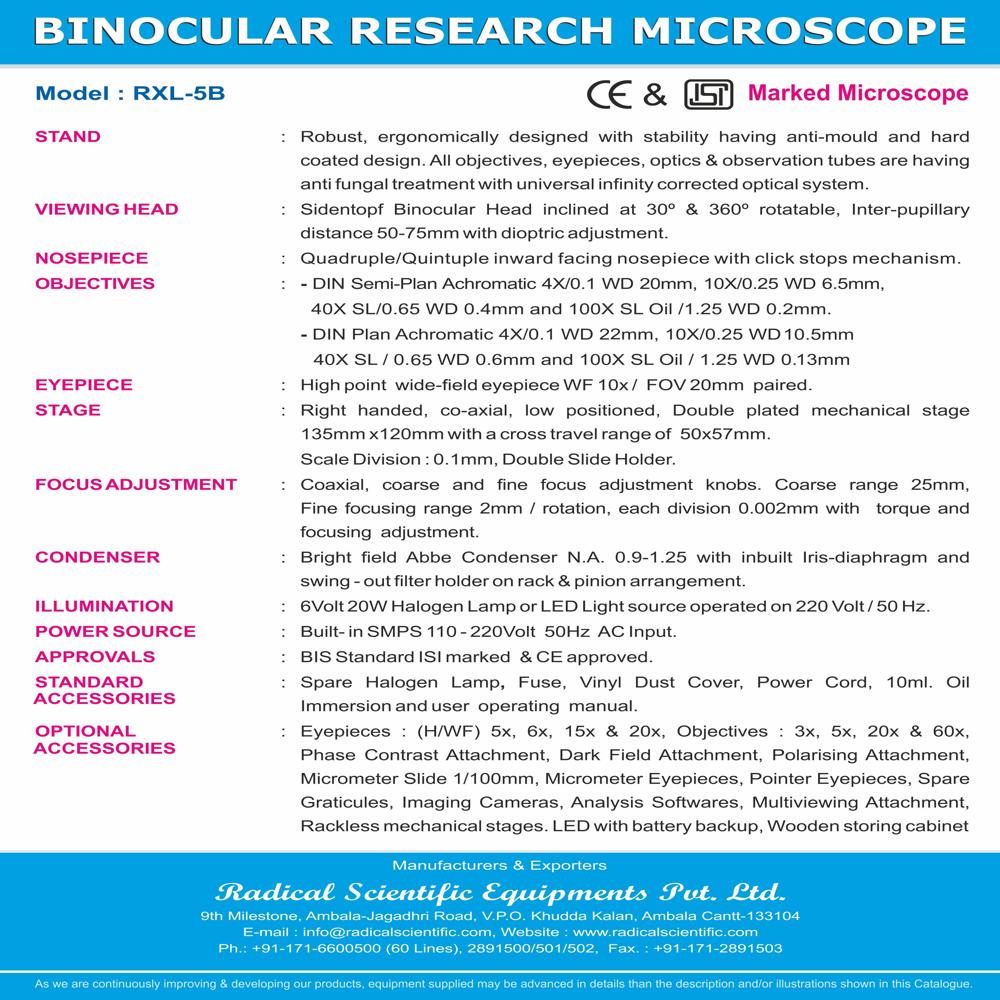

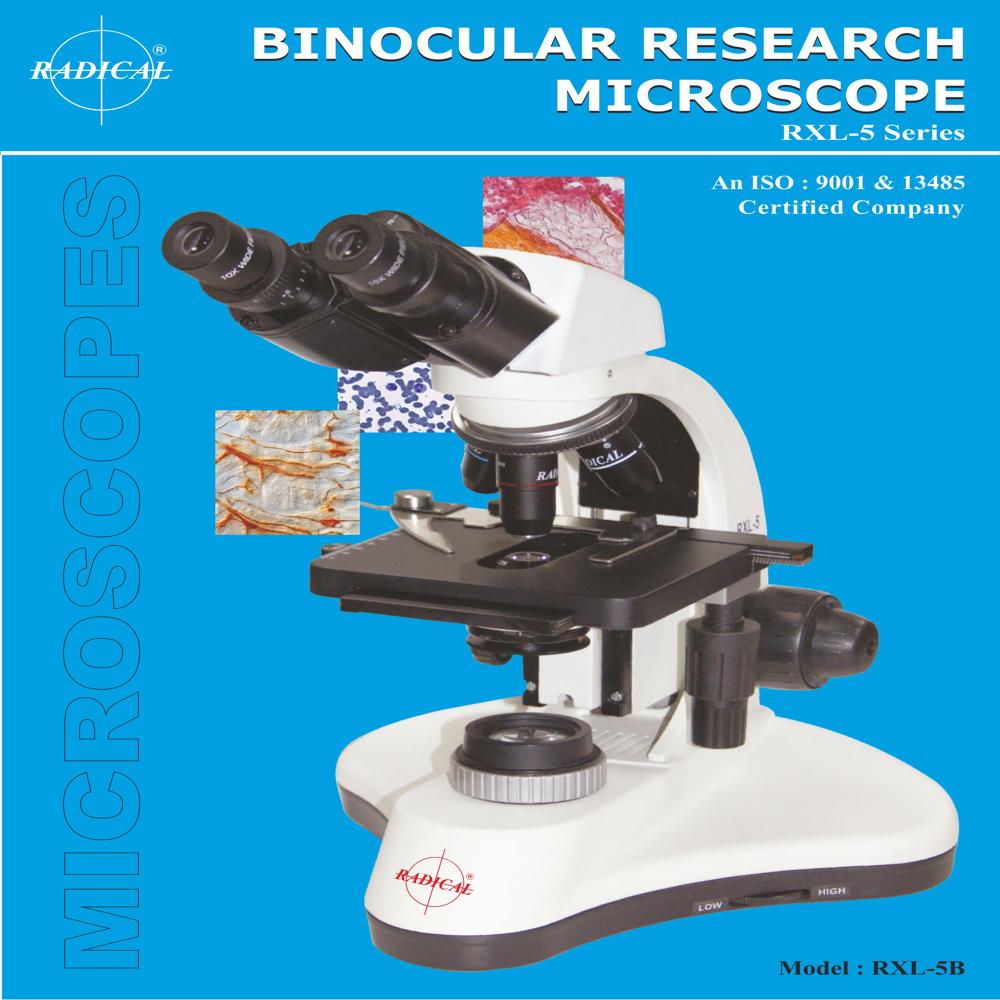

Binocular Research Microscope ModelRXL-5B
Stand - Robust, ergonomically designed with stability having anti-mould and hard coated design. All objectives, eyepieces, optics & observation tubes are having anti fungal treatment with universal infinity corrected optical system.
Viewing Head - Sidentopf Binocular Head inclined at 30 & 360 rotatable, Inter-pupillary distance 50-75mm with dioptric adjustment.
Nosepiece - Quadruple/Quintuple inward facing nosepiece with click stops mechanism.
Objectives - DIN Semi-Plan Achromatic 4X/0.1 WD 20mm, 10X/0.25 WD 6.5mm, 40X SL/0.65 WD 0.4mm and 100X SL Oil /1.25 WD 0.2mm.- DIN Plan Achromatic 4X/0.1 WD 20mm, 10X/0.25 WD 6.5mm, 40X SL / 0.65 WD 0.6mm and 100X SL Oil / 1.25 WD 0.2mm.
Eyepieces - High point wide-field eyepiece WF 10x / FOV 20mm paired.
Stage - Right handed, co-axial, low positioned, Double plated mechanical stage 135mm x120mm with a cross travel range of 50x57mm. Scale Division : 0.1mm, Double Slide Holder.
Focus Adjustment - Coaxial, coarse and fine focus adjustment knobs. Coarse range 25mm, Fine focusing range 2mm / rotation, each division 0.002mm with torque and focusing adjustment.
Condenser - Bright field Abbe Condenser N.A. 0.9-1.25 with inbuilt Iris-diaphragm and swing - out filter holder on rack & pinion arrangement.
Illumination - 6Volt 20W Halogen Lamp or LED Light source operated on 220 Volt / 50 Hz.
Power Source - Built- in SMPS 110 - 220Volt 50Hz AC Input.
Approvals - BIS Standard ISI marked & CE approved.
Standard Accessories - Spare Halogen Lamp, Fuse, Vinyl Dust Cover, Power Cord, 10ml. Oil Immersion and user operating manual.
Optional Accessories - Eyepieces : (H/WF) 5x, 6x, 15x & 20x, Objectives : 3x, 5x, 20x & 60x, Phase Contrast Attachment, Dark Field Attachment, Polarising Attachment, Micrometer Slide 1/100mm, Micrometer Eyepieces, Pointer Eyepieces, Spare Graticules, Imaging Cameras, Analysis Softwares, Multiviewing Attachment, Rackless mechanical stages. LED with battery backup, Wooden storing cabinet
Product details
|
Objectives
|
10X/0.25 WD 6.5mm, 40X SL/0.65 WD 0.4mm
|
|
Optional Accessories
|
Eyepieces (H/WF) 5x, 6x, 15x & 20x
|
|
Power
|
Built- in SMPS 110 - 220 Volt 50 Hz AC Input.
|
|
Viewing Head
|
30-360 deg
|
|
Is It Portable
|
Non Portable
|
|
Eyepieces
|
wf 10x
|
|
Illumination
|
6Volt 20W Halogen
|
Advanced Optical PerformanceThe RXL-5B microscope offers sharp and bright imaging through its high point 10X eyepieces and efficient oil-immersion compatible condenser (NA 0.9-1.25). The wide 22mm field of view is perfect for observing detailed cellular structures, making it a key tool for research professionals who require reliable and enhanced optical clarity.
Precision Adjustment MechanismWith a coarse adjustment range of 25mm and a fine adjustment range of 2mm, this microscope provides users with the capability to make both broad and finely tuned focus changes. This dual focusing system allows for seamless transitions between varying specimen thicknesses and ensures clarity even at high magnifications.
Robust and Convenient DesignManufactured from sturdy die-cast material, the RXL-5B is built to withstand routine laboratory handling. The 135mm x 120mm square working stage provides ample space for sample manipulation, and the illumination system offers flexibility, ensuring optimal lighting for diverse research needs.
FAQs of Binocular Research Microscope RXL-5B:
Q: How do you operate the Binocular Research Microscope RXL-5B for research applications?
A: To operate the RXL-5B, power it using the built-in SMPS compatible with 110V220V, select your preferred illumination (Halogen or LED), place the specimen on the 135mm x 120mm stage, and use the coarse and fine adjustment knobs to bring the sample into clear focus using the binocular eyepieces.
Q: What are the key benefits of using this microscope in research and laboratory environments?
A: The RXL-5B offers superior optical clarity with high point 10X FOV 22mm eyepieces, ergonomic binocular viewing, a robust die-cast body, adjustable illumination, and finely controlled focusing. These features collectively enhance efficiency, accuracy, and comfort during extended use in professional research settings.
Q: When should I use the coarse versus the fine adjustment on this microscope?
A: Use the coarse adjustment (25mm range) to rapidly bring your specimen into general focus. Once the image is nearly sharp, switch to the fine adjustment (2mm range) to achieve precise, clear details, especially when using higher magnifications.
Q: Where can this microscope be supplied or shipped from in India?
A: The RXL-5B can be acquired across India through authorized distributors, exporters, manufacturers, suppliers, and wholesalers. Check with local laboratory equipment suppliers for availability and support.
Q: What process should be followed to switch from Halogen to LED illumination?
A: To switch between Halogen and LED, use the built-in selector on the microscopes illumination unit. Ensure the power is off before changing the light source to avoid electrical issues, then adjust intensity as needed for optimal viewing conditions.
Q: How does the built-in SMPS benefit users of the RXL-5B microscope?
A: The built-in SMPS (Switched Mode Power Supply) allows the microscope to operate efficiently on both 110V and 220V mains, ensuring reliable performance and compatibility in various laboratory settings without the need for external adapters.
