Product Description
Student Medical Microscope : We have marked a distinct position in this domain by manufacturing, exporting and supplying the finest quality Student Medical Microscope. Our offered microscope is outfitted with high power lenses that provide erect images with optimum stereoscopic effect and high resolution. This microscope is manufactured by utilizing supreme class components with the aid of latest technology under the guidance of our team of experts. Provided in several technical specifications to meet the application requirements of our customers, this Student Medical Microscope can be availed from us at rock bottom prices.

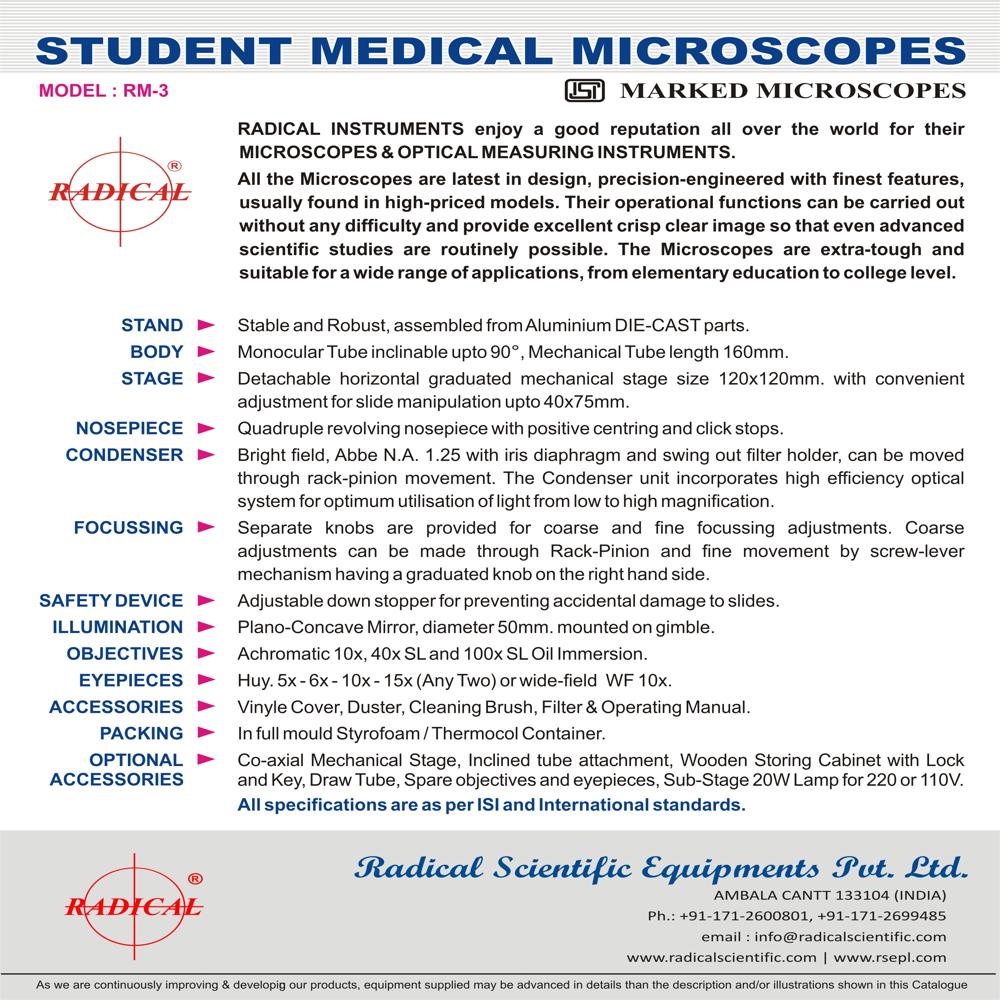

Features of Student Medical Microscope:
Student Medical Microscope
All the Microscopes are latest in design, precision-engineered with finest features, usually found in high-priced models. Their operational functions can be carried out without any difficulty and provide excellent crisp clear image so that even advanced scientific studies are routinely possible. The Microscopes are extra-tough and suitable for a wide range of applications, from elementary education to college level.
- Stand: Stable and Robust, assembled from Aluminium DIE-CAST parts.
- Nosepiece: Quadruple nosepiece with accurate centering and positive click stops
- Stage: Detachable horizontal graduated mechanical stage size 120 X 120mm with adjustment for slide manipulation upto 45 x 75mm.
- Illumination: Plano-Concave 50mm adjustable mirror on gimble mount. Interchangeable with sub-stage illuminator (Optional).
- Objectives: Achromatic 10X, 40XSL and 100 XSL Oil immersion.
- Eyepieces: Huygenian 10X-15X or WF 10X.
- Packing: The Microscopes are packed in full mould Styrofoam Boxes with Vinyl Cover, Duster, Cleaning Brush, Filter, Immersion Oil and Operating Manual.
Product details
| Objectives | Achromatic 10X, 40XSL and 100 XSL Oil immersion |
| Slide Manipulation | upto 45 x 75mm |
| Stage Size | 120 X 120 mm |
| Is It Portable | Portable |
| Eyepiece | Huygenian 10X-15X or WF 10X |
| Material | MS |

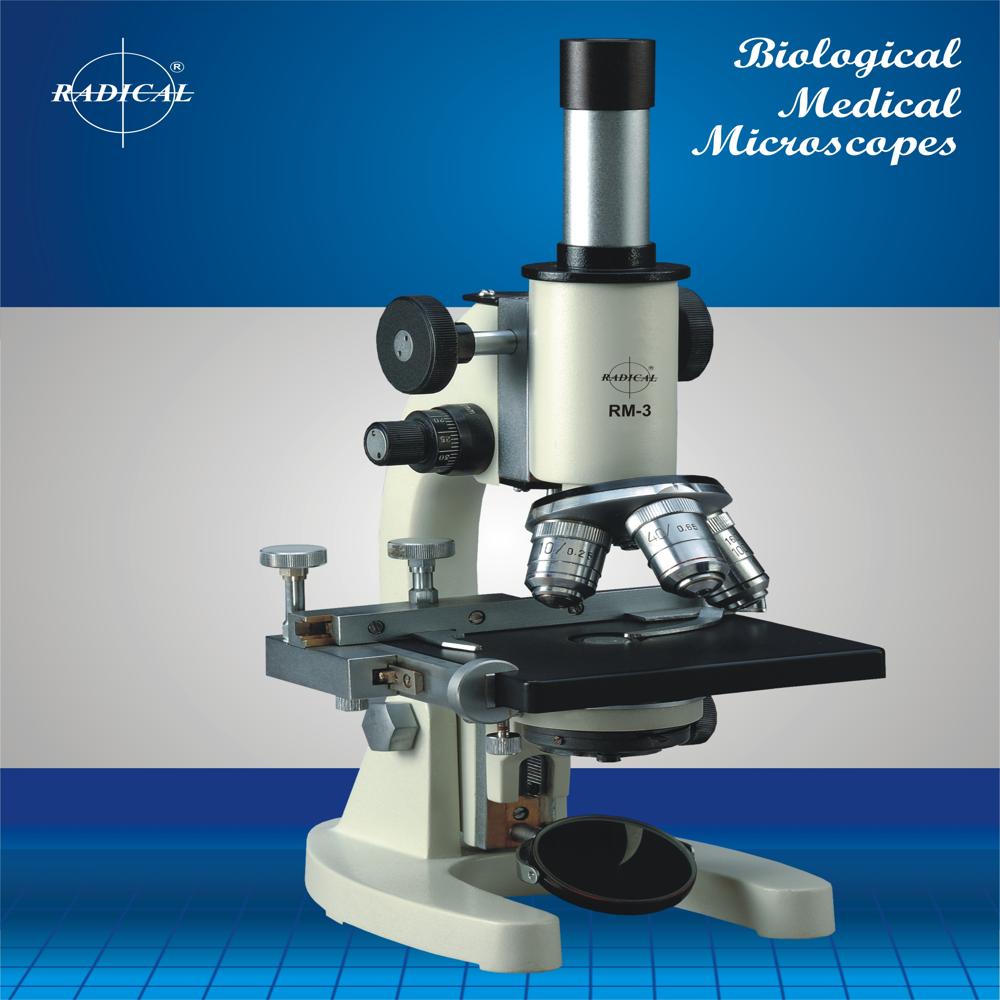

Optimized Viewing for Laboratory NeedsThe RM-3 Student Medical Microscope is engineered to support diverse laboratory experiments with its monocular view head and precision optical components. The unit's sturdy metal body in white and black ensures durability and professional aesthetics, making it suitable for regular academic, research, and diagnostic applications.
Advanced Illumination and Adjustment MechanismsThe integrated plane concave mirror and electric light source provide consistent illumination for observing biological samples. The microscope's rack-pinion coarse adjustment and screw-lever fine adjustment system allow students and professionals to achieve sharp focus easily, contributing to reliable and accurate analyses in the laboratory.
FAQ's of Student Medical Microscope RM-3:
Q: How is the Student Medical Microscope RM-3 installed and powered in laboratory settings?
A: The RM-3 microscope operates on a 220 Volt power supply and can be installed on any stable laboratory bench. Simply connect to the mains voltage and use the built-in light source or plane concave mirror for illumination during observations.
Q: What is the process for adjusting focus on the RM-3 microscope?
A: Coarse adjustments are made using the rack-pinion mechanism, allowing rapid focusing of the specimen. Fine movements are performed via the screw-lever mechanism with a graduated knob on the right side, ensuring precise focusing of biological samples.
Q: When should the plane concave mirror be used instead of the light source?
A: The plane concave mirror is ideal when natural or ambient light is available, providing clarity without electrical consumption. The built-in light source is recommended in lower-light conditions or when consistent illumination is required for detailed sample observation.
Q: Where can the RM-3 microscope be utilized?
A: This microscope is suitable for educational, medical, and research laboratories-supporting biological studies, clinical diagnostics, and student training. It is available across India through distributors, exporters, manufacturers, suppliers, and wholesalers.
Q: What are the main benefits of using the RM-3 Student Medical Microscope in academic laboratories?
A: Students and professionals benefit from its robust construction, clear optics using WF-10x eyepiece, precise focusing mechanisms, and versatile illumination options. These features foster efficient learning and accurate specimen analysis.
Q: How should you maintain and clean the monocular eyepiece and stage?
A: To ensure longevity, clean the eyepiece and working stage using a soft lens tissue or microfiber cloth. Avoid harsh chemicals; use appropriate lens cleaning solutions for optics to maintain clarity and prevent scratches.
