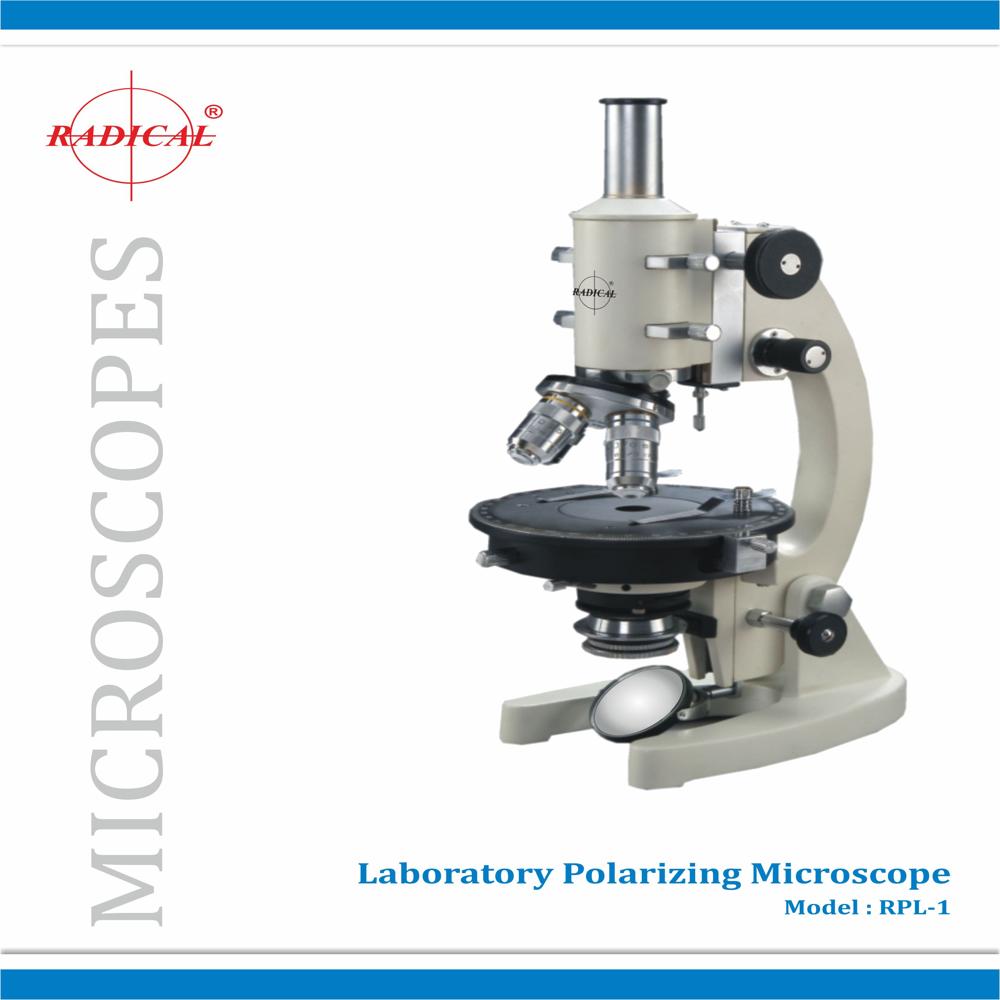

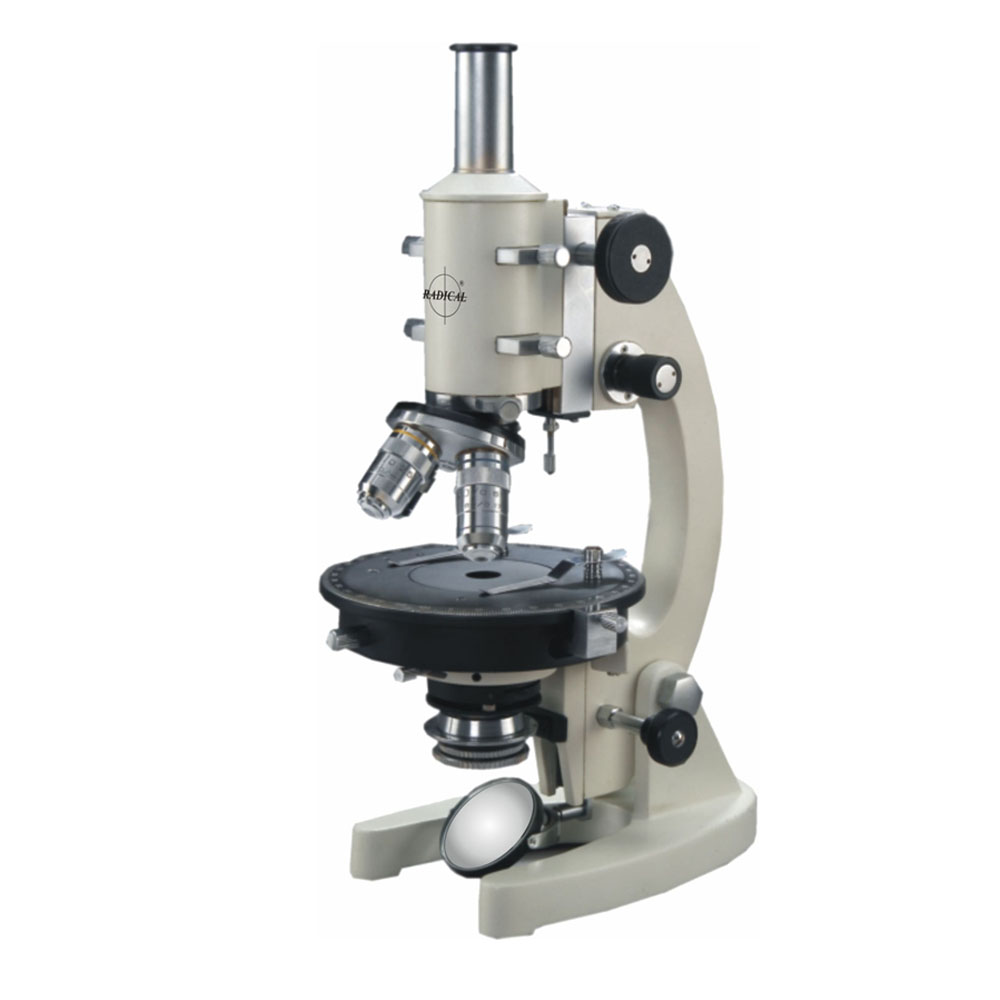

LABORATORY POLARIZING MICROSCOPE RPL-1

Name: LABORATORY POLARIZING MICROSCOPE RPL-1
Brand: RADICAL SCIENTIFIC EQUIPMENTS PVT. LTD.
Price: 17000.0 INR
Availability: InStock

17000.0 INR/Piece

Get a Price/Quote

Product Details:

Power 6 Volt (v)
Product Type Table Top
Color Off White
Focus System Separate knob coarse and fine focussing adjustments.
Voltage 110 Volt (v)
Weight 10 Kilograms (kg) Kilograms (kg)
Operate Method Manual
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

LABORATORY POLARIZING MICROSCOPE RPL-1 Price And Quantity

Price 17000.0 INR/Piece
Minimum Order Quantity 1 Piece

LABORATORY POLARIZING MICROSCOPE RPL-1 Product Specifications

Power 6 Volt (v)
Product Type Table Top
Illumination Halogen/LED
Objective Achromatic Achromatic 40X
Drawtube Monocular
Light Source LED/Halogen
Weight 10 Kilograms (kg) Kilograms (kg)
Theory Other
Voltage 110 Volt (v)
Focus System Separate knob coarse and fine focussing adjustments.
Color Off White
Focal Distance NA Millimeter (mm)
Condenser NA
Coarse Adjustment Range YES
Operate Method Manual
Usage Study of Rock and Minerals
Image Format JPEG
Material Die Cast
Eyepiece Tube Monocular
View Head Monocular
Eyepieces WF-10X
Fine Adjustment Range Adjustable
Magnification 400X
Interpupillary Distance NA Millimeter (mm)
Working Stage Large circular rotary stage, Dia. 140mm, 360 rotatable Square Millimeter (mm2)
Focus Range Rack Pinion Meter (m)

Product Description

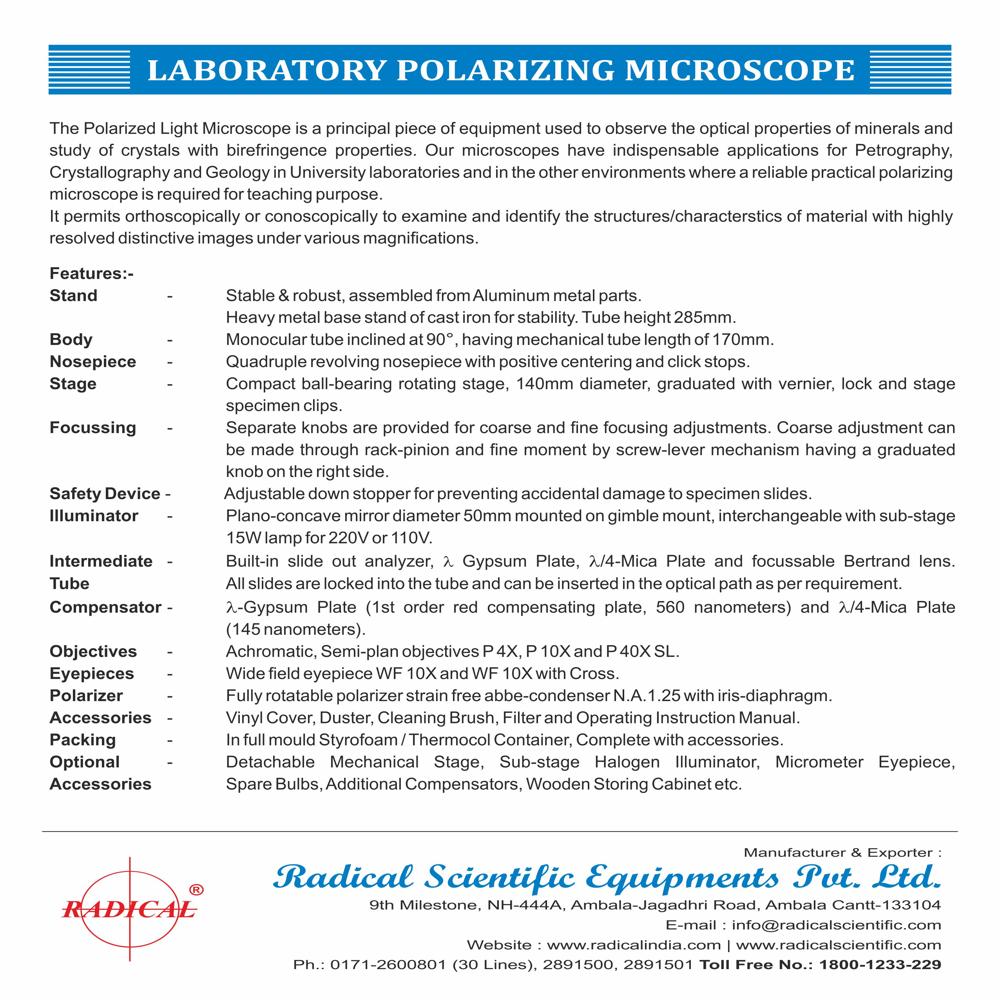

The Polarized Light Microscope RPL-1 is a principal piece of equipment used to observe the optical properties of minerals and study of crystals with birefringence properties. Our microscopes have indispensable applications for Petrography, Crystallography and Geology in University Laboratories and in other environments where a reliable practical polarizing microscope is required for teaching purposes.

Stage - Compact ball-bearing rotating stage, 140mm diameter, graduated with vernier, lock and stage specimen clips
Focussing - Separate knobs are provided for coarse and fine focussing adjustments.

Illuminator - Plano-concave mirror diameter 50mm mounted on gimble mount, interchangeable with sub-stage 15W lamp for 220V or 110V.

Intermediate Tube - Built-in slide out analyzer, -Gypsum Plate, /4-Mica Plate and focussable Bertrand Lens. All slides are locked into the tube and can be inserted in the optical path as per requirement.

Compensator - -Gypsum Plate (1st order red compensating plate, 560 nanometers) and /4-Mica Plate (145 nanometers).

Objectives - Achromatic, Semi-plan Objectives P-4x, P-10x and P-40x SL.
Eyepieces - Widefield Eyepiece WF-10x and WF-10x with Cross
Polarizer - Fully Rotatable Polarizer on strain free abbe-condenser N.A. 1.25 with iris-diaphragm
Optional Accessories - Detachable Mechanical Stage, Sub-stage Halogen Illuminator, Micrometer Eyepiece, Spare Bulbs, Additional Compensators, Wooden Storing Cabinet, etc.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Polarising Microscopes' category

Trinocular Polarising Microscope RPL-3T Price : 48500.0 INR/Piece Minimum Order Quantity : 1 Eyepiece Tube : RPL3T View Head : Trinocular Eyepieces : WF 10x Illumination : Halogen Drawtube : Trinocular Theory : Biological Microscope Condenser : NA Operate Method : Manual Usage : Study of Rock and Minerals Material : Dia Casting Product Type : Table Top Power : 20 Watt (w) Light Source : Halogen Objective Achromatic : 40x Application : Study of Rock and Minerals Color : Off White Voltage : 6 Volt (v) Magnification : 400X Coarse Adjustment Range : NA Weight : 10 Kilograms (kg) Fine Adjustment Range : NA Image Format : NA Frame Rate : NA Still Image Capture Resolution : NA Video Capture Resolution : NA Resolution : NA Sensor : NA Interface : NA

Send Inquiry

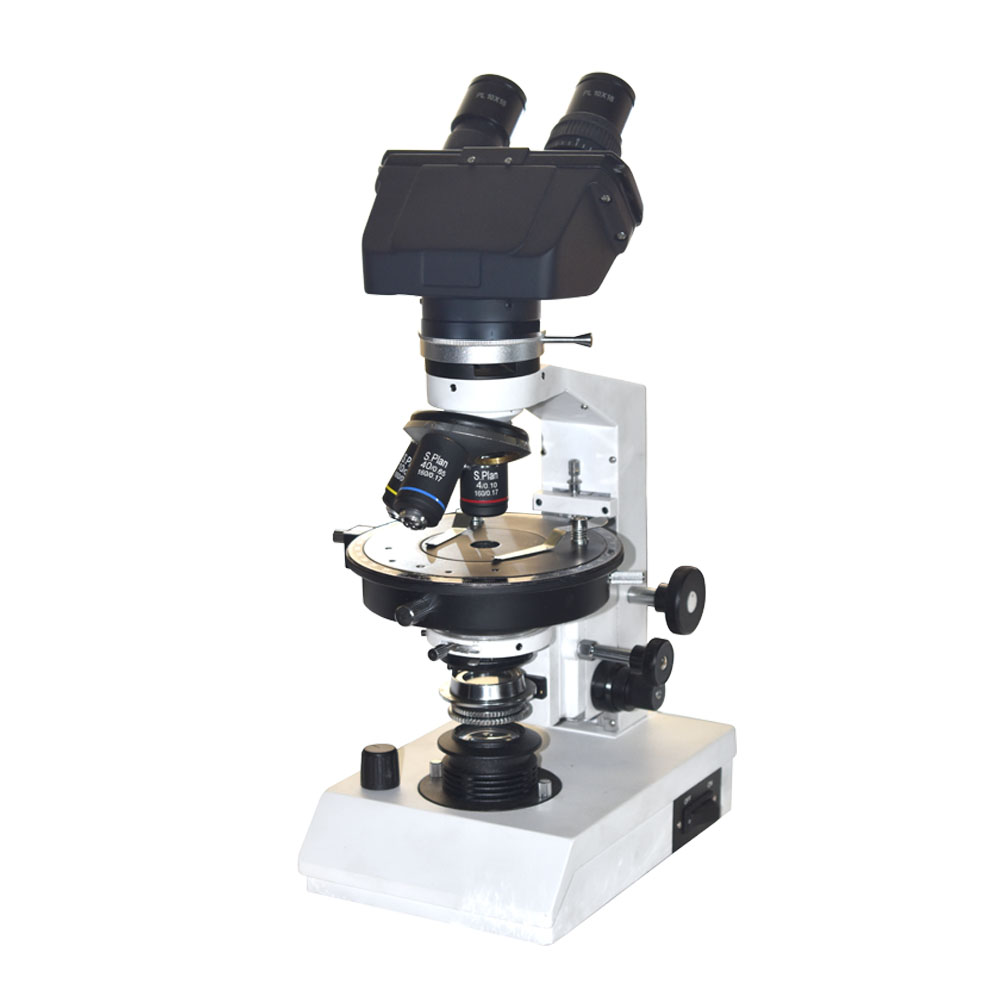

Advanced Polarizing Microscope RPL-3B Price : 42000.0 INR/Piece Minimum Order Quantity : 1 Eyepiece Tube : Binocular View Head : Binocular Eyepieces : WF 10x and WF 10x with Cross Illumination : Halogen/LED Drawtube : Binocular Theory : Other Condenser : Abbecondenser N.A.1.25 with irisdiaphragm Operate Method : Manual Usage : Optical Properties of Minerals & Geologists Material : Dia Casting Product Type : Table Top Power : Input voltage 220 or 110 Volts Watt (w) Light Source : Halogen/LED Objective Achromatic : 40x Application : Petrography, Crystallography. Geology or Finding Stress Points in Metal, Glass and Textiles Color : Off White Voltage : 110/220V Volt (v) Magnification : 40x400x Coarse Adjustment Range : Adjustable Rack & Pinion Fine Adjustment Range : NA Image Format : NA Classification : Manual Frame Rate : NA Still Image Capture Resolution : NA Video Capture Resolution : NA Resolution : NA Sensor : NA Interface : NA
