Product Description

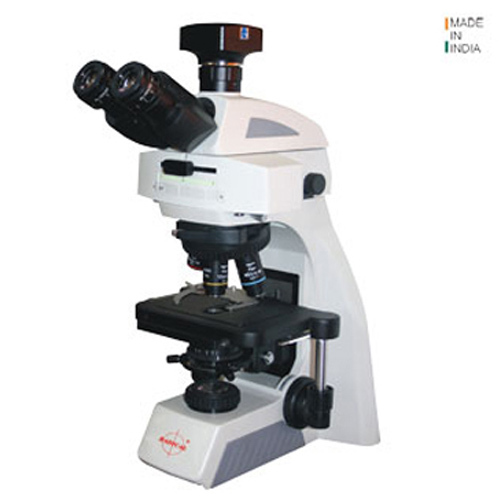

Upright Research Microscope RXLr-4NX series has been developed with long term use and great durability in mind. Microscope is easy to operate, robust and durable with infinity optics translating to excellent price/performance ratio meeting the demanding clinical needs. With quality optics microscope is suitable for brightfield, phase contrast, Darkfield & Floursecence techniques It is adapted to the most sophisticated environmental conditions in medical lab. | Body | Rugged, single die cast, ergonomic design, touch point treated with hook for power chord |
| Optical system | Universal infinite optical system (IOS), colour corrected (CCIS), anti-fungal, anti-bacterial coated (multi-layered hard coated) |
| Koehler`s Illumination | Koehler`s Halogen/LED, intensity adjustable, battery backup, auto cut-off |
| Viewing Head | Ergonomic siedentopf Binocular/Trinocular Head |
| Mechanical Stage | Rackless, refocusing, right/left hand control, hard coated surface, double layer, single/double slide holder, low position coaxial movement |
| Objectives | Japanese Infinity Semi Plan/Plan/Flotar/SAPO/APO objectives |
| Condenser | Abbe with iris diaphragm & filter slot brightfield, darkfield, phase contrast |
| Nosepiece | Quadruple/Quintuple with ball-bearing, slot for polarizer & analyzer, rubber/metal grip & click stop |
| Eyepiece | Extra wide field, high point with diopter adjustment |
| Focusing | Feather touch ultra precise Coaxial (low position), both side, Coarse & Fine with tension control & upper limit stopper |
| Motorized | Z-axis motorized focusing |
| Power Supply | 90V-240V/50Hz AC (SMPS) |
| Microscopy Techniques | Polarizing, darkfield, fluorescence, phase contrast |
Precision Control and Large Working StageThe RXLr-4NX microscope features a substantial 230mm x 150mm rackless working stage, allowing effortless maneuvering of slides and samples. Its rackless design prevents accidental movement and wear, ensuring stability. With finely tuned coarse and fine adjustment systems, complemented by tension control and upper limit stoppers, users achieve remarkable focus accuracy and repeatability.
Advanced Viewing and Imaging CapabilitiesIntegrating a trinocular view head and drawtube, this microscope accommodates both direct observation and digital imaging. Users can connect cameras for documentation or analysis, while extra wide-field eyepieces with diopter adjustment provide comfortable, sharp viewing even for extended sessions. The diopter adjustment ensures clarity for users with varying eyesight.
Superior Illumination for Clear ObservationThe system utilizes Koehler's LED illumination, offering bright, even lighting for specimens. This lighting method enhances contrast and detail, crucial for research and quality control inspections. LED technology delivers energy efficiency and long-term reliability, making the microscope suitable for demanding laboratory environments.
FAQ's of Digital Research Microscope RXLr-4NX:
Q: How does the Digital Research Microscope RXLr-4NX benefit laboratory analysis?
A: The RXLr-4NX provides precise focusing, large working space, and superior illumination, resulting in clear images for detailed analysis. Its trinocular design allows simultaneous viewing and imaging, streamlining documentation and collaborative work.
Q: What is the advantage of the rackless square millimeter working stage?
A: The rackless 230mm x 150mm stage offers smooth and stable movement without exposed gear racks, minimizing sample shift and wear while maximizing usable surface area for different specimen sizes.
Q: Where can the RXLr-4NX microscope be sourced in India?
A: This microscope is available through distributors, exporters, manufacturers, suppliers, and wholesalers across India, ensuring broad accessibility for academic, research, and industrial users.
Q: What process is involved in adjusting focus with this microscope?
A: Focus adjustment includes both coarse and fine ranges, each equipped with tension control and an upper limit stopper. This ensures incremental, precise changes, preventing overextension and maintaining sample integrity during observation.
Q: How does Koehler's LED illumination enhance usability?
A: Koehler's illumination via LEDs delivers consistent brightness and even lighting. This improves contrast and detail, critical for accurate visualization, while LED efficiency extends operational time and reduces maintenance.
Q: What are the usage scenarios for this microscope model?
A: The RXLr-4NX is suited for biological research, material science, quality control, and education. Its digital imaging capability makes it ideal for collaborative work, documentation, and presentations.
Q: When should diopter adjustment be used on this microscope?
A: Diopter adjustment is beneficial when multiple users operate the microscope, or if the user wears corrective lenses, enabling tailored focus for individual eyesight, thus reducing eye strain during prolonged sessions.
