BINOCULAR RESEARCH POLARIZING MICROSCOPE RPL-55B BINOCULAR RESEARCH POLARIZING MICROSCOPE RPL-55B BINOCULAR RESEARCH POLARIZING MICROSCOPE RPL-55B

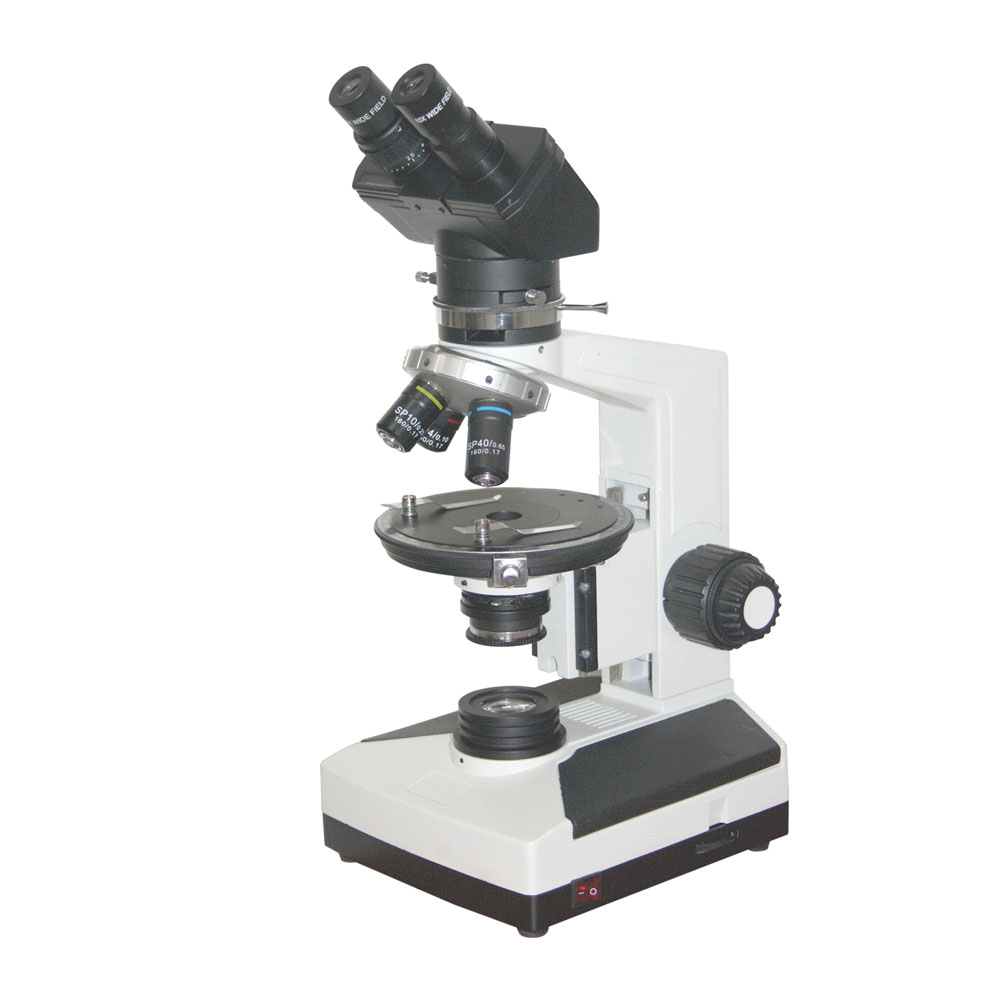

BINOCULAR RESEARCH POLARIZING MICROSCOPE RPL-55B

85000.0 INR/Piece
Get a Price/Quote

Product Details:

  • Theory Metallurgical Microscope
  • Drawtube Binocular
  • Focal Distance 30 Millimeter (mm)
  • Focus Range 2.5 m Meter (m)
  • Eyepieces WF-10X
  • Eyepiece Tube Binocular
  • Illumination Halogen/Transmitted Illumination
  • Click to view more
Request To Call Back Send Inquiry
X

BINOCULAR RESEARCH POLARIZING MICROSCOPE RPL-55B Price And Quantity

  • 85000.0 INR/Piece
  • 1 Piece

BINOCULAR RESEARCH POLARIZING MICROSCOPE RPL-55B Product Specifications

  • Binocular
  • JPEG
  • Large circular rotary stage, Dia. 140mm, 360 rotatable Square Millimeter (mm2)
  • Halogen/Transmitted Illumination
  • Binocular
  • 0.25mm per revolution
  • Metallurgical Microscope
  • 48-75 Millimeter (mm)
  • DIN Achromatic
  • 30 Millimeter (mm)
  • 2.5 m Meter (m)
  • WF-10X
  • Binocular

Product Description

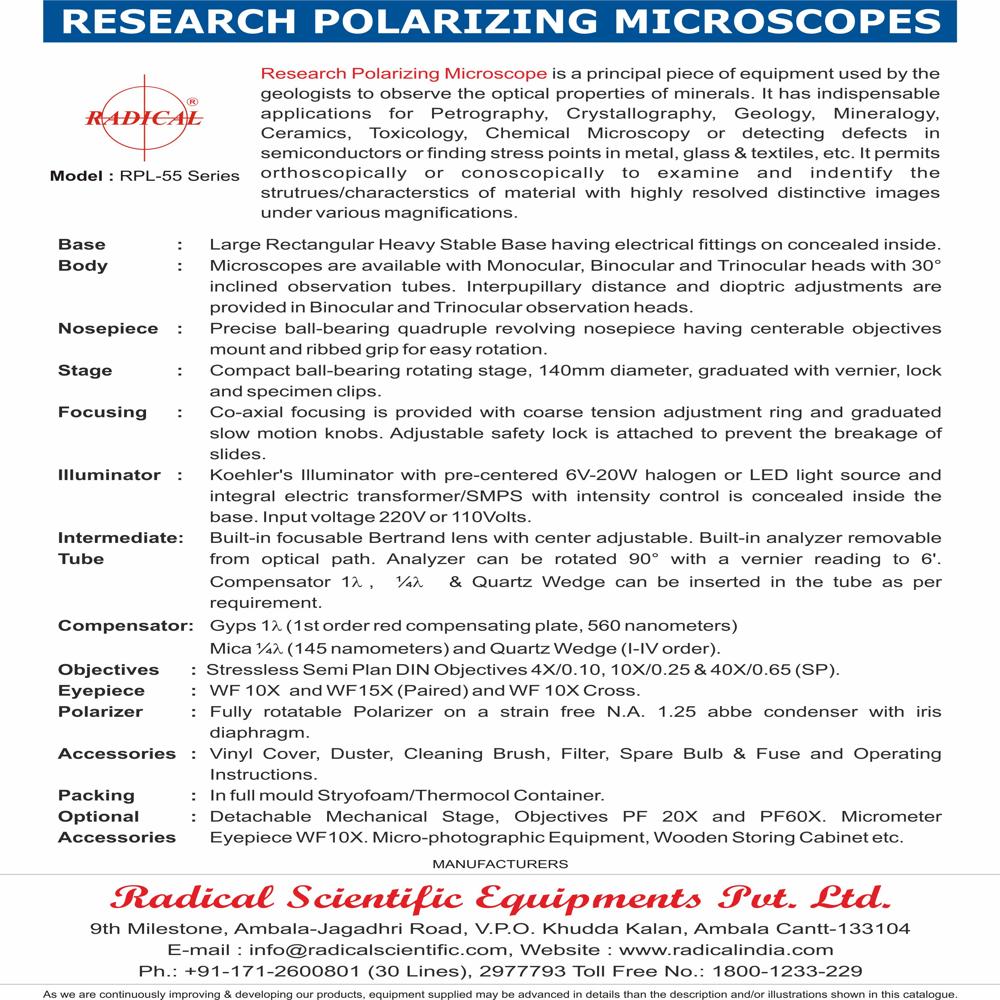

RPL-55 series polarizing microscope having sturdy and rugged construction suitable for geological and petrographic students. with option for both transmitted and incident light for strain free conscopic diascopic, orthoscopic observations. With POL optics & retarding plates make them suitable choice for any earth science application.

Body RP55MB Rugged, single die cast, ergonomic design, touch point treated, intensity controller, ON/OFF switch, rubber feet

Optical System RP55-OS Finite optical system, colour corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated), colour coded objectives, parfocal (45mm)
Transmitted Illumination RP55-TL Halogen lamp, 6V/20W, Std. life 2,000 hrs.
Viewing Head RP55-HB45 Binocular with sliding head 45, 360 rotating, interpupillary adjustment (48-75mm), FOV 20mm
Nosepiece RP55-4N Quadruple nosepiece, ball bearing, centrable
Eyepiece RP55-1020 Paired, WF 10X, FOV-20mm, multilayered coated, high quality, antiglare, good contrast, abrresion free, aplantic, lockable, diopter adjustment on one eyepiece
Mechanical Stage RP55-MS140 Large circular rotary stage, Dia. 140mm, 360 rotatable, with 1 interval, precise vernier scale of 0.1 with click stop at 45 increments. Provision for fixing stage clips; attachable mechanical XY travel, object guide with vernier 0.1mm, centrable
Objectives RP55-PL04 PL4X, N.A. 0.10, W.D. 30mm, DIN achromatic, unbreakable container for storage
  RP55-PL10 PL10X, N.A. 0.25, W.D. 6.1mm, DIN achromatic, unbreakable container for storage
  RP55-PL40 PL40X, N.A. 0.65, W.D. 0.65mm, DIN achromatic, unbreakable container for storage
Focusing RP55-F2.5 Coaxial, coarse and fine focus adjustment knobs (low positioned,both side) with rack & pinion arrangement, with tension control, upper limit stopper, full stroke range 30mm, high sensitive focus drive with 0.25mm per revolution, fine adjustment 2.5m/Div.
Condenser RP55-CBFP Centerable abbe condenser N.A. 0.9/1.25, sliding-in, iris diaphragm, Blue Filter, separate movement from focusing (rack & pinion) suitable for brightfield and polarizing, polarizer mounted below, rotatable with 5
Analyzer / Polarizer RP55-APOL Polarizer mounted below the condenser, built in analyzer with scale removable from optical path, 360, rotatable with 0.1 L.C.
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

Other Products in 'Polarising Microscopes' category

Trinocular Polarising Microscope RPL-3T
Send Inquiry
Advanced Polarizing Microscope RPL-3B
Send Inquiry
Binocular Polarizing Microscope RPL-55B
Send Inquiry

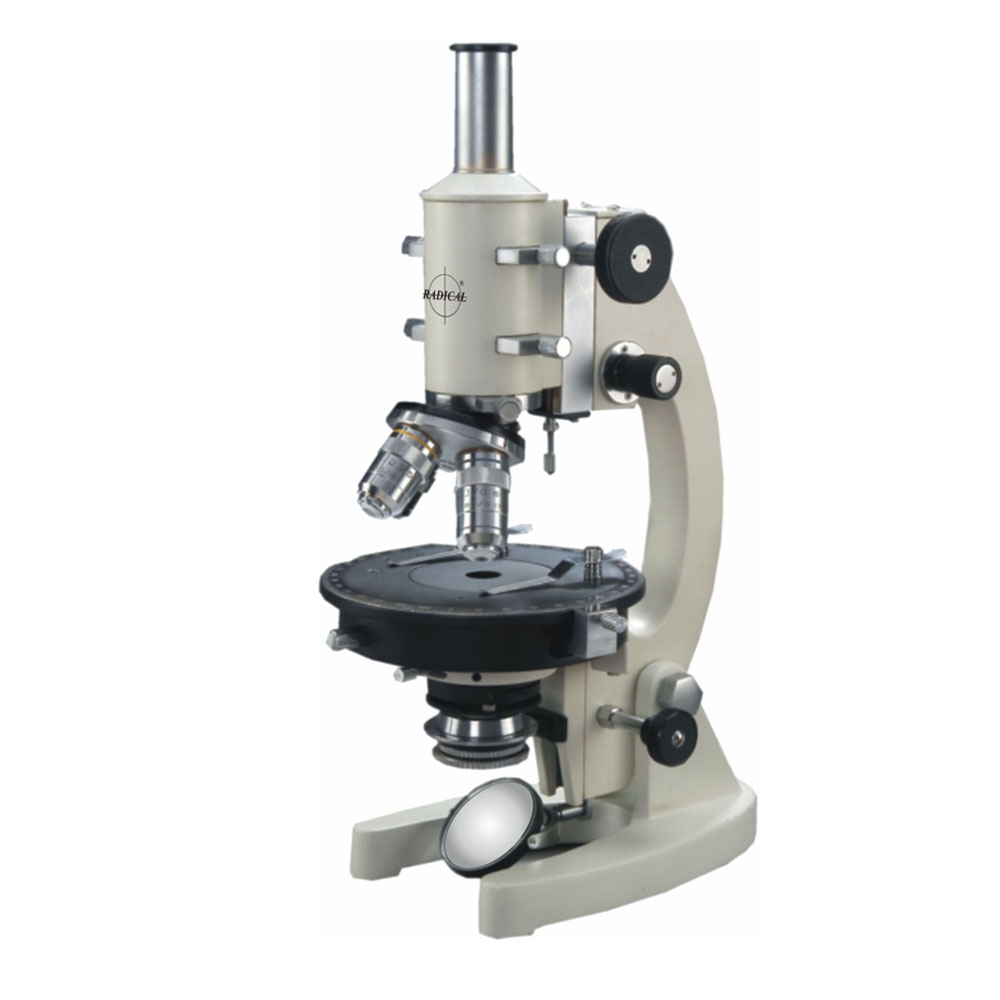

LABORATORY POLARIZING MICROSCOPE RPL-1
