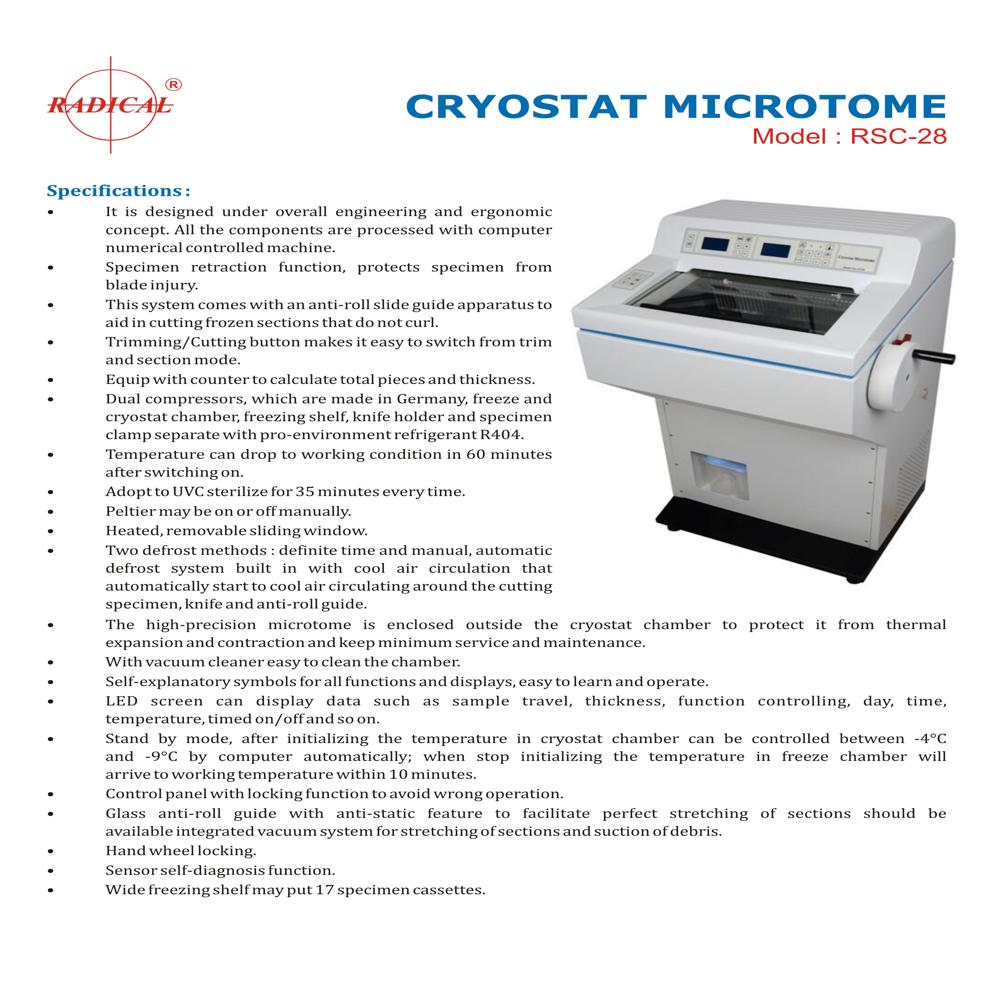

CRYOSTAT MICROTOME RSC-28

Product Description

Specifications :

It is designed under overall engineering and ergonomic

concept. All the components are processed with computer

numerical controlled machine.

Specimen retraction function, protects specimen from

blade injury.

This system comes with an anti-roll slide guide apparatus to

aid in cutting frozen sections that do not curl.

Trimming/Cutting button makes it easy to switch from trim

and section mode.

Equip with counter to calculate total pieces and thickness.

Dual compressors, which are made in Germany, freeze and

cryostat chamber, freezing shelf, knife holder and specimen

clamp separate with pro-environment refrigerant R404.

Temperature can drop to working condition in 60 minutes

after switching on.

Adopt to UVC sterilize for 35 minutes every time.

Peltier may be on or off manually.

Heated, removable sliding window.

Two defrost methods : definite time and manual, automatic

defrost system built in with cool air circulation that

automatically start to cool air circulating around the cutting

specimen, knife and anti-roll guide.

The high-precision microtome is enclosed outside the cryostat chamber to protect it from thermal

expansion and contraction and keep minimum service and maintenance.

With vacuum cleaner easy to clean the chamber.

Self-explanatory symbols for all functions and displays, easy to learn and operate.

LED screen can display data such as sample travel, thickness, function controlling, day, time,

temperature, timed on/off and so on.

Stand by mode, after initializing the temperature in cryostat chamber can be controlled between -4C

and -9C by computer automatically; when stop initializing the temperature in freeze chamber will

arrive to working temperature within 10 minutes.

Control panel with locking function to avoid wrong operation.

Glass anti-roll guide with anti-static feature to facilitate perfect stretching of sections should be

available integrated vacuum system for stretching of sections and suction of debris.

Hand wheel locking.

Sensor self-diagnosis function.

Wide freezing shelf may put 17 specimen cassettes.
