Product Description

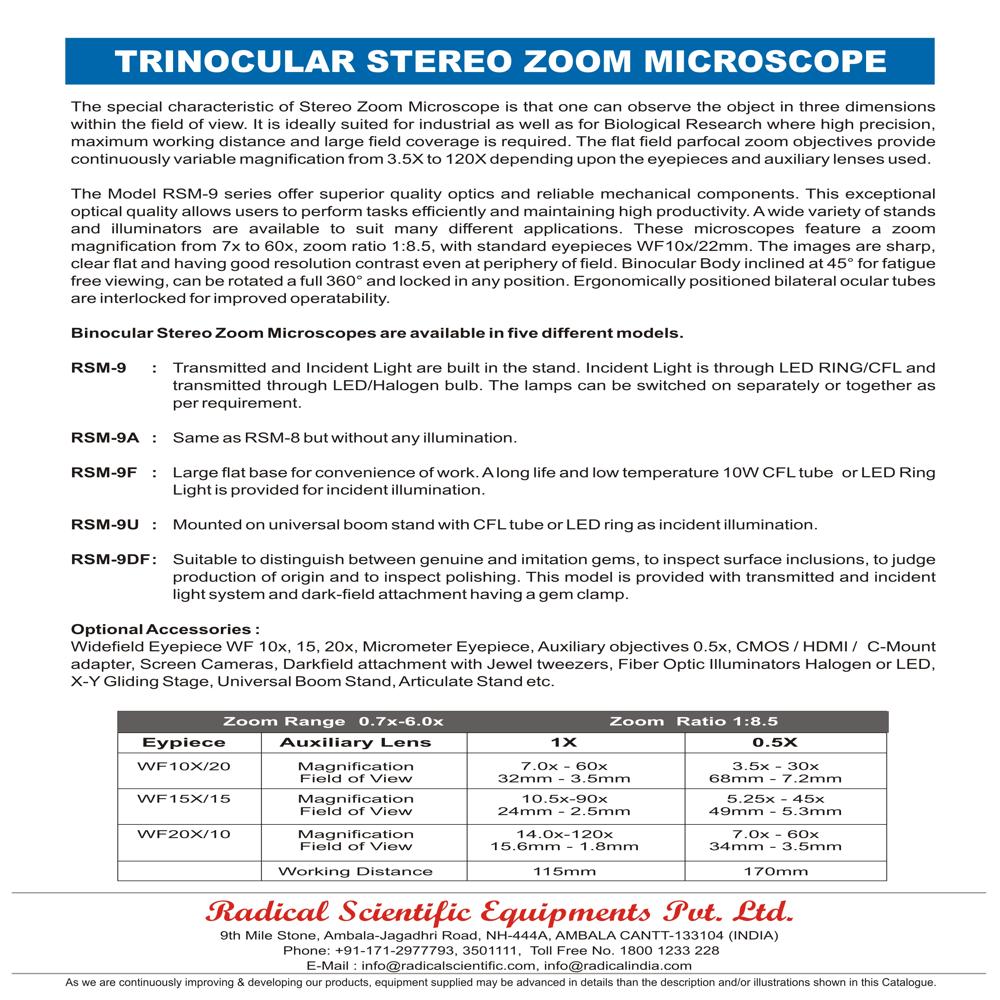

The special characteristic of Stereo Zoom Microscope is that one can observe the object in three dimensions within the field of view. It is ideally suited for industrial as well as for Biological Research where high precision, maximum working distance and large field coverage is required. The flat field parfocal zoom objectives provide continuously variable magnification from 3.5X to 120X depending upon the eyepieces and auxiliary lenses used.

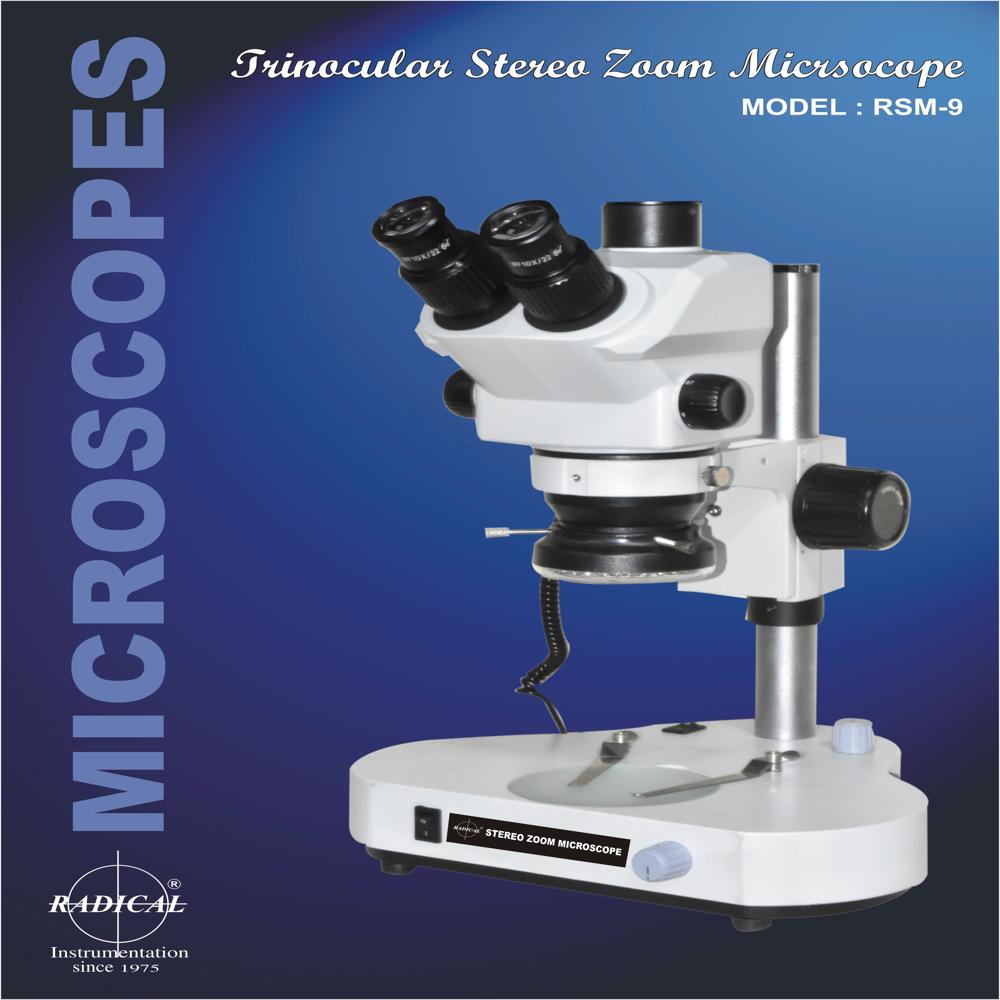

The Model RSM-9 series offer superior quality optics and reliable mechanical components. This exceptional optical quality allows users to perform tasks efficiently and maintaining high productivity. A wide variety of stands and illuminators are available to suit many different applications. These microscopes feature a zoom magnification from 7x to 60x, zoom ratio 1:8.5, with standard eyepieces WF10x/22mm. The images are sharp, clear flat and having good resolution contrast even at periphery of field. Binocular Body inclined at 45 for fatigue free viewing, can be rotated a full 360 and locked in any position. Ergonomically positioned bilateral ocular tubes are interlocked for improved operatability.
Long Working Distance and Ergonomic DesignThis microscope boasts a generous 118 mm working distance, enabling users to handle larger specimens or tools underneath the lens without obstruction. The large working stage provides ample space and features a convenient handrest for stable positioning, ensuring maximum user comfort during extended use.
Outstanding Optical PerformanceEquipped with objective achromatic optics and paired WF 10X eyepieces, the RSM-9 delivers exceptional image quality. Its high point eyepieces are multilayer coated, offering aberration-free, aplantic viewing with superb contrast and clarity. Lockable eyecups enhance usability for different users.
Versatile Illumination OptionsIllumination is provided by both transmitted and reflected 3W LED and HALOGEN lamps. Users can independently adjust brightness with separate intensity controllers and on/off switches to suit diverse inspection needs, making the microscope adaptable for a range of sample types.
FAQ's of Trinocular Stereo Zoom Microscope RSM-9:
Q: How do I operate the Trinocular Stereo Zoom Microscope RSM-9 for inspection purposes?

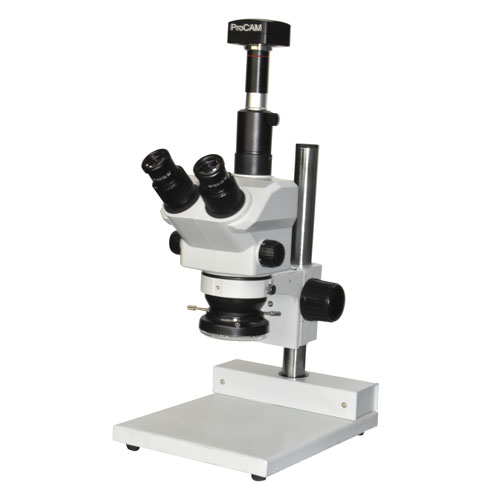

A: The microscope operates manually with a trinocular drawtube and paired WF 10X eyepieces. Simply place your sample on the large stage, use the plain focusing mechanism for sharpness, and adjust lighting with the separate intensity controllers for both LED and HALOGEN sources as needed.
Q: What benefits does the RSM-9 offer for industrial and quality control applications?
A: The RSM-9 provides a long working distance and ergonomic design for comfortable, effective examination of components. Its high-quality, aberration-free optics ensure accurate, detailed observation, enhancing efficiency and precision during industrial inspections and quality control processes.
Q: When is it recommended to use the LED versus the HALOGEN illumination?
A: The LED provides cool, energy-efficient lighting suitable for sensitive samples or routine observation, while the HALOGEN source offers intense, warm light for examining opaque or detailed objects. Selection depends on your specimen's requirements and desired image contrast.
Q: Where should the RSM-9 microscope be ideally installed for optimal usage?
A: Install the microscope in a stable, well-ventilated area with access to a 6 Volt power supply. Its robust die casting construction and off-white color fit laboratory environments, industrial workstations, and educational institutes alike, ensuring safe, consistent use.
Q: What is the process for switching between transmitted and reflected illumination modes?
A: Use the separate on/off switches and intensity controllers to alternate between transmitted and reflected light. Adjust the mode depending on whether your sample is transparent or opaque, providing flexibility for diverse inspection tasks.
Q: What are the practical benefits of the magnification range from 3.5x to 160x?
A: This wide magnification range allows users to examine both surface details and finer internal structures of samples, making the RSM-9 suitable for a variety of applications from preliminary inspection to detailed analysis in industry and research.
