Product Description

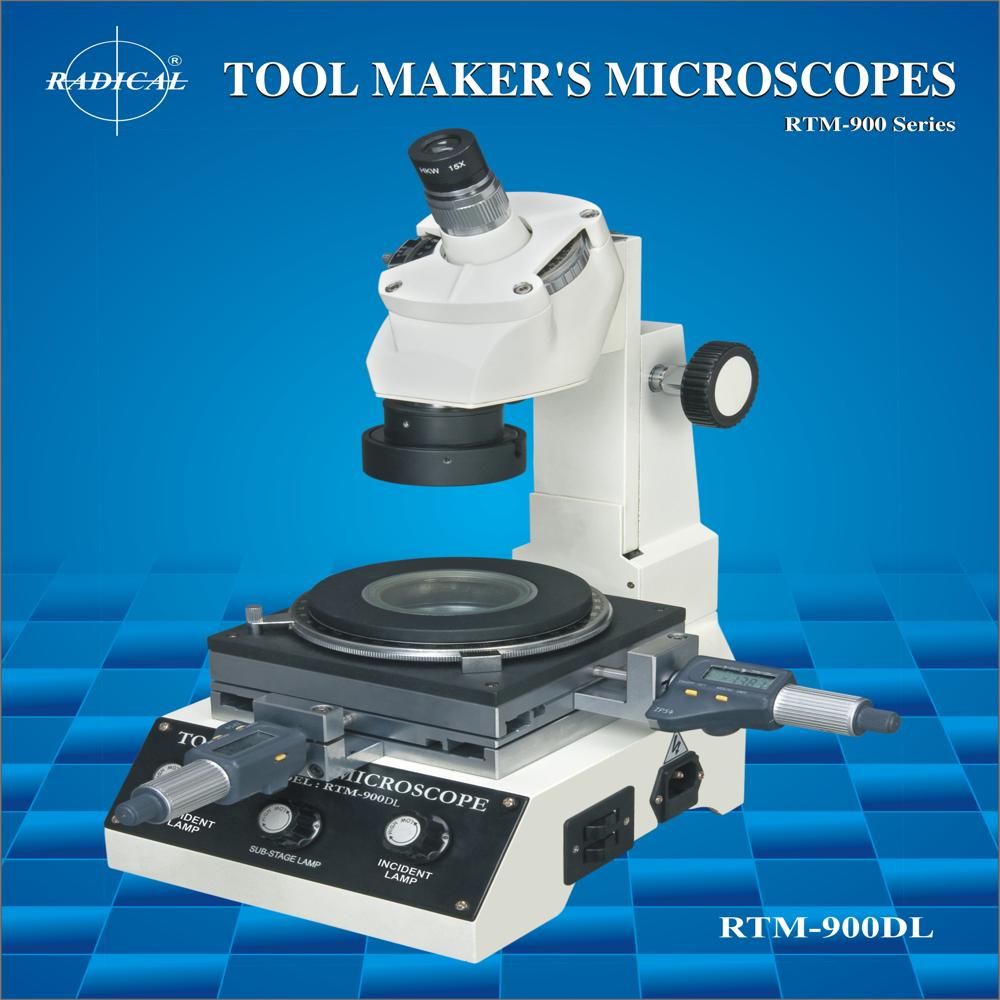

Toolmakers Microscope
- Observation Tube - Monocular, Inclined at 30 Coupled with graduated Eyepiece Protractor.
- Base - Large and heavy base provides extra overall rigidity to the instrument.
- Stage - 152mm X 152mm size assembled on ball bearing guides to provide accurate and smooth stage stroke upto 50mm in each direction.
- Illumination - Sub-stage lamp emits transmitted light from a bottom source equipped with collimated green filter halogen light. Oblique illuminator with adjustable inclination for surface illumination of sample with relief structure, is also provided. Three separate knobs for different illumination are provided with variable light control on the front panel.
- Objective- 2x Achromatic
- Eyepiece- WF 15 x with Cross reticle.
- Accessories - Different optional accessories are available
The following models are available with measuring device and different light source
- RTM-900MT Supplied with Standard Micrometer Least Count 0.01mm Tungsten Lights.
- RTM-900ML Supplied with Standard Micrometer Least Count 0.01mm LED Lights.
- RTM-900DT Supplied with Digital Micrometer Least Count 0.001mm Tungsten Lights.
- RTM-900DL Supplied with Digital Micrometer Least Count 0.001mm LED Lights.

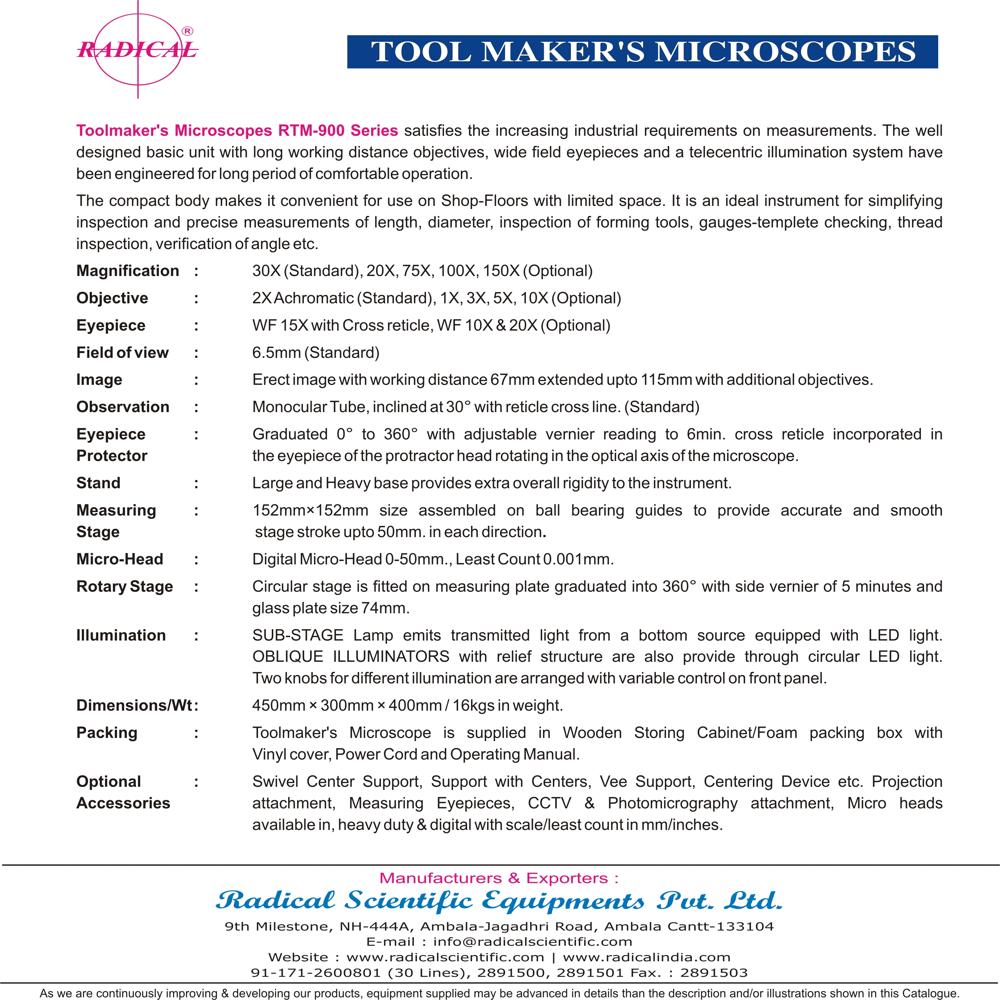

Product details
|
Eyepiece
|
WF 15 x
|
|
Objective
|
2x
|
|
Is It Portable
|
Non Portable
|
|
Model
|
RTM-900 series
|
|
Magnification
|
30x
|
|
Brand
|
Radical
|
Precision Measurements & Flexible MagnificationThe RTM-900DL Toolmakers Microscope provides highly accurate dimensional measurement, supporting a wide magnification range from 20X to 150X. Supplied with a robust die-cast frame and cross-reticle eyepiece, it ensures ergonomic observation and repeatable results. This microscope is apt for a variety of industrial inspection and tooling applications, ideal for users requiring detailed analysis.
Versatile Applications for Indian IndustryTrusted by professionals, the RTM-900DL meets the needs of toolmakers, manufacturers, and quality control technicians across India. Its optional eyepieces and customizable magnification make it suitable for diverse inspection tasks in workshops, labs, and production environments. As a distributor, exporter, supplier, and manufacturer, it covers multiple industry requirements efficiently.
FAQ's of Toolmaker's Microscope RTM-900DL:
Q: How is the Toolmakers Microscope RTM-900DL typically utilized?
A: The RTM-900DL is primarily used for precision measurement and inspection of small components, such as tools and dies. Its cross-reticle eyepiece allows accurate alignment and measurement, making it invaluable in quality control, toolmaking, and material research.
Q: What magnification options are available with this microscope?
A: The RTM-900DL comes standard with 30X magnification. However, it supports magnifications of 20X, 75X, 100X, and 150X when optional accessories are used, and eyepieces in 10X, 15X, and 20X are available for further flexibility.
Q: When should I consider using optional eyepieces?
A: Optional eyepieces, such as WF 10X or 20X, are recommended when the observation requires either a wider field of view or higher magnification. Depending on your inspection needs, selecting the appropriate eyepiece will optimize both image clarity and measurement precision.
Q: Where is the RTM-900DL manufactured and who supplies it?
A: This model is produced in India and distributed nationwide. It is available from manufacturers, exporters, distributors, suppliers, and wholesalers specializing in precision instrumentation.
Q: What is the process for switching between magnifications?
A: Switching magnification involves changing the eyepiece and objective lenses to the desired configuration. The modular design of the microscope allows easy adaptation according to measurement tasks or inspection requirements.
Q: What are the key benefits of using a die-cast body in this microscope?
A: A die-cast body ensures exceptional stability, precision, and durability during use. This construction minimizes vibrations, leading to higher accuracy in measurement and extended lifespan of the microscope, particularly important in demanding industrial scenarios.
