Product Description
All the Microscopes are latest in design, precision-engineered with finest features, usually found in high-priced models. Their operational functions can be carried out without any difficulty and provide excellent crisp clear image so that even advanced scientific studies are routinely possible.

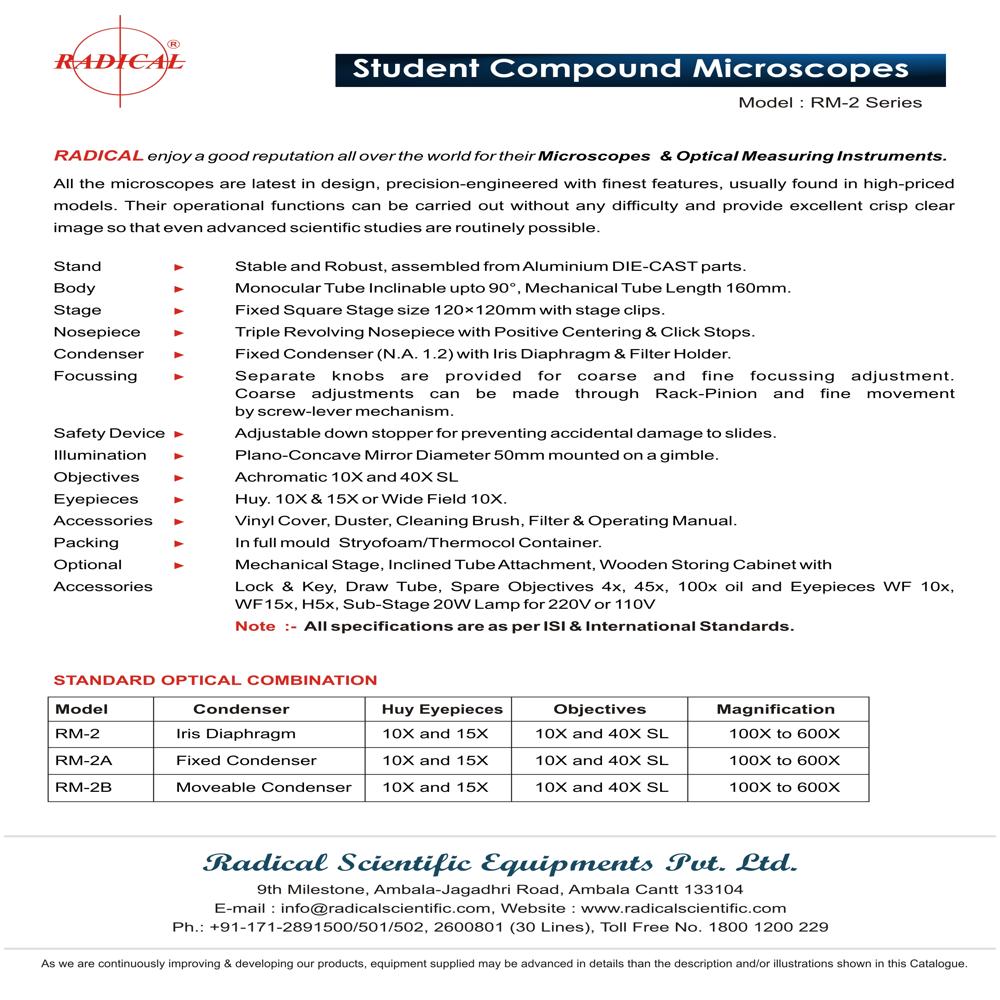

Specifications :-
Stand Stable and Robust, assembled from Aluminum DIE-CAST parts.
BodyMonocular Tube Inclinable up to 90 Degree,Mechanical Tube Length 160mm.
Eyepieces Huy 10X & 15X or Wide Field 10X.
Nosepiece Triple Revolving Nosepiece with Positive Centering & Click Stops.
Illumination Plano-Concave Mirror Diameter 50mm mounted on a gimble.

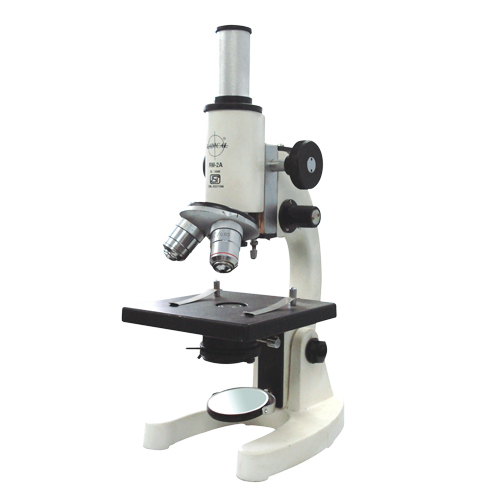

Versatile Magnification for Detailed ObservationWith a broad magnification range from 50x to 600x and precision achromatic objectives (10x, 40x), the RM-2A microscope empowers students and researchers to investigate biological samples in exceptional clarity. Whether examining cell structures or small organisms, users benefit from high-definition visual output suitable for various educational purposes.
Durable Construction for Consistent PerformanceCrafted from high-quality aluminium alloy, this monocular microscope guarantees long-lasting use in classrooms or laboratories. The fine and coarse adjustment mechanisms provide smooth, controlled focusing, ensuring reliable performance even with repeated operation by multiple users.
Optimized Lighting for Enhanced ImagingFeaturing an LED lamp and a 50mm plano-concave mirror mounted on a gimble, the RM-2A offers flexible illumination in diverse settings, including those with limited or no power supply. The built-in fixed condenser, complete with iris diaphragm and filter holder, allows users to tailor light for vivid, detailed sample views.
FAQs of Student Compound Microscope RM-2A:
Q: How do I operate the Student Compound Microscope RM-2A?
A: The RM-2A operates manually, with coarse adjustments made using the rack-pinion mechanism and fine focusing handled by the screw-lever system. Simply select your desired objective lens (10x or 40x), adjust the eyepiece (10x40x), and use the LED lamp or plano-concave mirror for illumination. Focus your sample with the adjustment knobs for clear viewing.
Q: What is the recommended usage for this microscope?
A: This microscope is crafted for medical and scientific research as well as educational use, making it suitable for students from elementary through college levels. Its design accommodates routine classroom demonstrations, laboratory exercises, and hands-on investigation of biological specimens.
Q: When should I use the LED lamp versus the plano-concave mirror for illumination?
A: Use the LED lamp for consistent, bright light when available. The plano-concave mirror is ideal in situations where electricity may not be accessibleit can be adjusted on its gimble to direct ambient light through the condenser for sample illumination.
Q: Where can the Student Compound Microscope RM-2A be used effectively?
A: Thanks to its durable construction and versatile illumination options, this microscope performs well in classrooms, college laboratories, field research locations, or clinical settings where clear observation of biological materials is required.
Q: What process should I follow to achieve the sharpest focus?
A: Begin by placing your sample on the stage and selecting the lowest magnification. Start with coarse adjustment to approximate focus, then switch to fine adjustment for precision clarity. Adjust the iris diaphragm and filters as needed for optimal lighting and contrast.
Q: How does the fixed condenser with an iris diaphragm benefit users?
A: The condenser with an iris diaphragm and filter holder enables users to efficiently control the intensity and spread of light on the specimen. This enhances image contrast and sharpness, which is crucial for viewing fine structural details during research or instruction.
