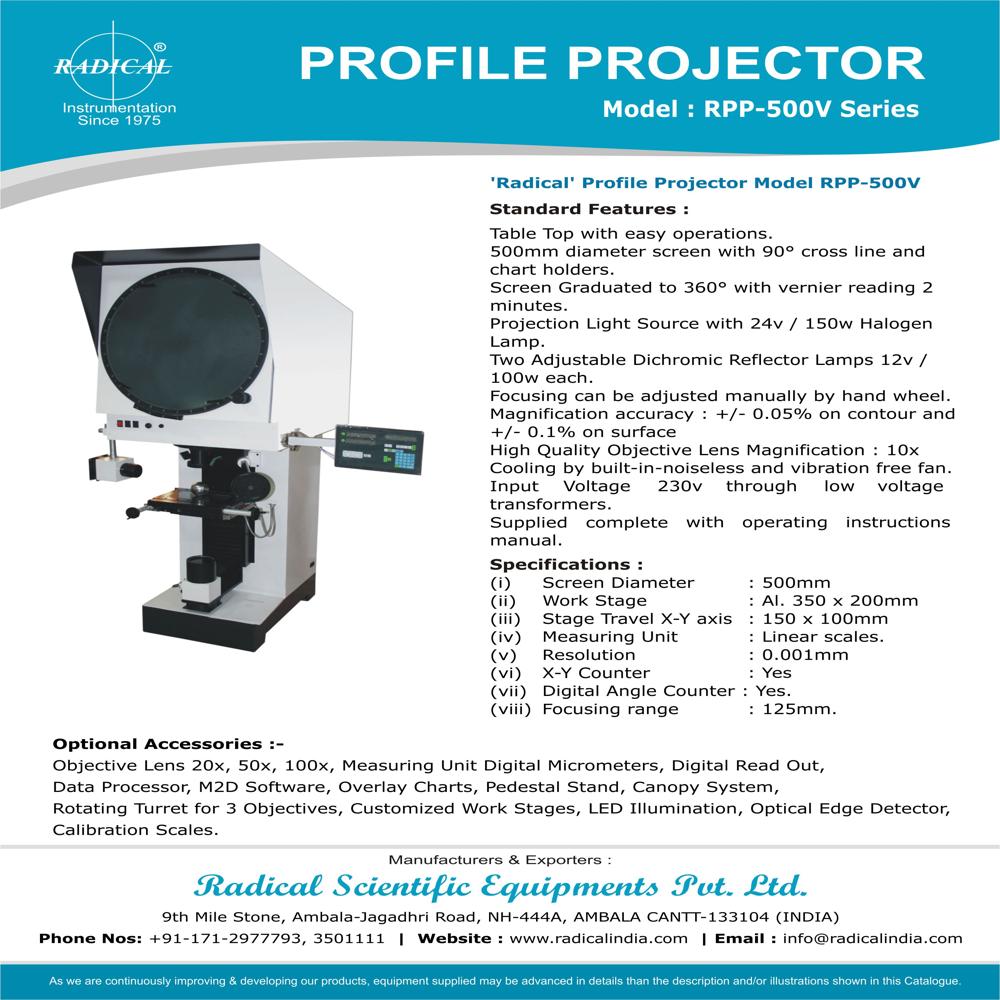

Product Description
Profile projector, supplied by Radical Scientific Equipments Pvt. Ltd is a mechanical, light and high precision measuring and electrical integration instruments, applicable for the sectors of machinery, electronics, light instrumentation industry and others. Profile projector is also demanded in metrology department, industries, universities and research institutes. It has the capacity to efficiently detect the outline dimensions. Also, it can detect the contours of complex surfaces and shapes. This is applicable to work with punching pieces, cams, templates, threads, molding milling cutters and gears.
Radical Profile Projectors are well equipped with transmitted light & incident light illumination suitable for inspecting of all kinds of surface and outline of complicated work pieces, tools, jigs, fixtures effectively. They are inspected by putting the components on glass stage.
Screen Diameter - 500mm
Work Stage - 350 x 200mm
Stage Travel
X-Y axis - 150 x 100mm
Focusing Range - 125mm
Magnification Standard - 10x
Magnification Optional - 20x, 25x, 50x, 100x
Projector Screen - 360 Rotation with 2 minutes vernier resolution
Magnification Accuracy 0.05% on contour and 0.1% on surface
Lens Mounting - 3 turret type for safety and easy use.
Resolution- 0.01mm
Measuring System - With Mechanical micrometer 0-25mm / DRO / Data Processor (selectable),(optional PC based software)
Illumination- 24V, 150W Halogen, Forced Air cooled, Light intensity controller
Filter color - Green (Yellow - option)
Power Supply - AC Single Phase 230V, 50Hz
Standard Accessories - Projection lamps 2 nos., Operating manual, Calibrations Certificate etc.

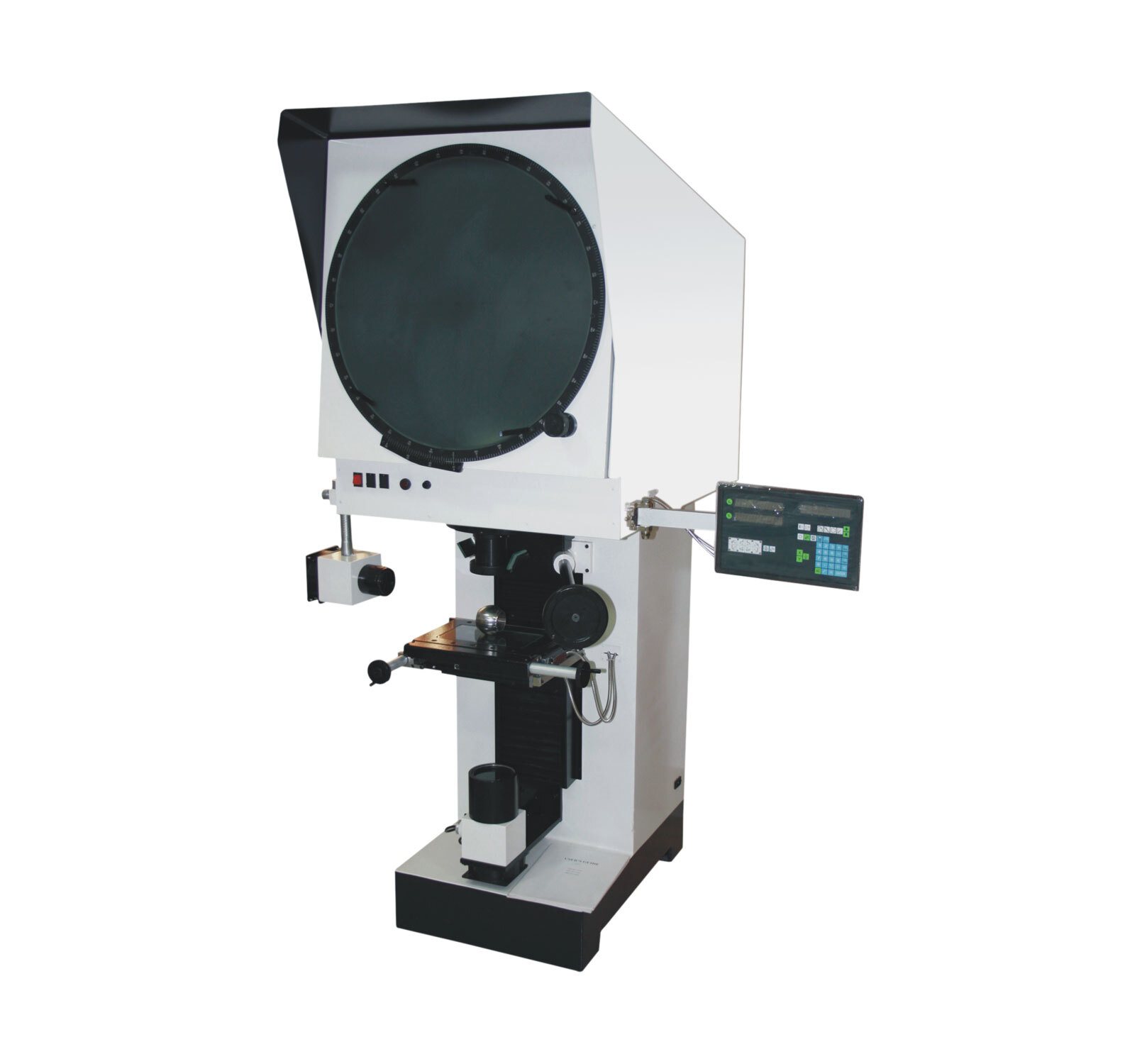

High-Precision Optical MeasurementThe RPP-500 Profile Projector excels in delivering highly accurate optical measurements of machined parts and tools. With a 10x objective lens and a remarkable 0.001mm resolution, this instrument is ideal for engineers and inspectors requiring meticulous analysis. Its fixed installation ensures stability and repeatability in any controlled measurement environment.
Reliable Illumination and PowerFor clear and consistent projection, the RPP-500 utilizes halogen or LED lamps, customizable to user preference. The system operates at a standard 220-volt power supply, ensuring compatibility with most Indian industrial setups. This combination of lighting options and stable voltage enhances both usability and measurement reliability.
FAQ's of Profile Projector RPP-500:
Q: How do you use the Profile Projector RPP-500 for measuring components?
A: Place the object on the worktable, align it with the measurement axis, and use the 10x objective lens to project the profile onto the screen. Fine adjustments can be made, and dimensional measurements are taken with the 0.001mm resolution scale.
Q: What types of lamps are compatible with the Profile Projector RPP-500?
A: The RPP-500 supports both halogen and LED lamps, offering flexibility for different illumination preferences and requirements.
Q: Where is the RPP-500 Profile Projector manufactured and supplied?
A: This model is manufactured, distributed, and supplied throughout India, catering to industries and laboratories nationwide.
Q: When is it advantageous to use a profile projector like the RPP-500?
A: Profile projectors are most beneficial during precision dimensional inspections of small to medium-sized components, especially where high-resolution non-contact measurement is essential.
Q: What is the process for obtaining and installing the RPP-500 in your facility?
A: Contact a distributor, exporter, manufacturer, supplier, or wholesaler in India. Once purchased, the device can be installed in a stable workspace with access to a 220-volt power supply.
Q: What are the main benefits of using the Profile Projector RPP-500 in quality control?
A: The RPP-500 offers non-contact, extremely accurate measurements, reducing human error and streamlining the inspection process for manufactured parts.
