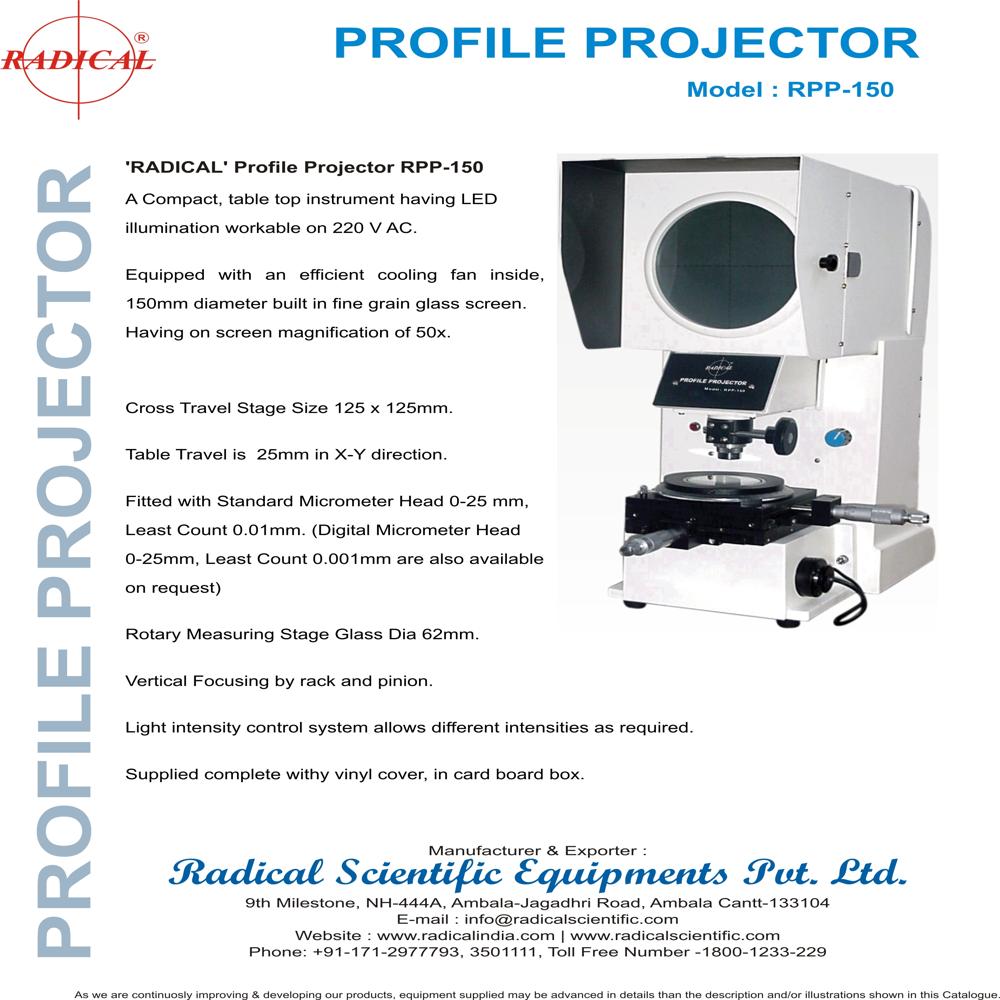

Product Description
- A dual purpose instrument having halogen projection bulb 12Volt 100Watt or 10watt LED Lamp workable on 220Volt AC.
- Equipped with an efficient cooling fan inside, 150mm diameter built-in fine grain glass screen.
- Cross Travel Stage size 125x125 mm.
- Table Travel upto 25 mm with Micro-Head, least count 0.01 mm.
- Rotary Measuring Stage Glass 62mm.
- Vertical focussing by rack and pinion.
- It is a bench Profile Projector suitable for all types of measurements and inspections in different industries. The equipment ensures high accuracy in dimensional measurements and surface inspections. The screen has cross on fine ground glass screen, rotatable through 360 deg with vernier reading to one minute of an arc and having detachable clips to hold comparator charts. The precision Micrometer Measuring stage with Rotary measuring stage is mounted on the table. The circular graduated scale is divided into 360 deg in steps of one degree with vernier reading to 6 minutes. Lifelong smooth movement is assured by the incorporation of hard steel balls both in longitudinal and transverse slides. High resolution objective lenses specially designed for profile projection under telecentric illumination minimize residual distortion to 0.1 percent. The basic instrument is supplied with 10x, a multi element coated projection lens. V-Mounts for easy interchangeability of objective lenses are provided. Projection accuracy +0.1 percent in case of contour and +0.15 percent in case of surface is maintained. Wide choice of available accessories enhance the scope of applications in various fields.
- Contour illumination 24V 150W Halogen Lamp or 10watt LED Lamp.
Exceptional Measurement AccuracyWith a resolution of 0.001mm (or 0.00005 inches), the Profile Projector RPP-150 provides highly precise measurements crucial for quality control and inspection processes. Its 10x objective lens ensures that even small details of the component can be clearly observed and measured, enhancing the reliability of your manufacturing output.
Versatile Illumination OptionsThe RPP-150 features both LED and Halogen lamp configurations, allowing users to choose the most suitable lighting based on their inspection needs. The adjustable brightness, compliant with ISO standards, further improves visibility and accuracy, ensuring flexibile use across various materials and application requirements.
Ideal for Industrial Use in IndiaDistributed, exported, and manufactured in India, the Profile Projector RPP-150 is widely used by suppliers, manufacturers, and wholesalers. Its robust construction and non-portable design make it suitable for dedicated inspection stations in industrial environments, contributing to consistent and efficient quality assurance.
FAQ's of Profile Projector RPP-150:
Q: How does the Profile Projector RPP-150 ensure measurement accuracy?
A: The RPP-150 is equipped with a high-standard 10x objective lens and provides a fine resolution of 0.001mm (0.00005 inches), enabling precise measurements of components. This makes it ideal for quality inspection and ensuring tolerance standards are met.
Q: What lighting options are available in the Profile Projector RPP-150?
A: This projector offers both LED and Halogen lamp options, giving users the flexibility to select suitable lighting. The adjustable brightness according to ISO standards ensures clear visibility for different inspection conditions.
Q: Where is the Profile Projector RPP-150 typically used?
A: The RPP-150 is mainly used in industrial settings such as manufacturing units, quality control labs, and by suppliers and wholesalers across India. Its robust, non-portable design is suited for stationary inspection stations.
Q: When should you use the Profile Projector RPP-150?
A: It is ideal for situations where high-precision measurement and inspection of manufactured parts or components are required, especially during production or quality assurance stages.
Q: What is the standard magnification lens with the RPP-150 profile projector?
A: The RPP-150 comes with a standard 10x objective lens, which offers clear and magnified views of small part features for accurate measurement and inspection.
Q: How does the adjustable ISO brightness benefit inspection?
A: Adjustable ISO brightness allows operators to tweak illumination according to the material and surface being inspected, minimizing glare and shadows, and thus improving the clarity and accuracy of observations.
Q: What is the process for using the RPP-150 for component inspection?
A: To inspect a component, place it on the projector's platform, adjust the objective lens and select the appropriate lamp. Set the desired brightness, focus the image, and use the precision resolution scale to measure or compare the profile against engineering standards.
