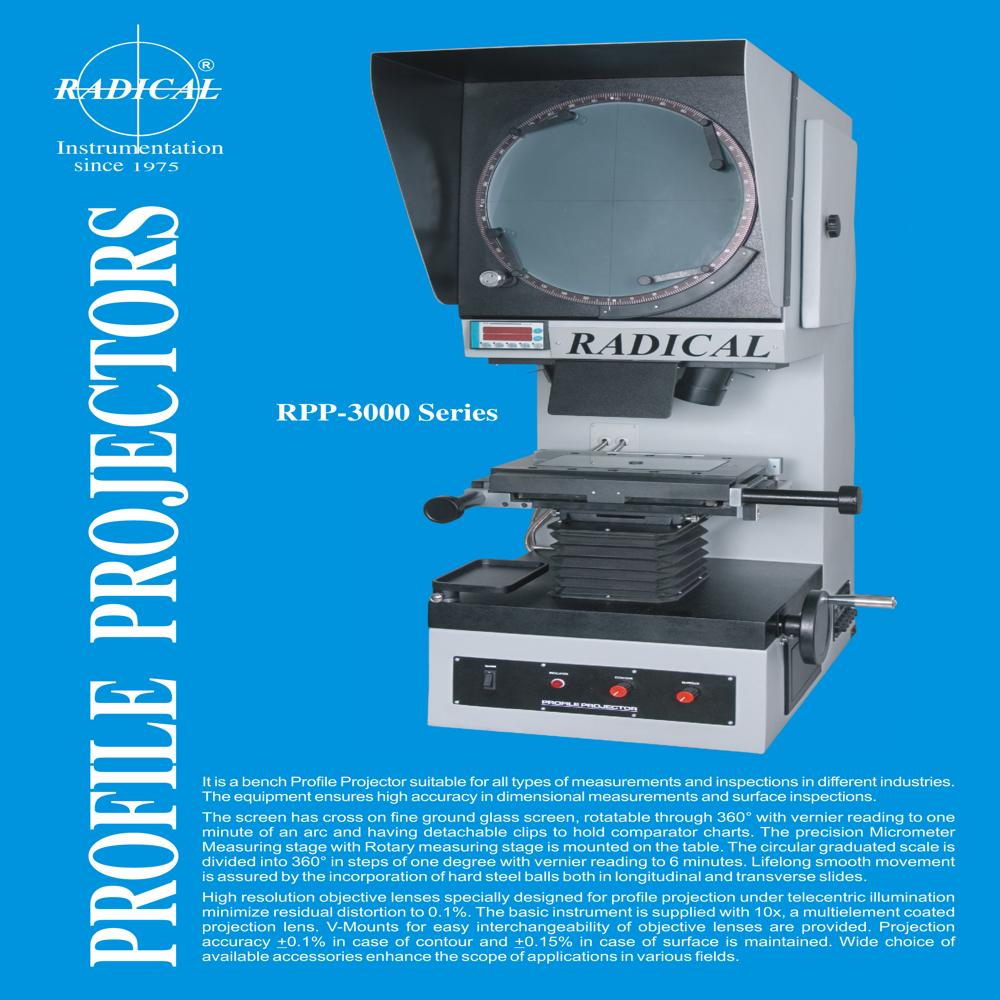

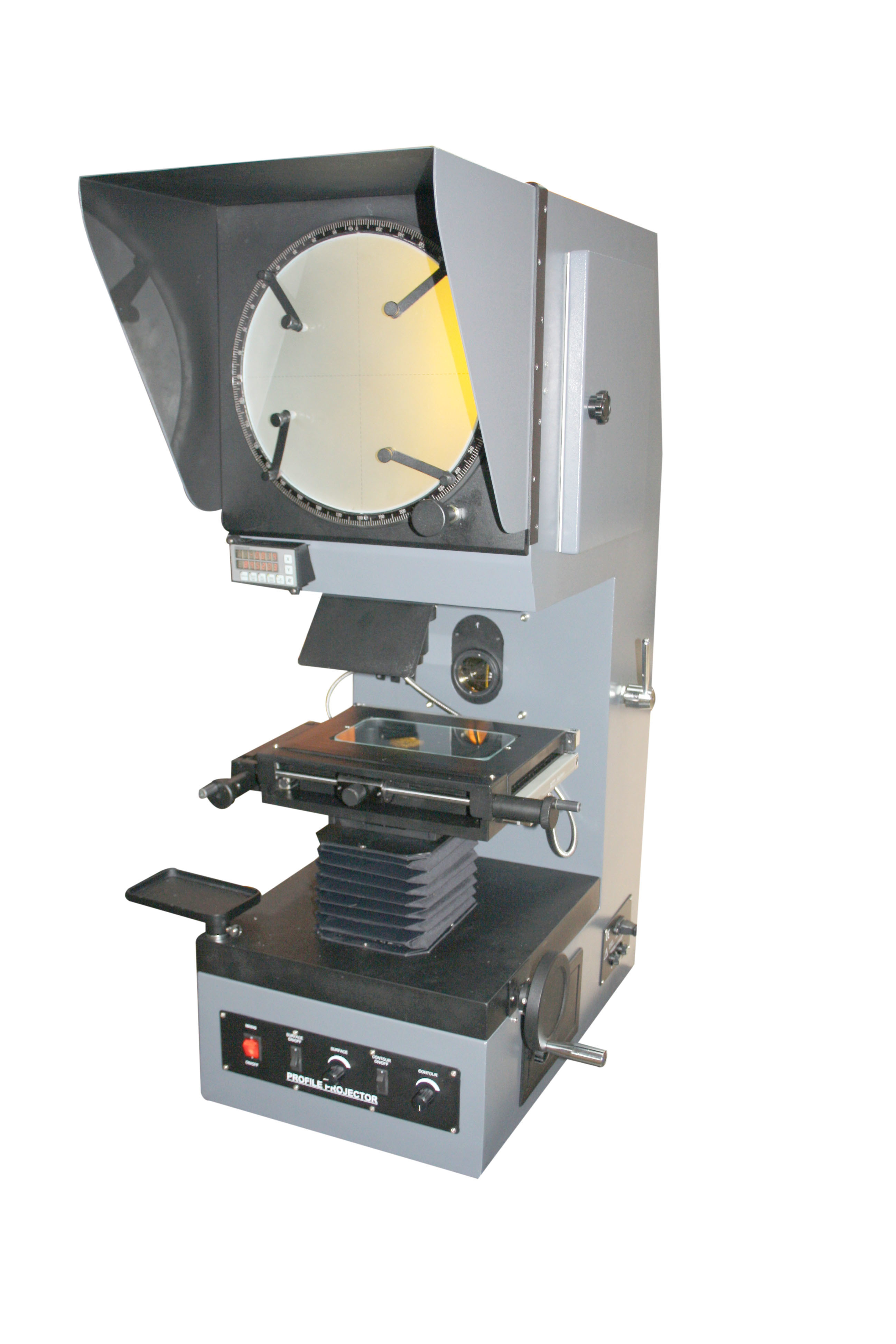

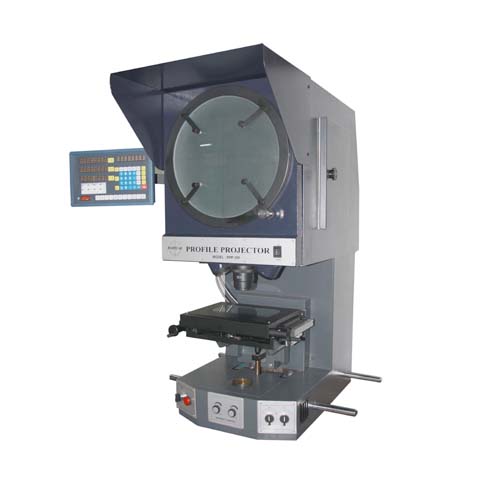

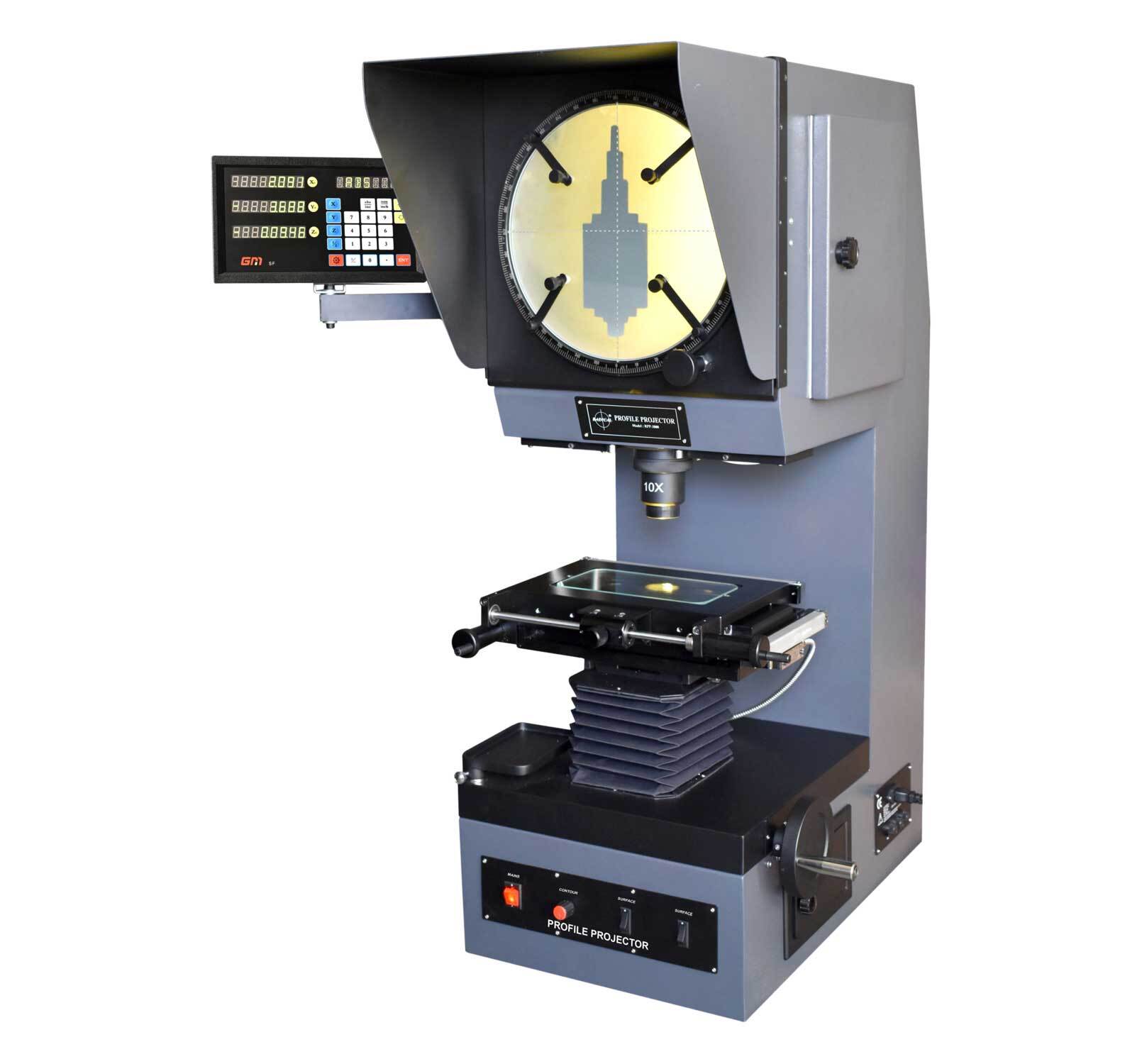

Product Description
- Compact light weight Table top with easy operations. 300mm diameter screen with 90 cross line and chart holders. Screen is graduated to 360 with vernier reading 6 minutes. Projection Light Source with 24V / 150W Halogen Lamp. Double Oblique Light source for Surface Illumination through 10 watt LED bulbs. Focusing can be adjusted manually by hand wheel. High Quality objective lenses. Optical distortion below 0.15% Standard magnifications : 10x, Optional : 20x, 50x and 100x. Measurements available through Manual or Digital Micrometers. Optional Work Tables for Micrometer Heads and for linear scales. Cooling by built-in noiseless and vibration free fan. Available in 110V or 220V through low voltage transformers. Supplied complete with operating instruction manual. Optional Cabinet base metal stand.
High Precision Measurement ToolEngineered for detailed inspection, the RPP-3000 offers a sharp resolution of 0.01mm, making it well-suited for applications demanding exact measurements and profile evaluations. Its large 300 mm screen allows users to observe and assess component geometry with clarity and efficiency, helping maintain stringent quality standards.
Adjustable Brightness with Versatile LightingThe adjustable ISO brightness ensures optimal viewing conditions, accommodating various sample types and user preferences. Whether selecting energy-efficient LED or traditional halogen lamps, users benefit from flexible illumination without compromising on clarity or measurement accuracy.
Trusted Supply Across IndiaAs a leading distributor, exporter, manufacturer, supplier, and wholesaler in India, we ensure the availability and service support for the RPP-3000. Our comprehensive distribution network enables seamless delivery to industrial users nationwide.
FAQ's of Coaxial Profile Projector RPP-3000:
Q: How is the Coaxial Profile Projector RPP-3000 used for measurement applications?
A: The RPP-3000 is used by placing the component to be measured on the stage, where its silhouette is projected onto the 300 mm screen. Users can compare the projected image against measurement scales or overlays, enabling precise dimensional verification down to 0.01mm.
Q: What are the main benefits of using the RPP-3000 with coaxial lighting?
A: Coaxial lighting provides uniform illumination, reducing shadows and enhancing edge definition. This allows for highly accurate profile comparisons and makes defect detection more reliable during inspection.
Q: When should I choose LED or halogen lamp options in this projector?
A: The LED lamp is energy-efficient, has a longer lifespan, and produces less heat, making it ideal for prolonged use. The halogen lamp offers a more traditional light spectrum, which some users may prefer for specific applications. Selection depends on your operational requirements and preference.
Q: Where is the RPP-3000 Coaxial Profile Projector typically installed?
A: This projector is usually set up in quality control laboratories, tool rooms, and manufacturing floors, where precise component measurement is necessary. Its non-portable design makes it suitable for fixed installation in controlled working environments.
Q: What is the process for adjusting the brightness on the RPP-3000?
A: Brightness adjustment is achieved through the ISO control, allowing users to set the optimal illumination level for their sample. This ensures clear projection and visibility of measurement details regardless of component surface conditions.
Q: How does the 0.01mm resolution enhance measurement accuracy?
A: The 0.01mm resolution provides highly detailed measurement capability, allowing operators to detect even the smallest deviations or defects. This ensures parts meet stringent tolerance requirements and supports rigorous quality assurance protocols.
