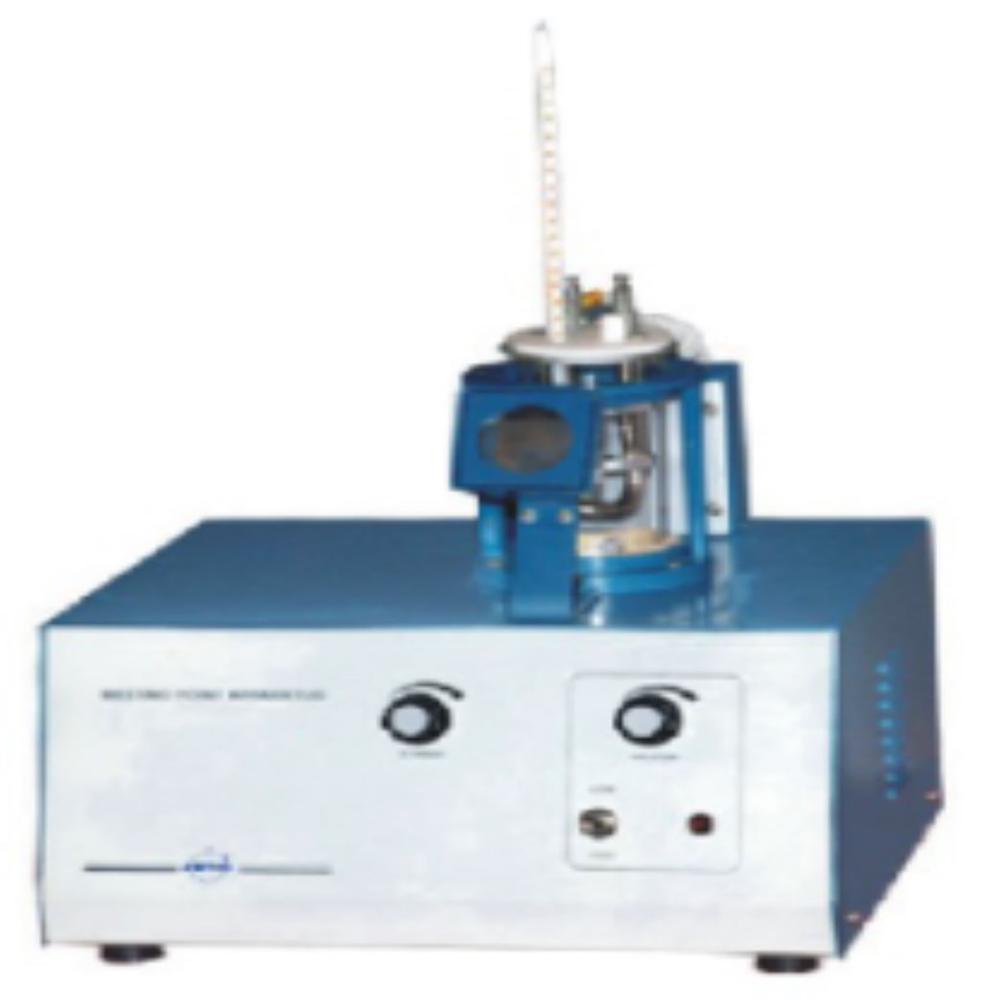

MELTING POINT APPARATUS - 931 MELTING POINT APPARATUS - 931

MELTING POINT APPARATUS - 931

36000.0 INR/Number
Get a Price/Quote

Product Details:

  • Accuracy 1C
  • Temperature Range Ambient to 350C
  • Measurement Range Up to 350C
  • Core Components Heating block, capillaries, magnifying lens, temperature sensor
  • Model No 931
  • Power Source AC Mains
  • Voltage 230 V
  • Click to view more
Request To Call Back Send Inquiry
X

MELTING POINT APPARATUS - 931 Price And Quantity

  • 36000.0 INR/Number
  • 1 Number

MELTING POINT APPARATUS - 931 Product Specifications

  • Approx. 330 x 220 x 170 mm
  • AC Mains
  • 230 V
  • Ambient to 350C
  • 1C
  • Up to 350C
  • Heating block, capillaries, magnifying lens, temperature sensor
  • 931
  • Laboratory Melting Point Apparatus
  • Approx. 6 kg
  • Powder coated metal body
  • Manual
  • For determining the melting point of substances
  • In-built magnifier, adjustable temperature control, uniform heating block
  • 3 samples simultaneously
  • Analog scale
  • 50 Hz
  • Thermal fuse for overheating protection
  • Up to 3 capillaries per batch
  • Electrical resistance heater
  • Large magnifying lens with adjustable angle
  • Chemistry, pharmaceuticals, research labs
  • Yes
  • Supplied with calibration certificate
  • Fitted lamp for clear sample observation
  • Graduated dial with fine adjustment

MELTING POINT APPARATUS - 931 Trade Information

  • 2 Days

Product Description

Radical Melting Point Apparatus Model RS 931 is designed for accurate measurement of melting points and for checking the melting range of the solid samples. The apparatus consists of silicon bath of about 200 ml capacity, covered with teflon cover, fitted with a special type of oil immersion heater having three holes for holding the capillaries, one for boiling point tube and one for thermometer. The apparatus consists of in-built magnetic stirrer, with indicator for precisely adjusting the rate of heating of silicon oil-bath, an On/Off switch, a pilot lamp, with magnifier, a thermometer, a glare free background illuminator and a high/low range temperature selector switch.

Superior Observation and Precision

With a large, adjustable magnifying lens and built-in illumination, the MELTING POINT APPARATUS - 931 offers clear, detailed viewing of sample phase changes. The analog scale and fine-control graduated dial enable precise readings up to 350C, improving accuracy during critical analyses in various laboratory settings.


Simultaneous Triple Sample Testing

Designed to optimize efficiency, the apparatus accommodates up to three capillary samples per batch. This feature allows side-by-side comparison of results, reduces turnaround time, and ensures consistent conditions for each substance tested, benefiting pharmaceutical and chemistry laboratories.


Safety and Reliability in Every Experiment

Safety is enhanced with a built-in thermal fuse to prevent overheating. Each unit is supplied with a calibration certificate, ensuring measurement reliability and compliance. The robust, powder-coated metal body withstands frequent laboratory use, making it a lasting investment for quality control and research.

FAQ's of MELTING POINT APPARATUS - 931:


Q: How does the MELTING POINT APPARATUS - 931 determine the melting point of a substance?

A: This apparatus uses an electrical resistance heater and a uniform heating block to gradually raise the temperature of up to three samples placed in capillary tubes. Observations are made through a large magnifying lens, with the melting point recorded using the analog temperature scale.

Q: What benefits does the adjustable magnifying lens offer during testing?

A: The large magnifying lens with adjustable angle allows users to closely observe melting transitions, reducing eye strain and enhancing the accuracy of detection. Together with integrated illumination, it provides clear visualization of subtle changes in samples.

Q: When is it necessary to calibrate the device, and how is calibration assured?

A: Calibration is essential before initial use or after maintenance to ensure accurate temperature readings. The apparatus comes with a calibration certificate, and routine recalibration can be performed according to laboratory protocols or regulatory requirements.

Q: Where can the MELTING POINT APPARATUS - 931 be utilized?

A: This apparatus is ideal for chemistry, pharmaceutical, and research labs where precise identification of substance melting points is required for quality control, formulation, or research purposes.

Q: What is the process for inserting samples and conducting a test?

A: Simply fill the supplied capillary tubes with finely powdered sample, place up to three tubes in the heating block, set the desired temperature rise using the graduated dial, and observe the samples through the lens as the temperature increases. Record the melting point when the phase transition is seen.

Q: How does the thermal fuse enhance safety during usage?

A: The built-in thermal fuse acts as an automatic safety shut-off, disconnecting the apparatus if it overheats, thus protecting both the user and the equipment from damage.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

Other Products in 'Lab items' category

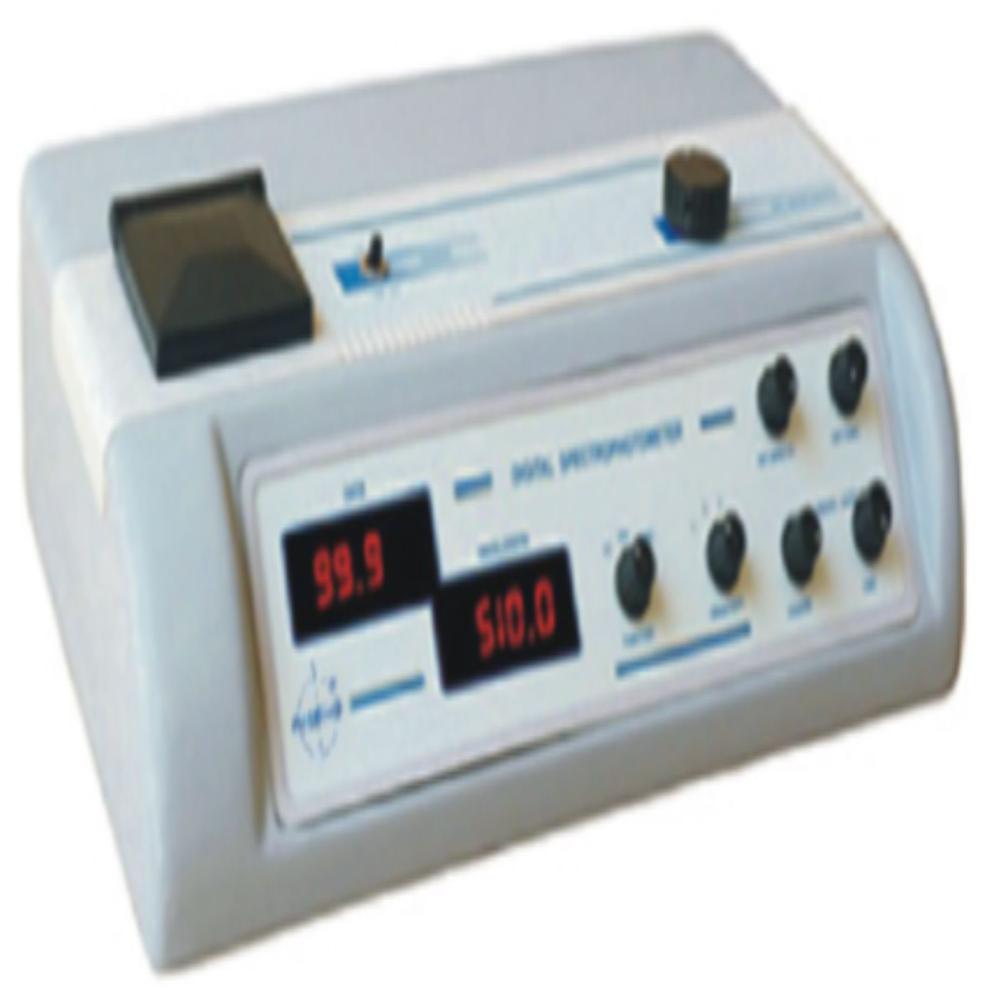

DIGI SPECTROPHOTO. -RS 304.305
