Product Description
Gemological Microscope
The Gemological Microscope we deal in is usually used by jewelers, stone setters and gemologists. This has been specifically configured for its effective use in the industry for observing the evaluating several types as well as grades of precious stones. Gemological Microscope is functional as an advanced device. It makes effective use of high levels of zoom magnification. It has the capacity to reveal the most intricate details and ensures zero occurring of possible flaws that are overlooked many times.
Radical Gemological Swivel Binocular Microscope is used to distinguish between genuine and imitation gems, to inspect surface inclusions, to judge production of origin and to inspect polishing. It is also used to exhibit & explain to the customers at jewellery shop. Radical Microscope is provided with transmitted and flourescent incident light system. Radical Gemological Microscopes have earned the reputation for having excellent optics, rugged dependability, versatility & economy
Radical Gemological Microscope share a unique substage brightfield and darkfield illuminator, an adjustable epi-illuminator and a gem clamp for unsurpassed versatility in a wide range of scientific and industrial applications. In industry, the combination of incident and transmitted illumination afforded by these microscopes quickly locates both surface and hidden defects profile examination under darkfield illumination quickly shows up flaws, burrs and surface inclusions, brightly illuminated against a dark background. In geology, mineralogy and gemology, it clarifies the structure of crystals and aids in their positive identification. It is also invaluable for certain biological applications, such as examination of large embryological specimens, planktons, fungi or colonies, requiring the stereo microscope's great depth of field. The Model RGM-Series offer superior quality optics and reliable mechanical components. This exceptional optical quality allows users to perform tasks efficiently and maintain high productivity. A wide variety of stands and illuminators are available to suit various applications. These microscopes feature a zoom magnification from 7x to 45x, zoom ratio 6.4:1, with standard Eyepieces WF 10x/20. The images are sharp, clear, flat and have good resolution contrast even at periphery of field. Binocular Body inclined at 45, for fatigue free viewing, can be rotated a full 360 and locked in any position. Ergonomically positioned bilateral ocular tubes are interlocked for improved operation.

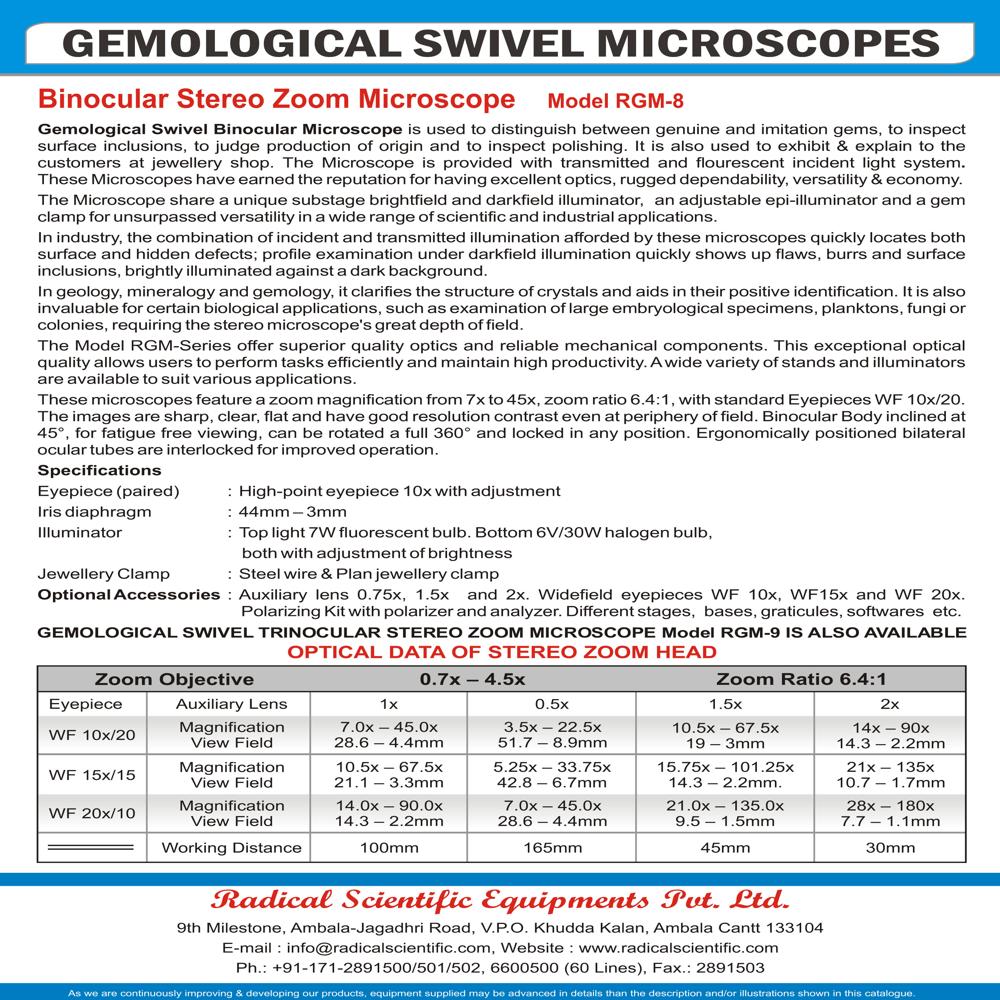

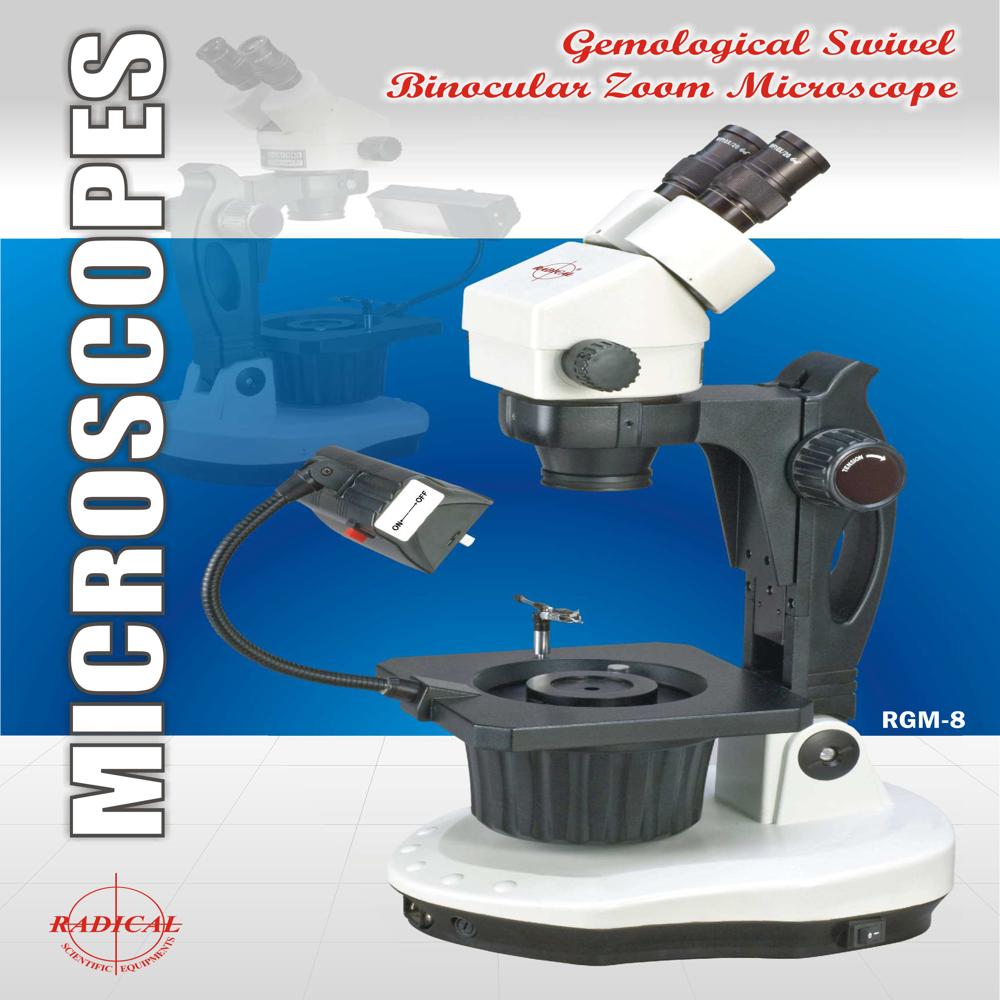

Model RGM-8
Specifications :-
- Eyepiece (paired) - High-point eyepiece 10x with adjustment
- Iris diaphragm - 44mm - 3mm
- Illuminator - Top light 7W fluorescent bulb. Bottom 6V/30W halogen bulb, both with adjustment of brightness
- Jewellery Clamp - Steel wire & Plan jewellery clamp
- Optional
- Accessories - Auxiliary lens 0.75x, 1.5x and 2x. Widefield eyepieces WF 10x, WF15x and WF 20x. Polarizing Kit with polarizer and analyzer. Different stages, bases, graticules, softwares etc.
Product details
|
Auxiliary Lens
|
0.75x, 1.5x and 2x
|
|
Eyepiece
|
10x
|
|
Iris Diaphragm
|
44 mm - 3 mm
|
|
Is It Portable
|
Portable
|
Advanced Magnification RangeThe RGM-8 provides a variable magnification ranging from 7x up to 45x, enabling precise observation of gemstones and minute details. Its two 10x eyepieces ensure comfortable, clear viewing, making it ideal for professionals conducting gem identification and appraisal.
Trinocular VersatilityEquipped with a trinocular drawtube, the Gemological Microscope RGM-8 enables effortless adaptation to camera systems for documentation and analysis. This feature is invaluable for labs and educational settings where image capture is essential.
Superior IlluminationA 7W fluorescence/halogen bulb delivers bright, consistent lighting for accurate gemstone assessment. The dual light modes enhance the visibility of internal structures and color variations, improving the reliability of results.
FAQ's of Gemological Microscope RGM-8:
Q: How can I use the RGM-8 Gemological Microscope for gemstone analysis?
A: To begin analysis with the RGM-8, position your gemstone on the microscope stage. Adjust the magnification between 7x and 45x for optimal clarity, and utilize the 7W fluorescence/halogen illumination to highlight inclusions and features. The trinocular head allows efficient visual examination and facilitates connection to cameras for documentation.
Q: What are the main benefits of the trinocular drawtube on the RGM-8?
A: The trinocular drawtube provides an extra port for attaching imaging devices, making it easier to capture and share images of gemstones. This is particularly beneficial for collaborative analysis, teaching, and creating photographic records.
Q: Where can I purchase the Gemological Microscope RGM-8 in India?
A: The RGM-8 is available through authorized distributors, exporters, manufacturers, suppliers, and wholesalers across India. You can contact leading laboratory equipment suppliers to obtain purchase details and after-sales support.
Q: When should I use the fluorescence or halogen illumination feature?
A: Fluorescence illumination is ideal for revealing certain gemstone characteristics such as phosphorescence or specific inclusions, while the halogen light provides bright, natural-color illumination for general observation and color evaluation. Switch between modes depending on the analysis required.
Q: What is the process for adjusting magnification on the RGM-8 microscope?
A: Adjust the magnification by rotating the zoom knob, allowing you to seamlessly change between 7x and 45x. The dual 10x eyepieces complement this by offering a clear, comfortable viewing experience at any chosen magnification level.
Q: How does the RGM-8 microscope improve laboratory efficiency?
A: Its ergonomic design, versatile illumination, and the ability to capture images streamline workflow and communication in laboratory and educational environments. The microscope's flexibility allows users to conduct comprehensive studies and precise documentation efficiently.
