Brinell Hardness Tester

Brinell Hardness Tester
Brinell Hardness Tester
Send Inquiry
Product Code : RHT300IS
Brand Name : Radical
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit
  • Price Range
  • 250000.00 - 800000.00 INR/Unit
Product Description

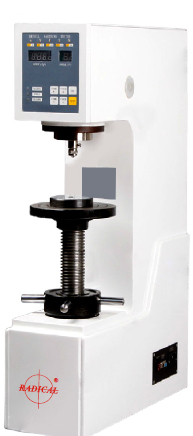

Brinell Hardness Tester Model RHT-3000IS

Brinell hardness tester we deal in has been typically used in the testing of aluminum as well as copper alloys. It usage make use of relatively high loads, and is useful in the determination of hardness of several substances. The overall material properties of Brinell hardness tester, offered by Radical Scientific Equipments Pvt. Ltd are outstanding. These show efficiency in several surface conditions and allow for the forging as well as casting of numerous large parts.

  • Scale : HBW2.5/62.5,HBW2.5/187.5,HBW5/125,HBW5/750,HBW10/100,HBW10/250, HBW10/500,HBW10/1000,HBW10/1500,HBW10/3000
  • Conversion scale : HRC,HRA,HR15N,HR30N,HR45N,HV
  • Test force : 62.5kgf(612.9N),100kgf (980.7N),125kgf (1226N),187.5kgf (1839N),250kgf (2452N),500kgf (4903N),750kgf (7355N),1000kgf (8907N),1500kgf (14710N),3000kgf (29420N)
  • Minimum measuring unit : 0.00125mm
  • Hardness Value Read: Computer Screen.
  • Total amplification: 80x.
  • Load method: Automatic(load, dwell, unload)
  • Specimen Maximum Height Allowed : 220mm
  • Throat Depth : 120mm
  • Instrument Size and Weight : 530x210x758mm (WXLXH) 135 Kg.
  • Dwell time : 1-99s
  • Power supply : AC220V + 5%, 50~60 Hz.
  • Data output : The test data automatic generation format Word, Excel and so on report, print A4 report, save the image JEP/BMP format .
  • Standard accessories : hardness tester ;Φ2.5,Φ5,Φ10mm harden alloy indenter ; big, medium and “V” test table; hand wrench; safety fuse; power cable; accessory box; dust-proof cover ;hardness measurement software CD; portable microscope ;dongle; data cable ; manual instruction; certificate of quality and warranty card; hardness conversion table.

Trade Information
  • Payment Terms
  • Cash Against Delivery (CAD), Cash in Advance (CID), Cheque
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001 ISO 14001 ISO 10002 ISO 13485 CE
