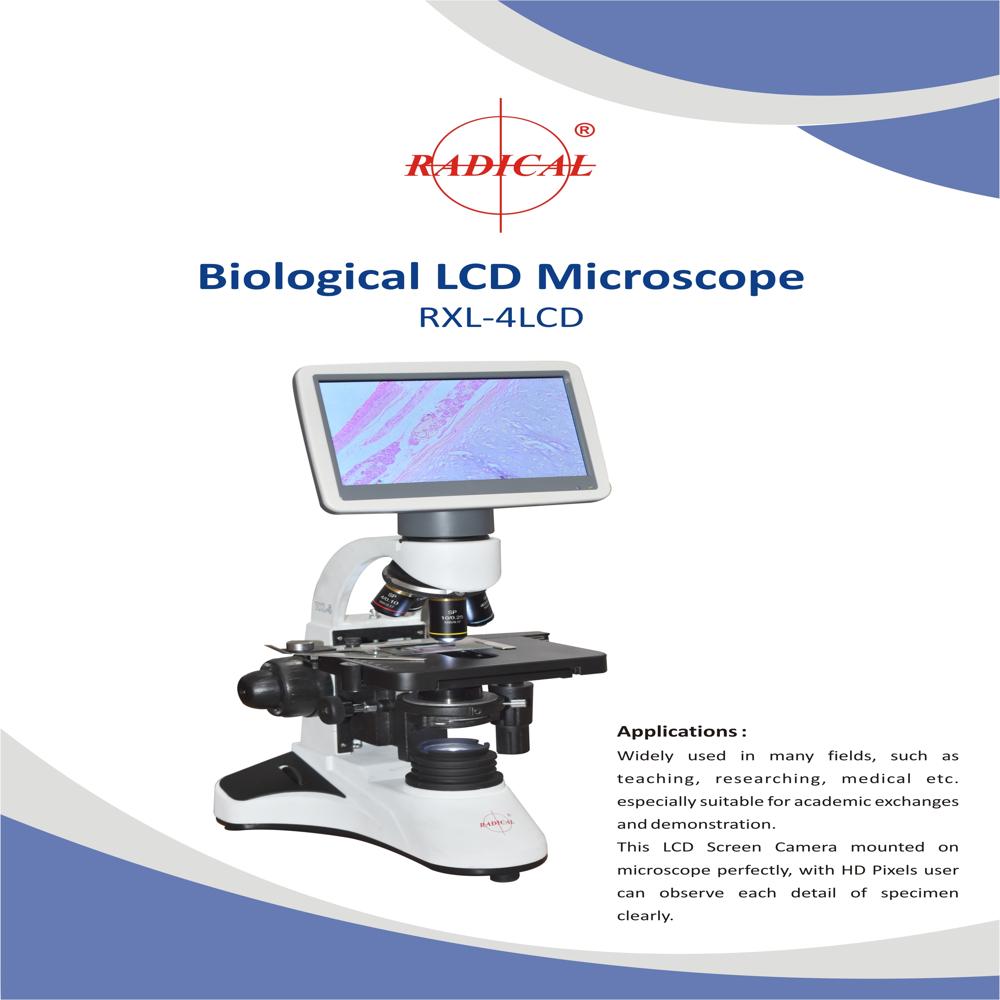

Biological LCD Microscope RXL-4LCD

Product Description

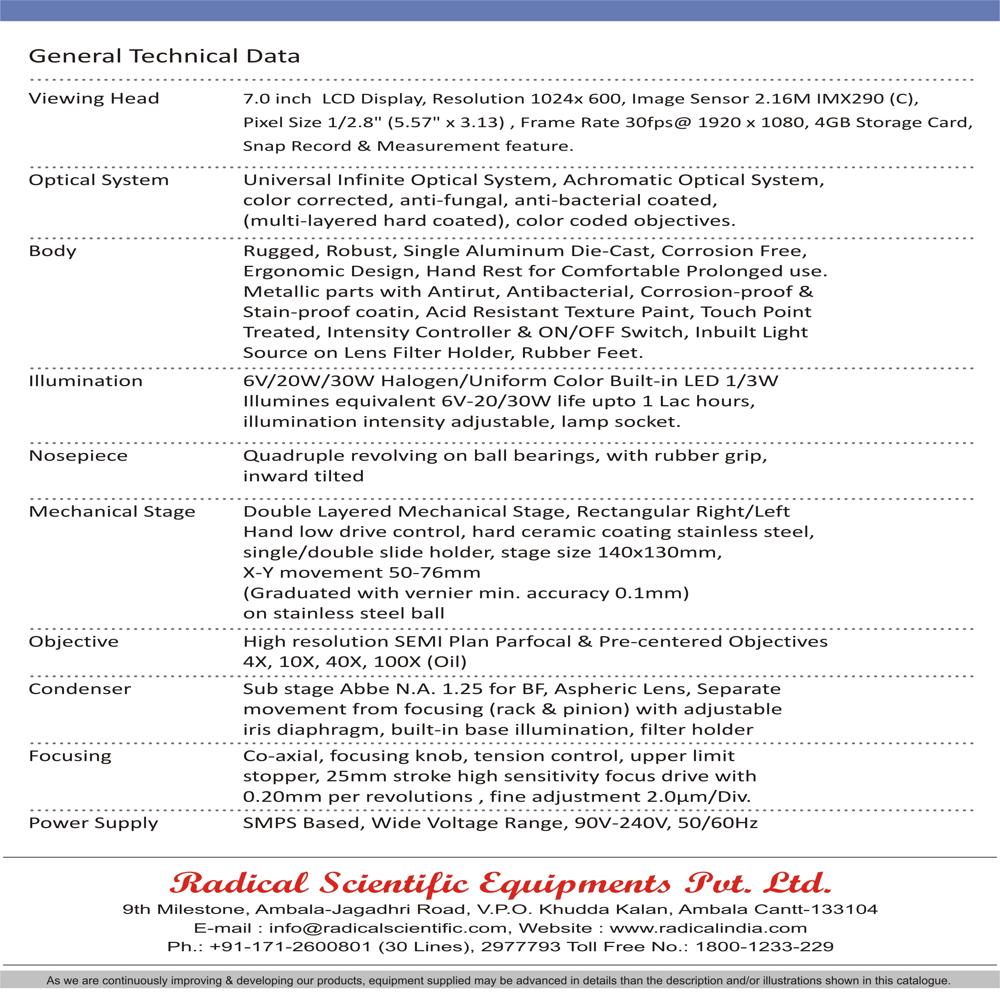

General Technical Data :

Viewing Head : 7.0 inch LCD Display, Resolution1024x600, Image Sensor 2.16M IMX290 , Pixel Size 1/ 2.8 (5.57x 3.13), Frame Rate 30fps @1920 x 1080, 4GB Storage Card, Snap Record &Measurement Feature.

Optical System : Universal Infinite Optical System,Achromatic Optical System, color corrected , anti- fungal, anti-bacterial coated, (multi-layered hard coated), color coded objectives.

Body :Rugged, Robust, Single Aluminum Die-cast, Corrosion Free, Ergonomic Design, Hand Rest for ComfortableProlonged use. Metallicparts with Antirut, Antibacterial, Corrosion proof & Stain Proof coatin, Acid Resistant Texture Paint, Touch Paint Treated,Intensity Controller & ON /OFF Switch, Inbuilt Light Sourceon Lens Filter Holder, Rubber Feet.

Illumination :6V/20W/30W Halogen / Unifrom Color Built-in LED 1/3W Illumines equivalent 6V-20/30W life upto 1lac hours, illumination intensity adjustable, lampsocket.

Nosepiece :Quadruple revolving o ball bearings, with rubber grip inward tilted

Mechanical Stage : Double Layered Mechanical Stage,Rectangular Right/ Left Hand low drive control, hard ceramiccoating stainless steel, single/ double slide holder, stage size 140x 130mm, X-Y movement 50-76mm ( Graduated with vernier min. accuracy 0.1mm) on stainless steel ball.

Objective : High resolution SEMI Plan Parfocal &Pre-centered objectives 4x, 10x, 40x, 100x (oil )

Condenser : Sub stage Abbe N.A. 1.25 for BF, AsphericLens, Separate movement from focusing ( rack &pinion) with adjustable iris diaphragm , built in baseillumination, filter holder

Focusing : Co-axial, focusing knob, tension control, upper limit stopper, 25mm stroke high sensitivityfocus drive with 0.20mm per revolutions, fine adjustment2.0 um / div.

Power Supply : SMPS Based, Wide Voltage Range ,90V-240V, 50/60Hz
