Product Description

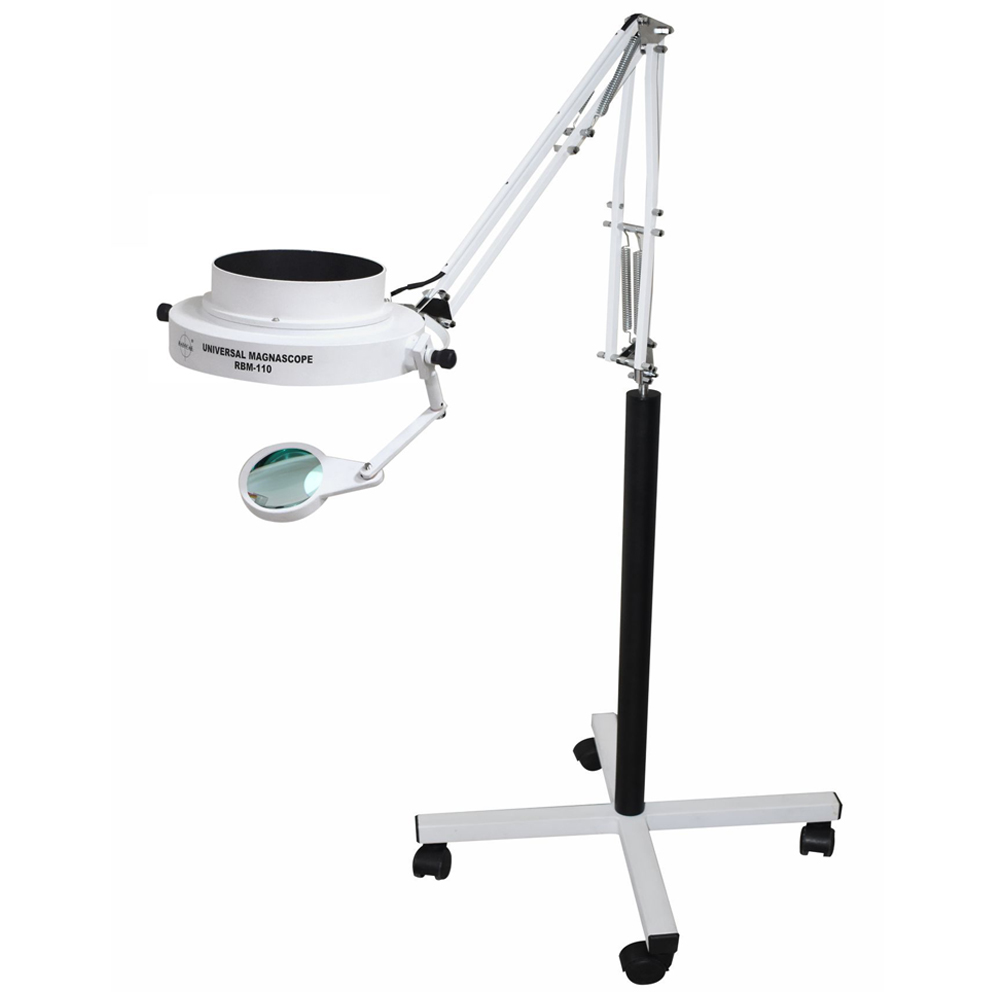

RADICAL' Universal Magnascope Model RBM-110 It is a versatile high-performance illuminated magnification system designed for precision inspection, assembly, quality control and laboratory applications. It is supplied with both a heavy-duty floor stand as well as a table clamp, allowing the user to switch between mobile and fixed mounting options as per the workspace requirements. Sturdy floor stand with a highly flexible balanced arm, it allows effortless positioning of the magnifying lens over large or stationary workpiece without occupying valuable bench space.
Key Features:-

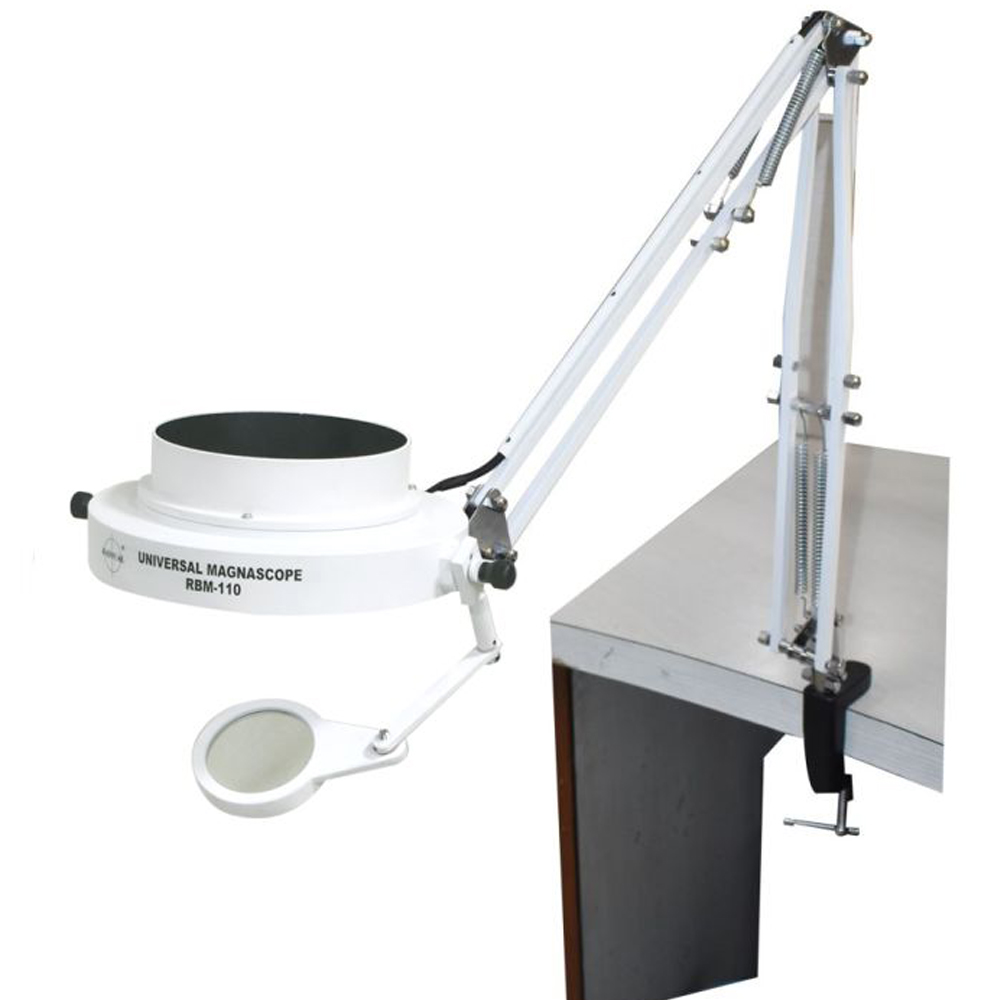

Dual mounting options: Floor Stand and Table Clamp.
Flexible balanced arm for effortless positioning and extended reach.
Large distortion-free optical glass lens for crystal-clear viewing.

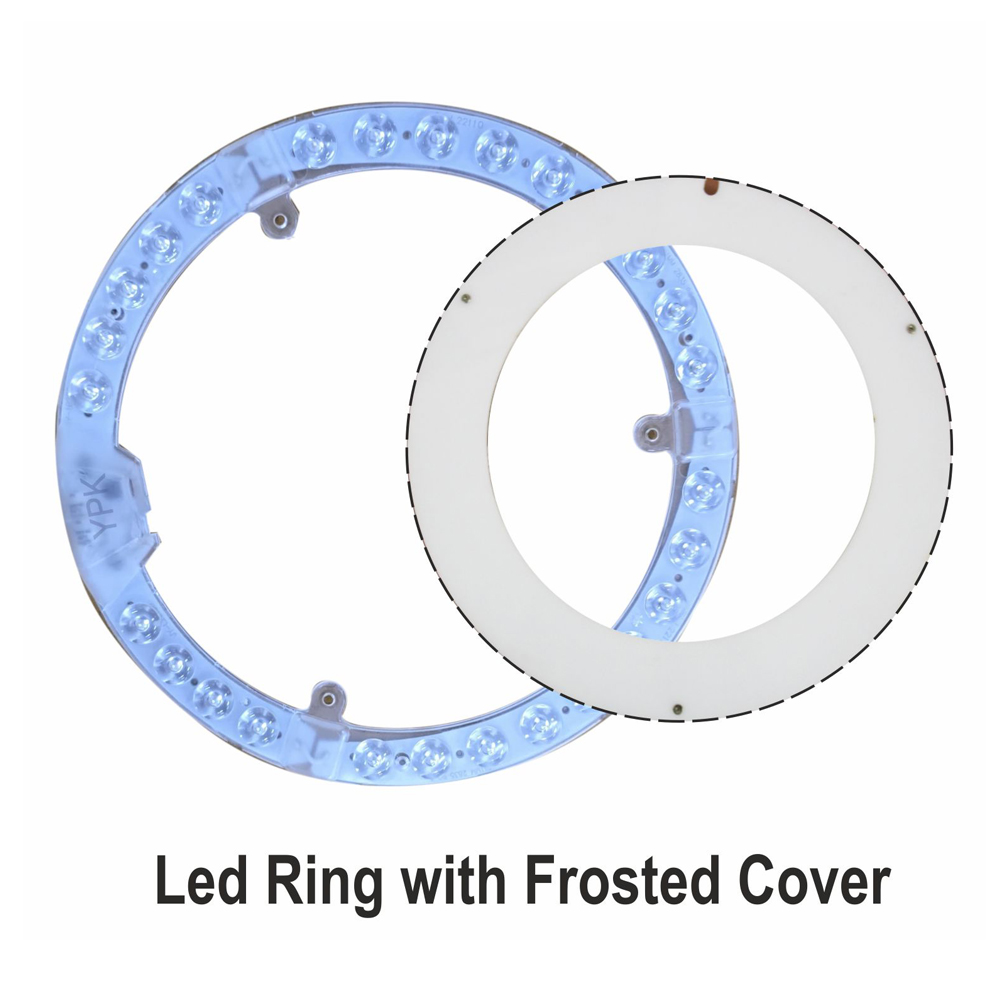

Bright, shadow-free LED illumination for enhanced contrast.
Wide field view with comfortable working distance.

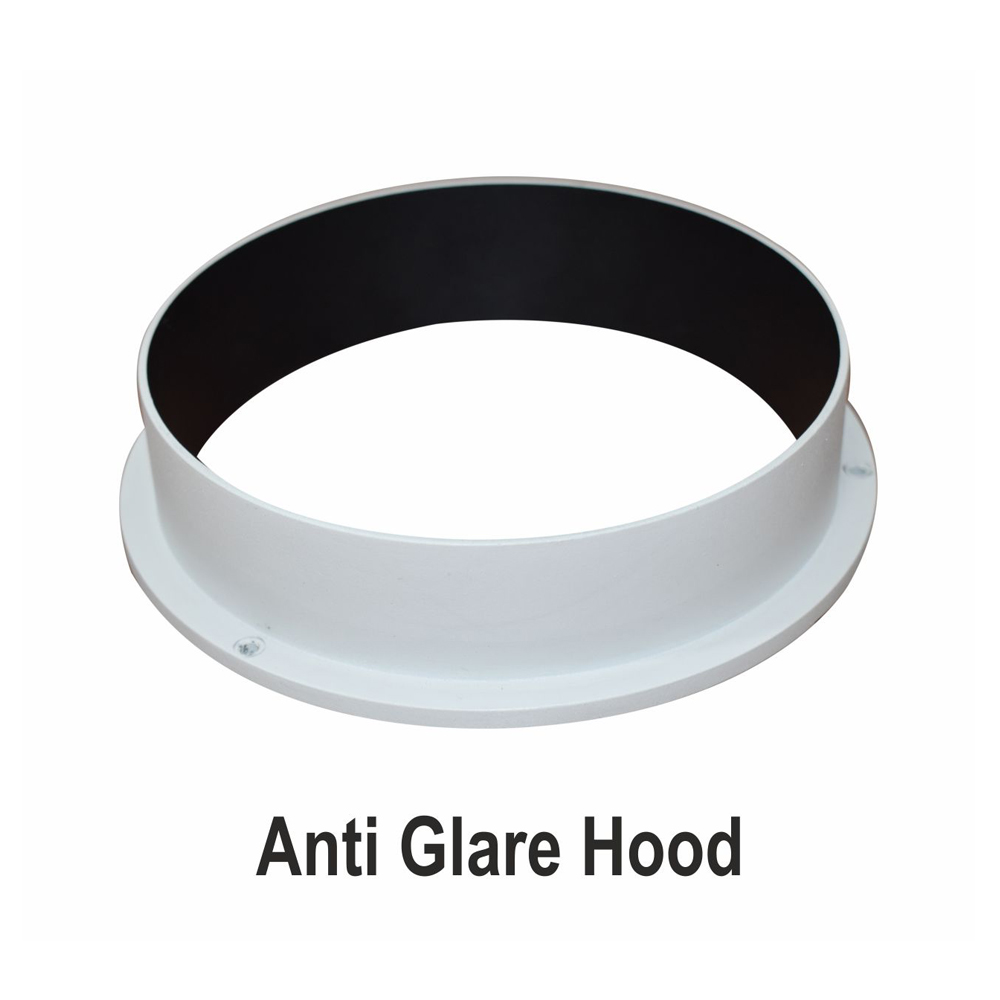

Anti glare hood for eye pitch adjustment and to block unwanted light,
prevent lens glare to improve image quality contrast.
360 lens rotation and adjustable viewing angle.
Ergonomic design minimizes operator fatigue during continuous use.
Rugged construction duly powder-coated finish for long service life.
Suitable for continuous industrial and laboratory use.
Low maintenance with reliable and energy-efficient illumination
APPLICATIONS:-
- Electronics assembly and PCB inspection
- Precision engineering and machining
- Medical and pathology laboratories
- Pharmaceutical manufacturing
- Beauty Salons, Dermatology & Cosmetic Treatment Centres
- Watch and Jewellery Inspection
- Textile and Printing Quality Control
- Educational and Research Laboratories
- Tool Rooms and Maintenance Workshops
- Fine Mechanical Assembly
- General Quality Assurance and Inspection
|
OPTICAL PERFORMANCE :-
The precision optical glass lens provides magnification up to 7x with an optional 2x auxiliary lens, delivering crystal-clear images free of chromatic or spherical aberration, with excellent depth perception and a comfortable working distance.
Robust Construction and DesignBuilt with premium aluminum and brass materials, the RBM-110 is finished in a durable powder-coated texture pearl white. This not only enhances its appearance but also protects against corrosion for long-lasting performance.
Versatile Magnification for Detailed WorkEnjoy standard 3.5x magnification or boost it up to 7x using the auxiliary lens. The device features a large 150mm lens, providing clear, distortion-free viewing for accurate inspections in electronics, jewelry, and more.
Flexible Positioning with Extended ReachThe RBM-110 features a 34-inch arm, allowing for easy adjustments and positioning over large workpieces. Its 15 kg weight ensures the unit remains stable during use, providing precision and reliability in your workspace.
FAQ's of UNIVERSAL MAGNASCOPE RBM-110:
Q: How do I use the RBM-110 Magnascope for maximum magnification?

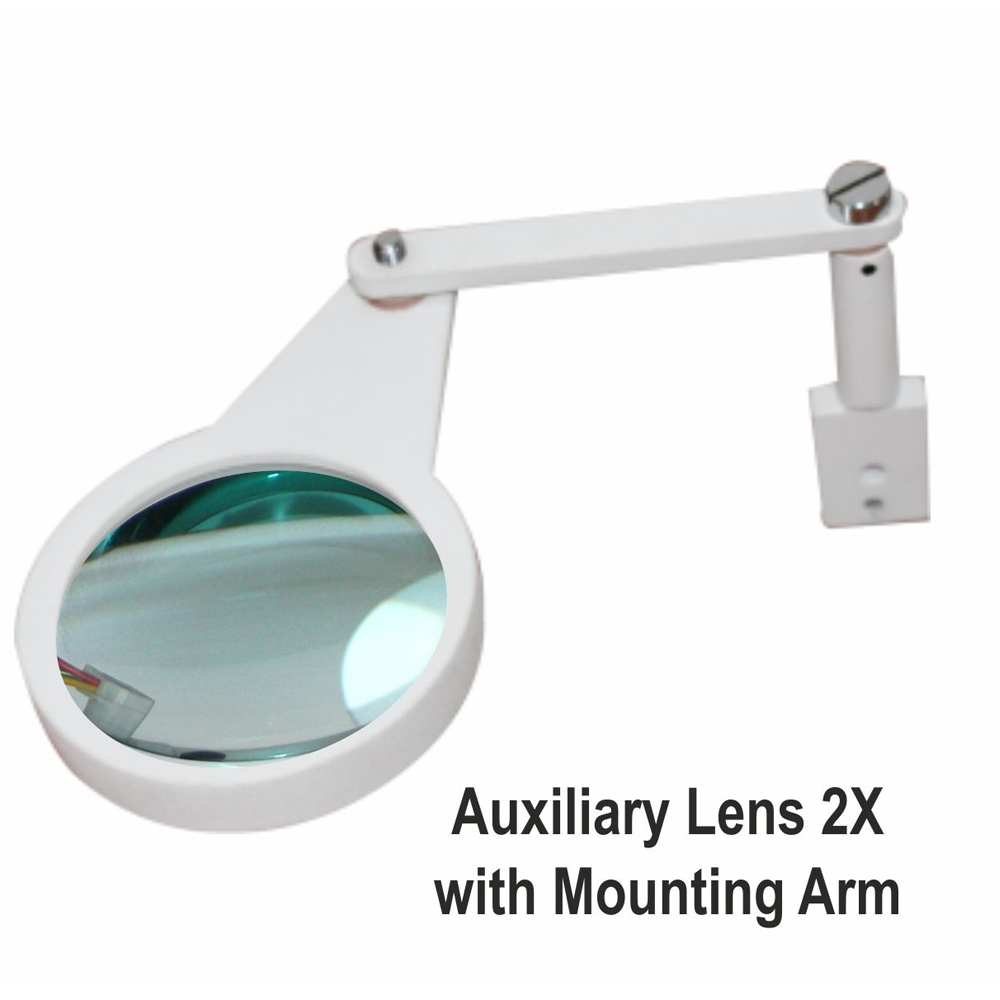

A: To achieve the highest magnification of 7x, simply attach the 2x auxiliary lens to the primary 3.5x lens. This setup is ideal for highly detailed inspections and tasks requiring enhanced clarity.
Q: What materials are used in the construction of the UNIVERSAL MAGNASCOPE RBM-110?
A: The RBM-110 is crafted from high-quality aluminum and brass, both of which are powder coated for added durability and a stylish texture pearl white finish, ensuring longevity and aesthetic appeal.
Q: When is it most beneficial to use this magnascope?
A: The RBM-110 excels during detailed inspection or assembly tasks where precision is critical, such as in electronics assembly, jewelry appraisal, scientific research, or quality control processes.
Q: Where can I purchase the UNIVERSAL MAGNASCOPE RBM-110 in India?
A: This product is available through authorized distributors, exporters, manufacturers, suppliers, and wholesalers throughout India. Please contact official channels for purchase and support.
Q: What is the process for adjusting the arm length and positioning the lens?
A: The RBM-110 features a 34-inch adjustable arm. Gently move or reposition the arm to direct the lens over your workpiece. The stable base and arm design maintain positioning securely during use.
Q: How does using the RBM-110 benefit workflow efficiency?
A: With its strong magnification, large viewing area, and stable positioning, the RBM-110 enables faster, more precise inspections, reducing errors and improving productivity in tasks that demand visual accuracy.
