Product Description

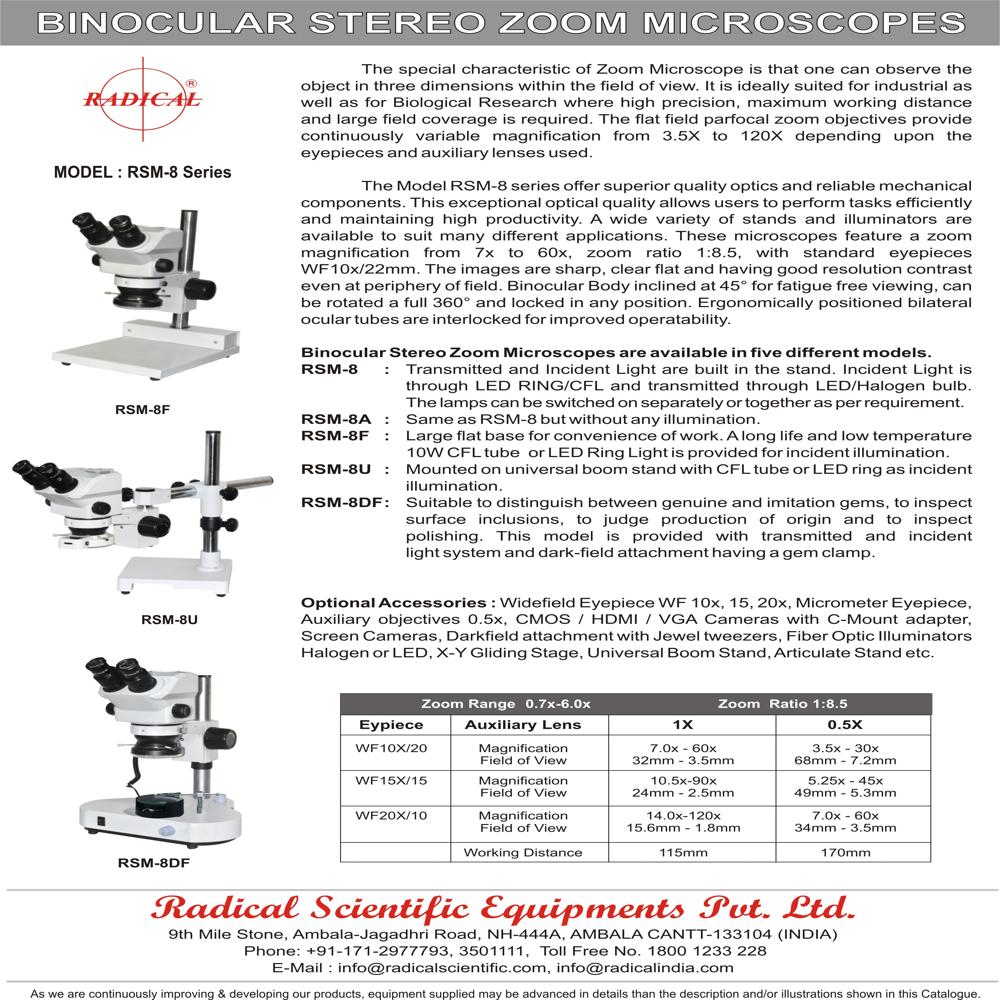

The special characteristic of Zoom Microscope is that one can observe the object in three dimensions within the field of view. It is ideally suited for industrial as well as for Biological Research where high precision, maximum working distance and large field coverage is required. The flat field parfocal zoom objectives provide continuously variable magnification from 3.5X to 120X depending upon the eyepieces and auxiliary lenses used.
The Model RSM-8 series offer superior quality optics and reliable mechanical components. This exceptional optical quality allows users to perform tasks efficiently and maintaining high productivity. A wide variety of stands and illuminators are available to suit many different applications. These microscopes feature a zoom magnification from 7x to 60x, zoom ratio 1:8.5, with standard eyepieces WF10x/22mm. The images are sharp, clear flat and having good resolution contrast even at periphery of field. Binocular Body inclined at 45 for fatigue free viewing, can be rotated a full 360 and locked in any position. Ergonomically positioned bilateral ocular tubes are interlocked for improved operatability.
Binocular Stereo Zoom Microscopes are available in five different models.

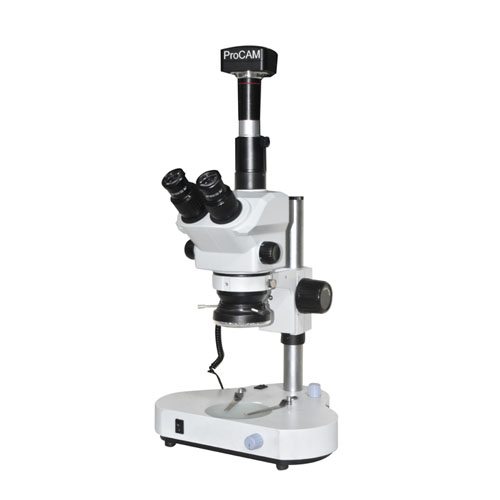

RSM-8 : Transmitted and Incident Light are built in the stand. Incident Light is
through LED RING/CFL and transmitted through LED/Halogen bulb.
The lamps can be switched on separately or together as per requirement.
RSM-8A : Same as RSM-8 but without any illumination.

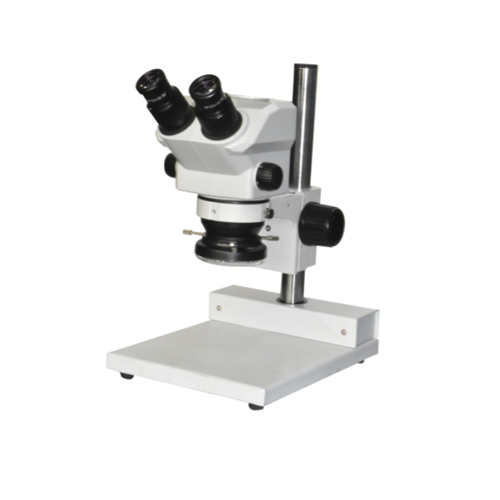

RSM-8F : Large flat base for convenience of work. A long life and low temperature
10W CFL tube or LED Ring Light is provided for incident illumination.

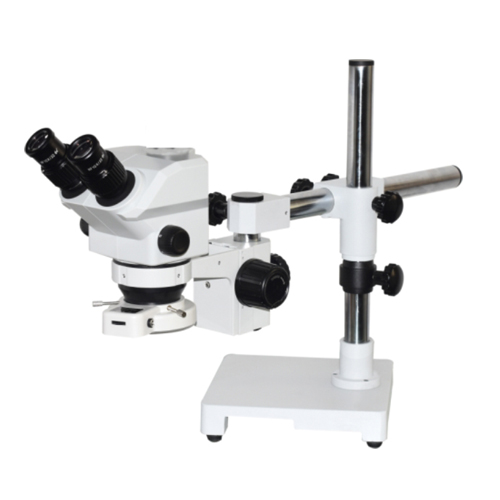

RSM-8U : Mounted on universal boom stand with CFL tube or LED ring as incident
illumination.
RSM-8DF : Suitable to distinguish between genuine and imitation gems, to inspect
surface inclusions, to judge production of origin and to inspect
polishing. This model is provided with transmitted and incident
light system and dark-field attachment having a gem clamp.
Optional Accessories : Widefield Eyepiece WF 10x, 15, 20x, Micrometer Eyepiece, Auxiliary objectives 0.5x, CMOS / HDMI / VGA Cameras with C-Mount adapter, Screen Cameras, Darkfield attachment with Jewel tweezers, Fiber Optic Illuminators Halogen or LED, X-Y Gliding Stage, Universal Boom Stand, Articulate Stand etc.
Precision and Versatility for Diverse Research NeedsEngineered to meet the needs of both industrial and biological research, the RSM-8 Stereo Zoom Microscope combines adjustable magnification with superior resolution. Its robust metal build and high-performance optics make it suitable for examining everything from electronic components to biological specimens.
Dual Illumination Enhances ClarityWith selectable LED or CFL dual illumination, the RSM-8 ensures consistent lighting for diverse samples. This feature supports accurate imaging under varying ambient conditions, making it an excellent choice for applications where precision and detail are critical.
Comfortable, Convenient ObservationThe RSM-8 boasts a binocular drawtube and ergonomic design for extended viewing sessions. The 10X eyepieces and adjustable manual controls provide users with a flexible and user-friendly experience, essential for routine inspections or advanced analysis.
FAQ's of Stereo Zoom Microscope RSM-8:
Q: How do I operate the Stereo Zoom Microscope RSM-8?
A: To operate the RSM-8, turn on the chosen light source (LED or CFL), adjust the magnification between 7X and 45X using the zoom controls, and position your sample on the stage. Use the binocular eyepieces for comfortable, precise observation.
Q: What are the primary applications of this microscope?
A: The RSM-8 is designed for industrial and biological research. Its high-resolution imaging makes it suitable for inspecting electronic components, biological specimens, and fine materials in research facilities and laboratories.
Q: When is dual illumination beneficial during microscopy work?
A: Dual illumination is particularly advantageous when working with samples that require both incident (top) and transmitted (bottom) lighting to reveal different structural details, enhancing contrast and clarity in various research tasks.
Q: Where is this stereo microscope most commonly used?
A: This model is widely used in research laboratories, industrial inspection units, manufacturing quality control departments, and educational settings across India due to its robust construction and versatility.
Q: What is the process for adjusting magnification on the RSM-8?
A: To adjust magnification, simply rotate the zoom control knob to transition smoothly between 7X and 45X. Fine-tune the focus as necessary to achieve a clear, sharp image at the desired magnification level.
Q: Why should I use the RSM-8 microscope for research purposes?
A: The RSM-8 provides high-resolution, stereo imaging with reliable illumination and ergonomic viewing, making it ideal for accurate analyses. Its durability and versatility help streamline observations in demanding research and industrial environments.
Q: What are the benefits of the binocular design in RSM-8?
A: The binocular drawtube offers comfortable, fatigue-free viewing, allowing both eyes to be used simultaneously. This reduces eye strain during extended sessions and improves depth perception for intricate sample analysis.
