Product Description

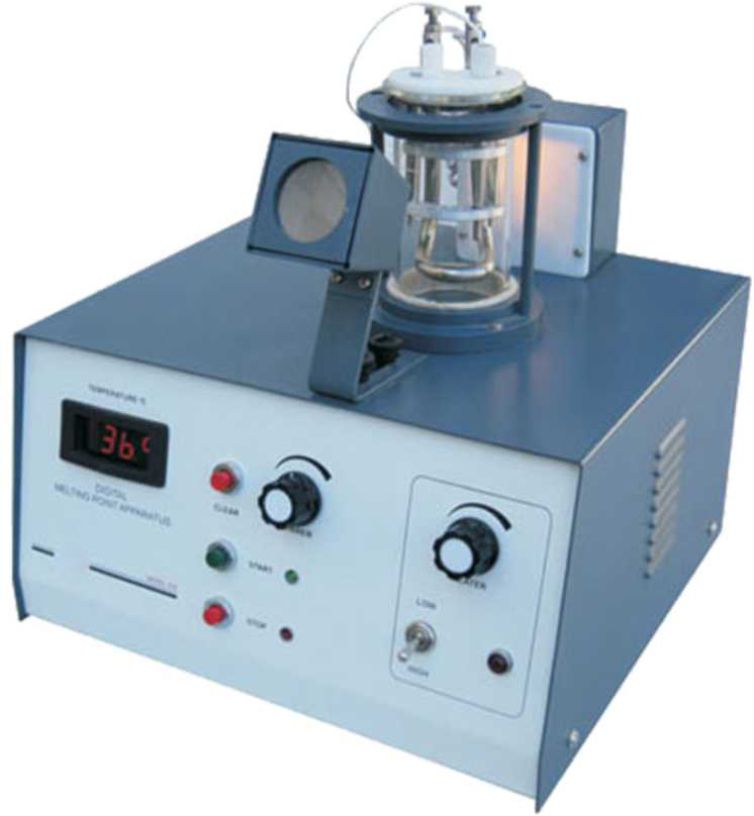

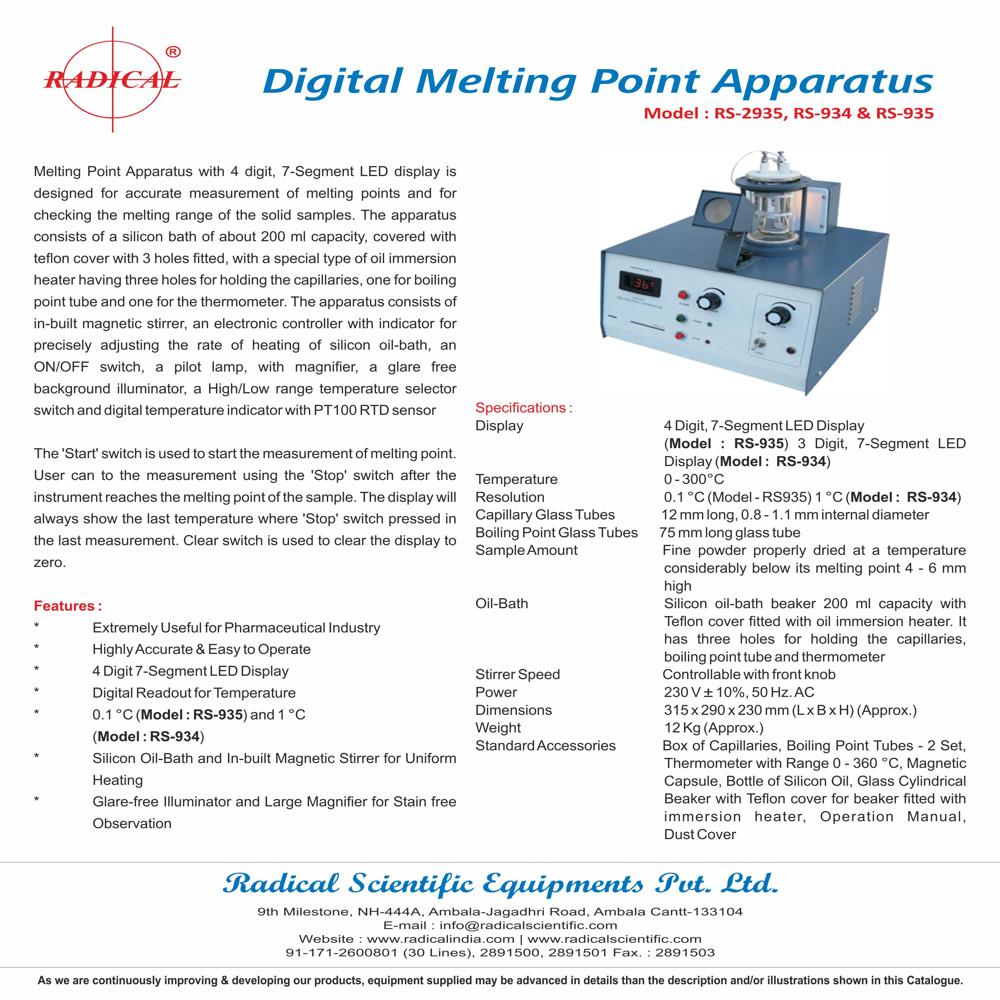

Melting Point Apparatus Model : RS-934 with 4 digit, 7-Segment LED display is designed for accurate measurement of melting points and for checking the melting range of the solid samples. The apparatus consists of a silicon bath of about 200 ml capacity, covered with teflon cover with 3 holes fitted, with a special type of oil immersion heater having three holes for holding the capillaries, one for boiling point tube and one for the thermometer. The apparatus consists of in-built magnetic stirrer, an electronic controller with indicator for precisely adjusting the rate of heating of silicon oil-bath, an ON/OFF switch, a pilot lamp, with magnifier, a glare free background illuminator, a High/Low range temperature selector switch and digital temperature indicator with PT100 RTD sensor
The 'Start' switch is used to start the measurement of melting point. User can to the measurement using the 'Stop' switch after the instrument reaches the melting point of the sample. The display will always show the last temperature where 'Stop' switch pressed in the last measurement. Clear switch is used to clear the display to zero.
Advanced Design for Reliable PerformanceEngineered with SS and MS materials, the RS-934 Melting Point Apparatus promises longevity and reliability. Its robust build protects sensitive components, while a modern LED display delivers clear temperature readings during critical analyses. Ideal for laboratory environments, the design supports both portability and efficient operation.
Wide Temperature Range for Versatile ApplicationsWith a versatile temperature range of 0-300C, this apparatus accommodates various substances and industrial requirements. The RS-934 enables accurate determination of melting points, making it invaluable for researchers, quality controllers, and educators in chemical and material studies.
FAQ's of Melting Point Apparatus RS-934:
Q: How is the RS-934 Melting Point Apparatus operated in a laboratory setting?
A: The RS-934 is operated by connecting to an AC 230 V, 50 Hz power source. Users place the sample in the heating chamber, set the desired temperature via the control interface, and monitor readings on the 4-digit LED display until the melting point is observed.
Q: What materials are used in constructing the RS-934 Melting Point Apparatus?
A: The apparatus is constructed from high-quality stainless steel (SS) and mild steel (MS), ensuring durability, resistance to corrosion, and long service life in laboratory and industrial environments.
Q: Where can the RS-934 Melting Point Apparatus be sourced within India?
A: This model is available through licensed distributors, exporters, manufacturers, suppliers, and wholesalers across India. It can be purchased directly from laboratory equipment providers or their authorized sales channels.
Q: When should the RS-934 be used for melting point analysis?
A: The RS-934 should be used when precise melting point determination is required for samples in research, quality control, education, or industrial applications. Its accuracy facilitates reliable analysis of chemical and material properties.
Q: What is the process for obtaining a melting point using the RS-934 apparatus?
A: After preparing the sample and placing it in the capillary tube, the operator sets the heating rate and desired temperature range. The sample is gradually heated, and the melting point is recorded as displayed on the LED panel during observation.
Q: How does using the RS-934 benefit laboratory work?
A: The RS-934 offers precise, repeatable measurements, user-friendly operation, and reliable performance due to its advanced materials and wide temperature range. These features improve accuracy, efficiency, and safety for laboratory personnel.
