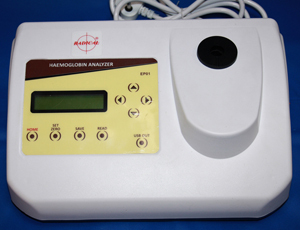

Hemoglobin Analyzer

Product Description

Smart Hemoglobin Analyzer

Salient Features :-

1. BLANK and STANDARD factor storage facility for individual tests.

2. Digital Wavelength Selection with touch membrane switches.

3. Save patient name along with real time and date.

4. 9 digital filters 405nm to 630nm.

5. Latest LED based technology.

6. Graphical Battery Indication.

7. Auto Power shut down mode.

8. Data storage of 1000 tests.

9. Real time USB data logger.

10. User friendly software.

11. Result storage with information like patient name, sample number, date, time, unit, value.

Technical Specificatins :-

Programming Mode : Programming Mode to use any of the 1 end Point Test Factory Programmed : HB

Dual Mode : 1) ABS/TRANS MODE

                  2) Concentration mode with 1 Preprogrammed end point test

Set Zero : By press Push Switch with audio response

Dual Analysis Mode : Alkaline hematite D reagent (576nm) Or Drabkin reagent (520nm)

Reagent : Drabkin or Non hazardous AHD reagent

Display : Alphanumeric 16x2 LCD Display

Memory : Inbuilt 1000 patient memory Storage along with date, time and value.

Calibration : Automatic standard concentration and factor storage for each method.

Unit Selectable: Unit Selection: mg/dl, g/dl, UMOL/l etc.

Wavelength Range : 405 630 nm

Filters : Built-in 9 digital filters.

Filters Wavelenght : 405nm, 430nm, 450nm, 480nm, 510nm, 520nm, 546nm, 576nm, 630nm.

Display Parameters : O.D., %T, Wavelenght, Concentration

Battery Indicator : Graphical Indication

Detector : Silicon photo diode

Accuracy : +-0.01 O.D.

Stability : +-0.02 O.D. per hour

Light Source : Highly accurate LED source

Volume : 1 ml minimum

Dimension : LxBxH (Approx.)

Weight : 1 kgs (Approx.)

Power : 230 V+- 10% AC, 50 Hz

Battery Backup : 7.2 V Li-ion Re-Chargeable Battery

Accessories : Set of test tube 5 Nos.

                    Test tube holder 1 No.
