Product Description

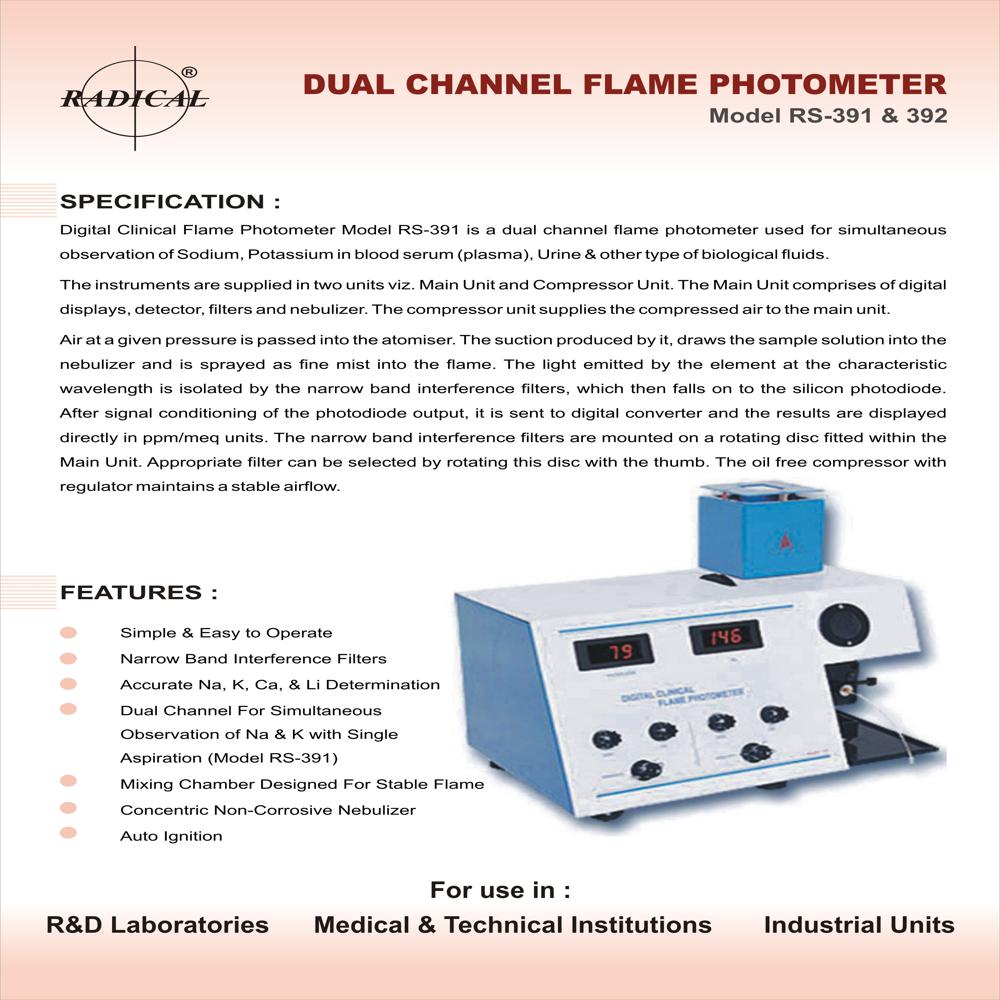

Digital Clinical Flame Photometer Model RS-391 is a dual channel flame photometer used for simultaneous observation of Sodium, Potassium in blood serum (plasma), Urine & other type of biological fluids.
The instruments are supplied in two units viz. Main Unit and Compressor Unit. The Main Unit comprises of digital displays, detector, filters and nebulizer. The compressor unit supplies the compressed air to the main unit.
Air at a given pressure is passed into the atomizer. The suction produced by it, draws the sample solution into the nebulizer and is sprayed as fine mist into the flame. The light emitted by the element at the characteristic wavelength is isolated by the narrow band interference filters, which then falls on to the silicon photodiode.
After signal conditioning of the photodiode output, it is sent to digital converter and the results are displayed directly in ppm/meq units. The narrow band interference filters are mounted on a rotating disc fitted within the Main Unit. Appropriate filter can be selected by rotating this disc with the thumb. The oil free compressor with regulator maintains a stable airflow.
Advanced Measurement TechnologyWith its dual channel design, the RS-391 enables the simultaneous detection of sodium and potassium, streamlining the analytic process in clinical laboratories. The mildly steel construction enhances durability, while the LED digital display ensures clarity during measurement procedures.
Manual Operation for Precise ControlUsers benefit from manual operation, allowing customized handling and meticulous oversight during analysis. This manual classification ensures users can adjust processes in real time for optimized performance.
FAQ's of Dual Channel Flame Photometer RS-391:
Q: How does the Dual Channel Flame Photometer RS-391 operate during measurement?
A: The RS-391 functions using manual controls, allowing operators to adjust settings and sample flow. Its flame photometry technology enables accurate simultaneous detection of sodium and potassium in clinical blood serum samples.
Q: What materials are used in the construction of the RS-391?
A: The RS-391 is constructed from mild steel, offering durability and stability. Its off white finish is designed for clinical environments, complementing the LED digital display for user-friendly operation.
Q: When should the RS-391 be used in clinical laboratories?
A: This instrument is ideal for clinical laboratories when precise and rapid measurement of sodium and potassium in blood serum is required, particularly in routine health screenings and emergency diagnostic situations.
Q: Where can the RS-391 be sourced in India?
A: The Dual Channel Flame Photometer RS-391 is available through distributors, exporters, manufacturers, suppliers, and wholesalers across India, making it accessible for various clinical and laboratory requirements.
Q: What is the process for measuring sodium and potassium with this photometer?
A: Users introduce the blood serum sample manually. The RS-391 uses flame photometry to analyze sodium and potassium concentrations, displaying results on the LED digital screen for immediate interpretation.
Q: Why is the dual channel feature beneficial for laboratory usage?
A: The dual channel design allows simultaneous measurement of two analytes, saving time and increasing productivity. This efficiency is especially advantageous in high-throughput clinical environments.
