Product Description

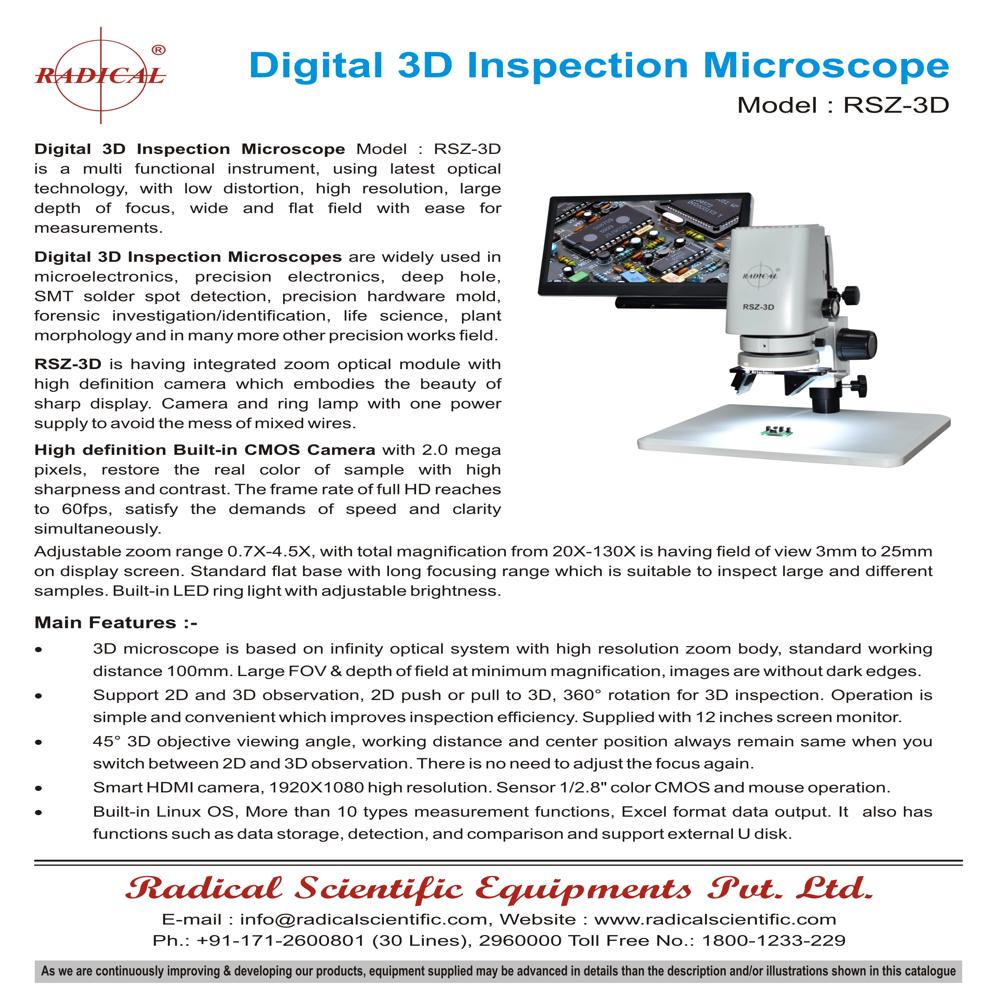

3D DigitalInspection Microscope Model RSZ-3D
Digital 3D Inspection Microscope Model: RSZ-3D is amultifunctional instrument, using latest optical technology, with lowdistortion, high resolution, large depth of focus, wide and flat field with easyfor measurements.
Digital 3D Inspection Microscopes are widely used inmicroelectronics, precision electronics, deep hole, SMT solder spot detection,precision hardware mold, forensic investigation/identification, life science,plant morphology and in many more other precision works field.
RSZ-3D is having integrated zoomoptical module with high definition camera which embodies the beauty of sharp display.Camera and ring lamp with one power supply to avoid the mess of mixed wires.
High definition Built-in CMOS Camera with 2.0 mega pixels, restorethe real color of sample with high sharpness and contrast. The frame rate offull HD reaches to 60fps, satisfy the demand of speed and claritysimultaneously.
Adjustablezoom lens 0.7X-4.5X, magnification from 20X-130X is having field of view 3mm to25mm on display screen. Standard flat base with long focusing range which is suitableto inspect large and different samples. Built-in LED ring light with adjustablebrightness.
Main Feature:
3Dmicroscope is based on infinity optical system with high resolution zoom body, standardworking distance 100mm. Large FOV & depth of field at minimummagnification, images are without dark edges.
Support2D and 3D observation, 2D push or pull to 3D, 360 rotation for 3D inspection.Operation is simple and convenient which improves inspection efficiency.Supplied with 12 inches screen monitor.
453D objective viewing angle, working distance and center position always remainsame when you switch between 2D and 3D observation. There is no need to adjustthe focus again.
SmartHDMI camera, 1920X1080 high resolution. Sensor 1/2.8 color CMOS and mouseoperation.
Built-inLinux OS, More than 10 types measurement functions, Excel format data output.It also has functions such as data storage, detection, and comparison andsupport external U disk.
Advanced Imaging ClarityExperience unparalleled clarity with 1920x1080 high resolution, capturing even the subtlest details in microelectronics and plant morphology. The microscope's LED illumination ensures consistent lighting for accurate inspections and documentation. This high-definition capability supports forensic identification, life science research, and industrial quality control.
Versatile ApplicationsThe RSZ-3D is engineered for a wide array of inspection needs: from deep hole analysis in precision hardware molds to SMT solder spot detection and forensic investigation. It offers magnification of 20X-130X, making it adaptable to various sample sizes and complexities, benefiting manufacturers, suppliers, and researchers alike.
Seamless Digital IntegrationFeaturing USB and HDMI interfaces, the RSZ-3D microscope is designed for straightforward connectivity and real-time image transfer. Recorded images can be saved in JPEG format for efficient documentation or further analysis, promoting a streamlined process in laboratories and production facilities.
FAQ's of Digital 3D Inspection Microscope RSZ-3D:
Q: How does the RSZ-3D microscope assist in SMT solder spot detection?
A: Its high-resolution imaging (1920x1080 pixels) and adjustable magnification (20X-130X) enable users to precisely identify solder spot defects and quality issues in SMT components, improving inspection efficiency and product reliability.
Q: What materials is the RSZ-3D microscope constructed from?
A: This model features a robust construction using metal sheet and die-cast materials, ensuring long-lasting durability suitable for industrial, laboratory, and forensic environments.
Q: When should I use the RSZ-3D microscope's LED illumination?
A: LED illumination should be employed during inspections where consistent and bright lighting is required-such as examining deep holes or minute components-ensuring optimal visibility and accurate analysis.
Q: Where is the microscope compatible for use in India?
A: The RSZ-3D microscope is suitable for use in manufacturing plants, research labs, forensic departments, and educational institutions across India, provided a 220 Volt power supply is available.
Q: What benefits does USB and HDMI connectivity offer?
A: USB and HDMI interfaces enable seamless connection to computers, monitors, or recording devices for live viewing, image capturing in JPEG format, and simplifying data sharing for documentation or collaborative review.
Q: How can the RSZ-3D microscope be used in forensic investigation?
A: Its precise imaging and magnification make it ideal for forensic analysis by allowing examiners to closely investigate physical evidence, identify minute traces, and accurately document findings for official reports.
